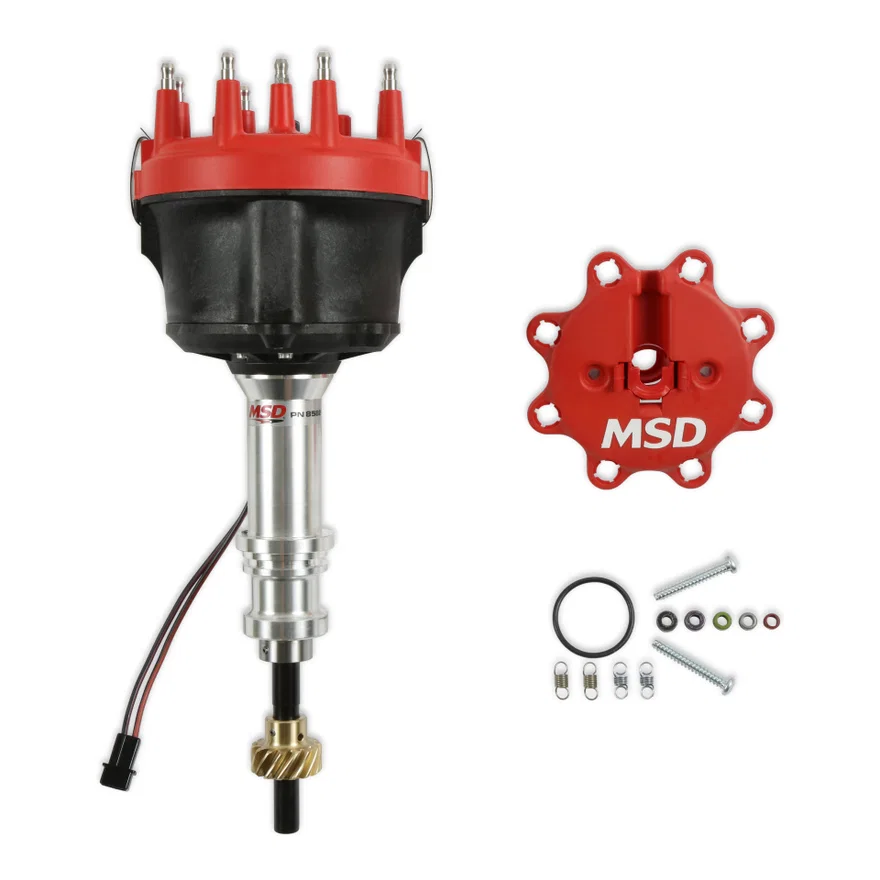

MSD Billet Distributor - Ford - Small Block V8 - Bronze Gear
Part # 85827SKU MSD85827
Universal fit
| Brand | MSD |
|---|---|
| Part type | Distributor |
| Brand | MSD |
| Category | Ignition |
| Color | Red and Black |
| Distributor Cap Included | Yes |
| Distributor Type | Magnetic Pickup |
| Emission Code | 3 |
| Engine Make | Ford |
| Gear | Bronze |
| Gear Material | Bronze |
| Grade Type | Performance |
| Height | 8.4375 in |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| part type | Distributor |
| Product Type | Distributor |
| Quantity | 1 |
| Sub Category | Distributor and Magneto |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00090127132593 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Must be used with an MSD Ignition Control
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Gear machined from AMPCO 45 aluminum bronze containing 5% Nickel
- CNC machined billet 6061-T6 aluminum housing
- Nylon pads ensure smooth operation of the advance weights
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Pre-installed Bronze Gear for aftermarket billet roller camshafts
- Advance weight pins are staked and TIG welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
