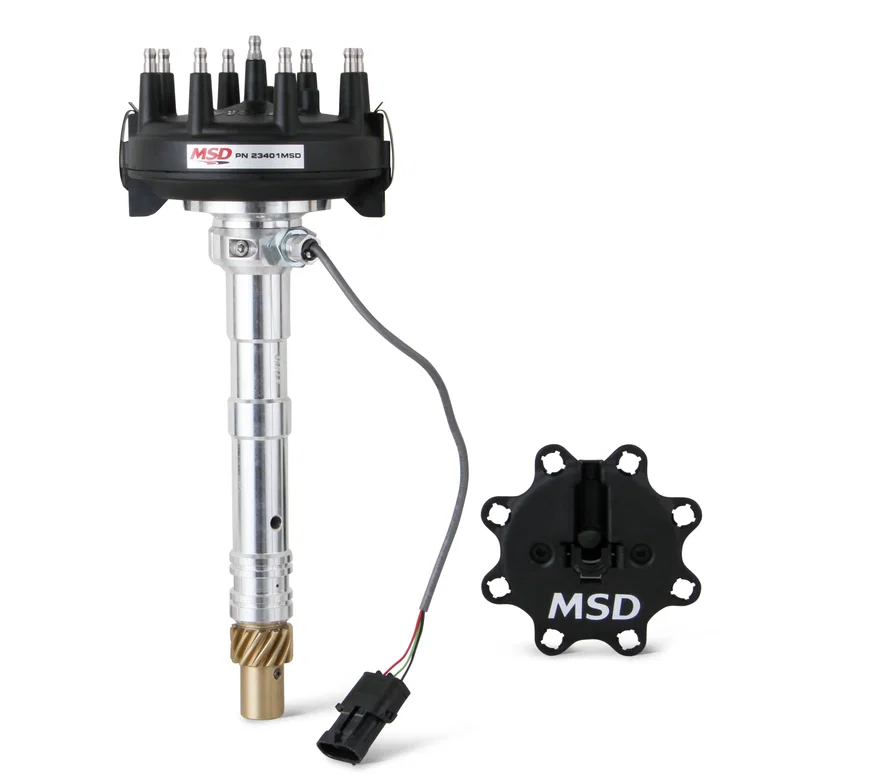

MSD Chevy Crank Trigger Distributor with adjustable Cam Sync Pick-up
Part # 23401MSDSKU MSD23401MSD
Universal fit
| Brand | MSD |
|---|---|
| Part type | Distributor |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Distributor Cap Included | Yes |
| Distributor Type | Crank Trigger |
| Emission Code | 4 |
| Engine | Chevy Small and Big Block |
| Gear | Bronze |
| Gear Material | Bronze |
| Grade Type | Performance |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| part type | Distributor |
| Product Type | Distributor |
| Sub Category | Distributor and Magneto |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132234011 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Must be used with MSD Crank Trigger and MSD Ignition
- Shaft is guided by a sealed ball bearing and an extra-long sintered bushing
- CNC machined billet aluminum housing
- Oversized polished steel shaft with a QPQ coating for friction reduction
- Supplied with large diameter HEI style distributor cap and rotor
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Supplied with Bronze distributor gear, PN 8471
- Hall-Effect sensor accepts 5-18 Volts continuous input
- Adjustable slip collar for tall deck race engines
