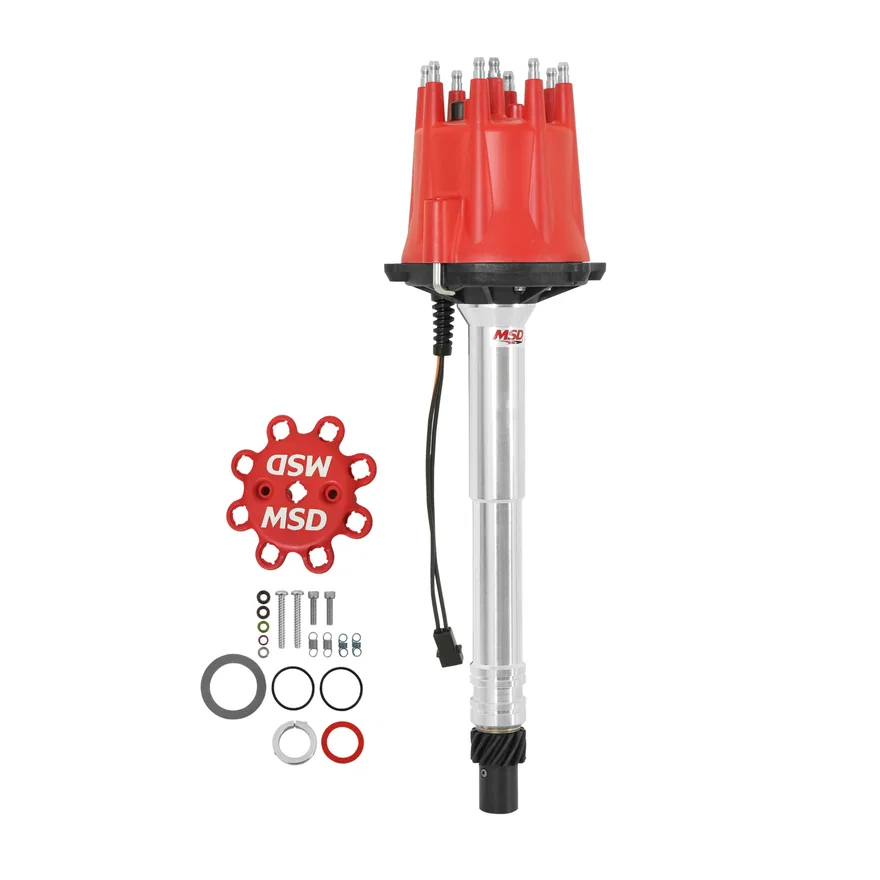

MSD Chevy Extra Tall Slip Collar Pro-Billet Distributor
Part # 8547SKU MSD8547
Universal fit
| Brand | MSD |
|---|---|
| Part type | Distributor |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Distributor Cap Included | Yes |
| Distributor Type | Magnetic Pickup |
| Emission Code | 3 |
| Gear Material | Cast Iron Melonized QPQ Coated |
| Grade Type | Performance |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| part type | Distributor |
| Product Type | Distributor |
| Sub Category | Distributor and Magneto |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132085477 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- O-ring seals can be added to modified blocks to improve oil pressure control
- Advance weight pins are staked and tig welded to the plate
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- Must be used with an MSD Ignition Control
- Nylon pads ensure smooth operation of the advance weights
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- CNC machined billet aluminum housing and Dupont Rynite base
- No CARB Exemption Order Number
- Extra tall housing is designed for use with Alan Root, Donovan, Merlin and Rocket racing blocks
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing
- Special oil tract improves lubrication to the distributor and cam gear
- Adjustable slip collar mounting flange provides up to 3” of adjustment
Description
Designed for racing blocks with maximum increased deck height such as Alan Root, Merlin and Rocket Blocks. MSD offers this Distributor with an adjustable slip collar with nearly 3" of adjustment so you can be sure the distributor is installed correctly.
