| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Oil-Filled |
| Coil Shape | Round |
| Coil Type | Remote Mount Canister |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Finish | Semi-Gloss |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Maximum Diameter | 2.15 in |
| Maximum Voltage | 45000 |
| Mount Type | Circular Bracket |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Position | Vertical |
| Overall Height | 6 in |
| Primary Inductance | 2.5 |
| Primary Resistance | 0.32 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 7000 Ohms |
| Turns Ratio | 110:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342531843 |
- 45,000 volts.
- Ultra Low 0.32 primary resistance.
- Compatible with the Ignitor III and most capacitive discharge boxes.
- Charges to peak current typically 30-70% faster than other coils.
- Rapid charge time means maximum spark energy is sustained to higher engine RPM.
Description

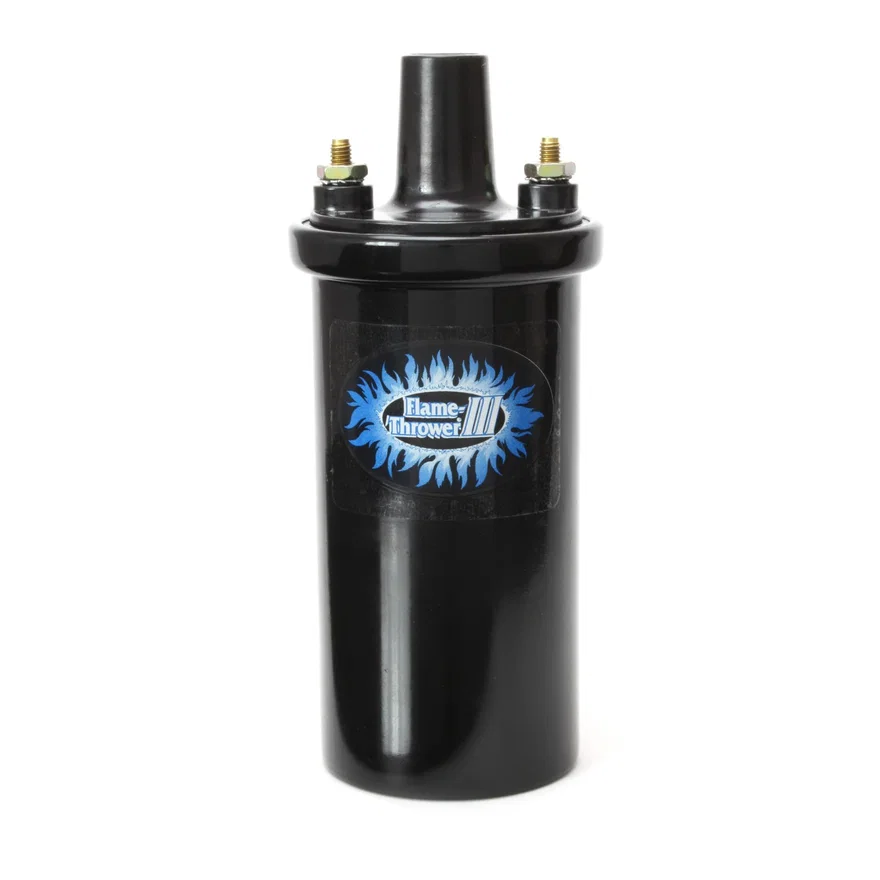

Flame Thrower III coils feature an ultra low resistance and are designed specifically for the Ignitor III Electronic Ignition Conversion kits. They feature a high turn ratio and ultra-low primary resistance enabling the ignition system to charge faster at high RPM's.
