| Brand | MSD |
|---|---|
| Part type | Engine Ignition RPM Governor |
| Brand | MSD |
| C.A.R.B EO # | D-115-21 |
| Category | Ignition |
| Color | Red |
| Current Draw | 1000 |
| Emission Code | 1 |
| Maximum RPM | 12,500 |
| part type | Engine Ignition RPM Governor |
| Primary Voltage | 535 |
| Product Type | Digital Programmable 6AL-2 |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 |
| Sub Category | Secondary Ignition |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3 lbs., 7L x 4W x 2H |
| UPC / GTIN | 00085132065301 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 12-18 Volts, Negative Ground
- .7 Amp per 1,000 RPM
- PC Programmable with easy-to-use Windows based Pro-Data +Software
- Programmable 3-Step Rev Limiter (100 RPM increments)
- EO # D-115-21
- Capacitive Discharge technology for fast rise time and maximum spark energy
- Advanced features allow for use in street and racing applications
- Step retard for nitrous applications plus a boost timing map
- Plot a boost timing map with 0.1° per psi accuracy
- 12,500 RPM with 14.4 Volts
Description

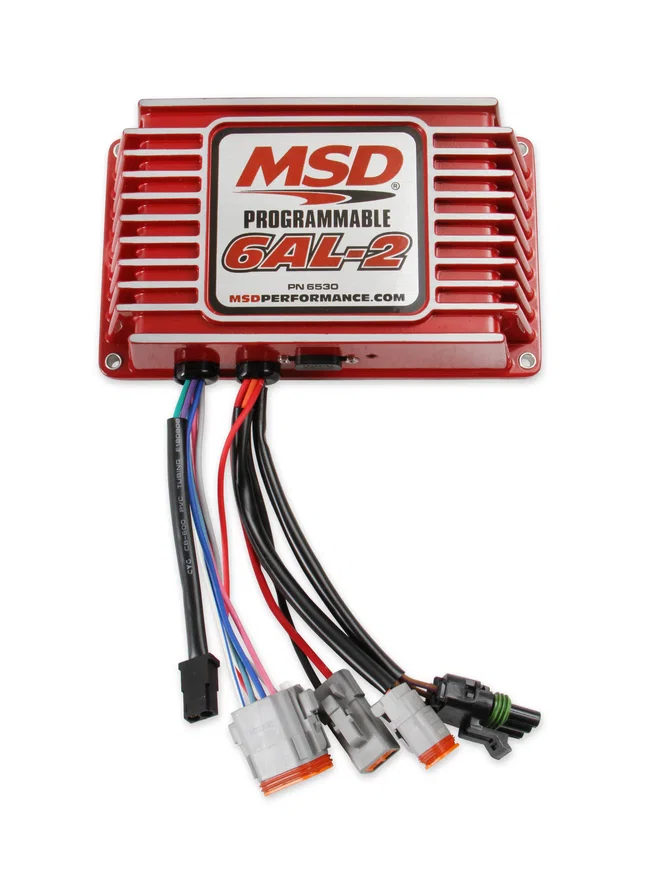

The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines!
