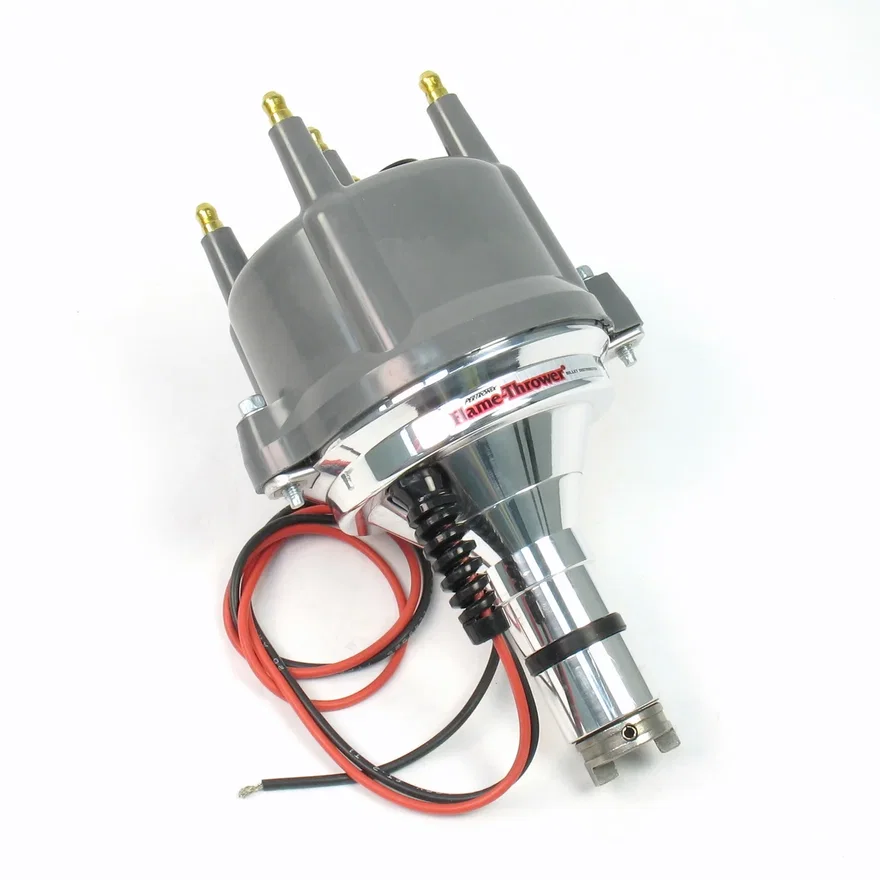

Pertronix Dist Billet I3 VW Type 1 Eng, gray cap
Part # D7180813SKU PERD7180813
Set your vehicle above for a fit verdict. 4 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Distributor |
| Adjustable Collar | No |
| Advance Type | Vacuum and mechanical |
| Cap Color | Grey |
| Cap Diameter | 4.625 in |
| Cap Terminal Gender | Male |
| Clamp Hardware Included | No |
| Clamp Included | No |
| Coil Wire Included | No |
| Computer Controlled Compatible | No |
| Connector Type | Unsealed |
| Distributor Cap Included | Yes |
| Distributor Gear Included | Yes |
| EmissionFullDES | 3 - This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use. |
| Gear Material | Steel |
| Grade Type | Performance |
| Housing Color | Natural |
| Housing Finish | Polished |
| Housing Material | Aluminum |
| Ignition Box Required | No |
| Ignition Coil Included | No |
| Ignition Module Included | Yes |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tach Drive Provision | No |
| Quantity | Sold individually. |
| Shaft Color | Natural |
| Shaft Diameter | 0.5 in |
| Shaft Material | Steel |
| Trigger Type | Hall Effect |
| UPC / GTIN | 00694342541293 |
- Plug n' Play billet distributors are designed for maximum ignition performance at a price you can afford
- Our Billet I3 distributors ship with Ignitor III multi-spark rev limiting modules.
- Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
- Each billet distributor is hand polished and buffed to a high luster Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
- Adjustable mechanical advance with proprietary limiting function permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance.
Description
Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.
More from Pertronix
| D120700 | $603.99 |
| D151700 | $609.99 |
| D7100810 | $679.99 |
| D134630 | $482.99 |
| D151810 | $679.99 |
| D101811 | $652.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1961 - 1965 | Volkswagen | Beetle | 1.2L 73 H4 |
| 1966 | Volkswagen | Beetle | 1.2L 73 H4, 1.3L 78 H4 |
| 1967 - 1969 | Volkswagen | Beetle | 1.5L 92 H4 |
| 1970 - 1979 | Volkswagen | Beetle | 1.6L 97 H4 |
