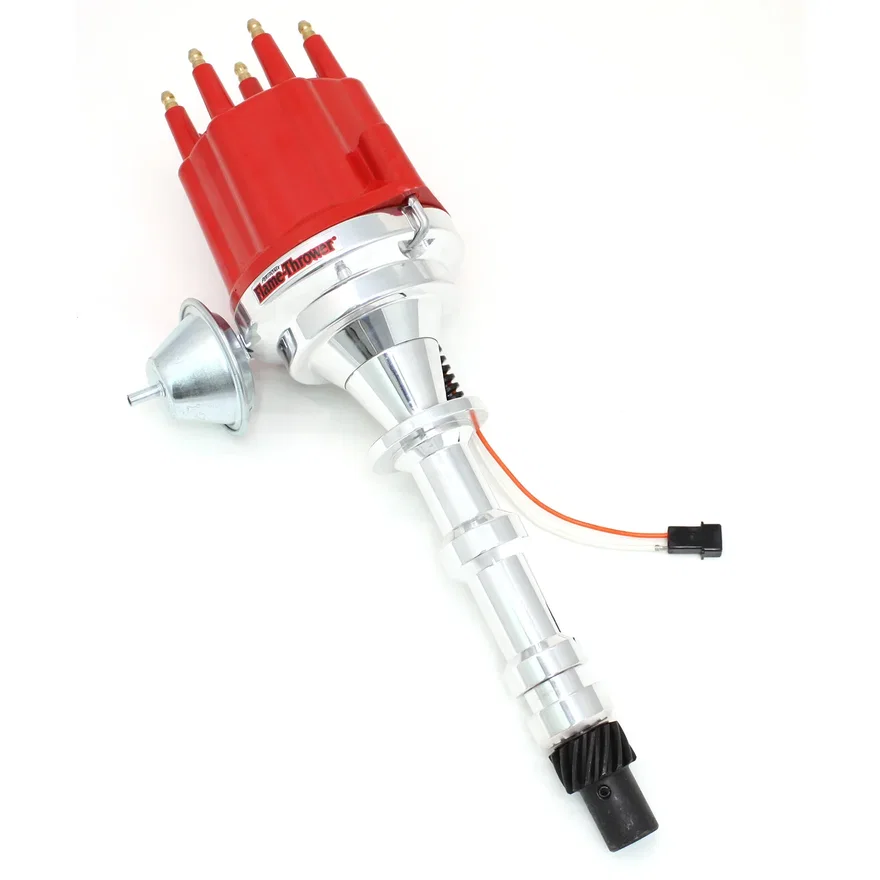

Pertronix Dist Billet Mag Trig Chevy 348-409 Red Male cap Vac Adv
Part # D301711SKU PERD301711
Set your vehicle above for a fit verdict. 25 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Distributor |
| Adjustable Collar | No |
| Advance Type | Vacuum and mechanical |
| Cap Color | Red |
| Cap Diameter | 5 in |
| Cap Terminal Gender | Male |
| Clamp Hardware Included | No |
| Clamp Included | No |
| Coil Wire Included | No |
| Computer Controlled Compatible | No |
| Connector Type | Unsealed |
| Distributor Cap Included | Yes |
| Distributor Gear Included | Yes |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Gear Material | Steel |
| Grade Type | Performance |
| Housing Color | Natural |
| Housing Finish | Polished |
| Housing Material | Aluminum |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Module Included | Yes |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tach Drive Provision | No |
| Quantity | Sold individually. |
| Rotor Rotation | Clockwise (Right) |
| Shaft Color | Natural |
| Shaft Diameter | 0.5 in |
| Shaft Material | Steel |
| Trigger Type | Magnetic |
| UPC / GTIN | 00694342551537 |
- Precision magnetic pickup coil and reluctor offer extremely accurate signaling at low and high RPM.
- Specially engineered reluctor made from lightweight FC-0208 alloy offers superior dimensional stability for symmetrical spark separation.
- Overmolded magnetic pickup coil supports windings while providing excellent resistance to corrosion.
- Easy wiring with standard Tyco Mate-N-Lok? connector works with most ignition system harnesses.
- Compatible with most capacitive discharge ignition boxes.
Description
Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.
More from Pertronix
| D120700 | $603.99 |
| D151700 | $609.99 |
| D7100810 | $679.99 |
| D134630 | $482.99 |
| D151810 | $679.99 |
| D101811 | $652.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1958 - 1960 | Chevrolet | Bel Air | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | Bel Air | Base | 5.7L 348 V8, 6.7L 409 V8 |
| 1962 - 1965 | Chevrolet | Bel Air | Base | 6.7L 409 V8 |
| 1958 - 1959 | Chevrolet | Biscayne | Base | 5.7L 348 V8 |
| 1960 | Chevrolet | Biscayne | Base, Fleetmaster | 5.7L 348 V8 |
| 1961 | Chevrolet | Biscayne | Base | 5.7L 348 V8, 6.7L 409 V8 |
| 1962 - 1965 | Chevrolet | Biscayne | Base | 6.7L 409 V8 |
| 1961 | Chevrolet | C10 Pickup | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | C20 Pickup | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | C30 Pickup | Base | 5.7L 348 V8 |
| 1958 | Chevrolet | Del Ray | Base | 5.7L 348 V8 |
| 1959 - 1960 | Chevrolet | El Camino | Base | 5.7L 348 V8 |
| 1959 - 1960 | Chevrolet | Impala | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | Impala | Base | 5.7L 348 V8, 6.7L 409 V8 |
| 1962 - 1963 | Chevrolet | Impala | Base | 6.7L 409 V8 |
| 1964 - 1965 | Chevrolet | Impala | Base, SS | 6.7L 409 V8 |
| 1961 | Chevrolet | K10 Pickup | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | K20 Pickup | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | P20 Series | Base | 5.7L 348 V8 |
| 1961 | Chevrolet | P30 Series | Base | 5.7L 348 V8 |
| 1962 | Chevrolet | P30 Series | Base | 5.7L 348 V8, 6.7L 409 V8 |
| 1964 - 1965 | Chevrolet | P30 Series | Base | 5.7L 348 V8, 6.7L 409 V8 |
| 1961 | Chevrolet | Suburban | Base | 5.7L 348 V8 |
| 1958 | Chevrolet | Truck | Base | 5.7L 348 V8 |
| 1960 | Chevrolet | Truck | Base | 5.7L 348 V8 |
