PertronixMore from Pertronix

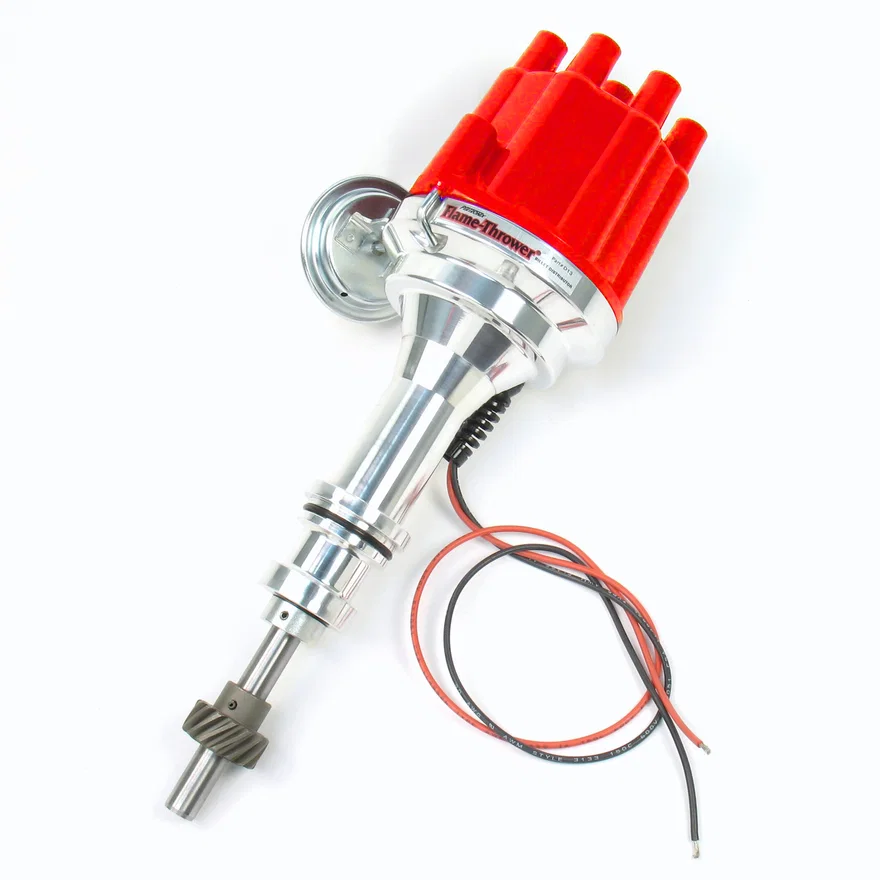

Pertronix Dist Billet Ford SB red cap

Part # D130701SKU PERD130701

Set your vehicle above for a fit verdict. 95 vehicles listed below.

Specifications
BrandPertronix
Part typeDistributor
Adjustable CollarNo
Advance TypeVacuum and mechanical
Cap ColorRed
Cap Diameter5 in
Cap Terminal GenderFemale
Clamp Hardware IncludedNo
Clamp IncludedNo
Coil Wire IncludedNo
Computer Controlled CompatibleNo
Connector TypeUnsealed
Distributor Cap IncludedYes
EmissionFullDES1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Gear MaterialSteel
Grade TypePerformance
Housing ColorNatural
Housing FinishPolished
Housing MaterialAluminum
Ignition Box RequiredNo
Ignition Coil IncludedNo
Ignition Module IncludedYes
Ignition Rotor IncludedYes
Marine ApprovedNo
Mechanical Tach Drive ProvisionNo
QuantitySold individually.
Rotor RotationCounterclockwise (Left)
Shaft ColorNatural
Shaft Diameter0.5 in
Shaft MaterialSteel
Trigger TypeHall Effect
UPC / GTIN00694342012588
  • Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.
  • Our Billet distributors ship with Ignitor II modules factory installed.
  • Each billet distributor is hand polished and buffed to a high luster.
  • Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
  • Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and provide shaft and advance mechanism stability reducing high RPM vibration.

Description

Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.

D120700Dist Billet Pontiac V8 Vac Blk Cap$603.99
D151700Dist Billet Buick V8 215-350 Vac Blk Cap$609.99
D7100810Dist Billet I3 Chevy Non/Vac blk Male cap$679.99
D134630Dist Cast Ford FE blk cap$482.99
D151810Dist Billet Buick V8 215-350 Non/Vac Blk Male Cap$679.99
D101811Dist Billet Chevy 409 Non/Vac Red Male Cap$652.99

Fits these vehicles 95

YearMakeModelSubmodelEngine
1975 - 1978FordB-100Base5.0L 302 V8
1968FordBroncoBase, Roadster, Wagon4.7L 289 V8, 5.0L 302 V8
1969FordBroncoBase, Roadster, Wagon5.0L 302 V8
1970 - 1973FordBroncoBase, Wagon5.0L 302 V8
1974FordBroncoBase5.0L 302 V8
1975FordBroncoCustom, Northland, Ranger, Sport5.0L 302 V8
1976 - 1977FordBroncoCustom, Sport5.0L 302 V8
1962FordCountry SedanBase3.6L 221 V8, 4.3L 260 V8
1963FordCountry SedanBase3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8
1968 - 1974FordCountry SedanBase5.0L 302 V8
1962FordCountry SquireBase3.6L 221 V8, 4.3L 260 V8
1963FordCountry SquireBase3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8
1968 - 1974FordCountry SquireBase5.0L 302 V8
1968 - 1972FordCustomBase5.0L 302 V8
1968 - 1974FordCustom 500Base5.0L 302 V8
1969 - 1974FordE-100 EconolineBase, Club Wagon5.0L 302 V8
1975FordE-100 EconolineBase, Chateau, Custom, Northland5.0L 302 V8
1975FordE-150 EconolineBase, Chateau, Custom, Northland5.0L 302 V8
1969FordE-200 EconolineBase, Club Wagon5.0L 302 V8
1970FordE-200 EconolineBase, Club Wagon, Custom Wagon5.0L 302 V8
1971 - 1972FordE-200 EconolineBase, Chateau Wagon, Club Wagon, Custom Wagon5.0L 302 V8
1973 - 1974FordE-200 EconolineBase, Club Wagon, Custom Wagon5.0L 302 V8
1975FordE-250 EconolineBase, Chateau, Custom, Northland5.0L 302 V8
1969FordE-300 EconolineBase, Club Wagon5.0L 302 V8
1970FordE-300 EconolineBase, Chateau Wagon, Club Wagon5.0L 302 V8
1971 - 1972FordE-300 EconolineBase, Chateau Wagon, Club Wagon, Custom Wagon5.0L 302 V8
1973 - 1974FordE-300 EconolineBase, Chateau Wagon, Club Wagon5.0L 302 V8
1975FordE-350 EconolineBase, Chateau, Custom, Northland5.0L 302 V8
1969 - 1972FordF-100Base4.7L 289 V8, 5.0L 302 V8
1973 - 1974FordF-100Base5.0L 302 V8
1975FordF-100Custom, Northland, Ranger, Ranger XLT5.0L 302 V8
1976FordF-100Base, Custom, Northland, Ranger, Ranger XLT5.0L 302 V8
1977FordF-100Base, Custom, Northland, Ranger, Ranger XLT, XLT5.0L 302 V8
1978FordF-100Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT5.0L 302 V8
1975FordF-150Custom, Northland, Ranger, Ranger XLT5.0L 302 V8
1976FordF-150Base, Custom, Northland, Ranger, Ranger XLT5.0L 302 V8
1977FordF-150Base, Custom, Northland, Ranger, Ranger XLT, XLT5.0L 302 V8
1978FordF-150Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT5.0L 302 V8
1969 - 1974FordF-250Base5.0L 302 V8
1977FordF-250Base, Custom, Northland, Ranger, Ranger XLT, XLT5.0L 302 V8
1978FordF-250Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT5.0L 302 V8
1972 - 1974FordF-350Base5.0L 302 V8
1975 - 1976FordF-350Base, Custom, Northland, Ranger, Ranger XLT5.0L 302 V8
1977FordF-350Base, Custom, Northland, Ranger, Ranger XLT, XLT5.0L 302 V8
1978FordF-350Base, Custom, Northland, Ranger, Ranger Lariat, Ranger XLT5.0L 302 V8
1962FordFairlane500, Base3.6L 221 V8, 4.3L 260 V8
1963FordFairlane500, Base3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8
1968 - 1969FordFairlane500, Base5.0L 302 V8
1970FordFairlane5005.0L 302 V8
1978FordFairmontBase, Futura5.0L 302 V8
1962FordFalconBase3.6L 221 V8, 4.3L 260 V8
1963FordFalconBase, Futura Sprint3.6L 221 V8, 4.3L 260 V8
1968FordFalconBase, Futura4.7L 289 V8, 5.0L 302 V8
1969 - 1970FordFalconBase, Futura5.0L 302 V8
1968 - 1970FordGalaxie 500Base, XL5.0L 302 V8
1971 - 1974FordGalaxie 500Base5.0L 302 V8
1975 - 1977FordGranadaBase, Ghia5.0L 302 V8
1978FordGranadaBase, ESS, Ghia5.0L 302 V8
1972FordGran TorinoBase, Sport, Squire5.0L 302 V8
1973FordGran TorinoBase, Brougham, Sport, Squire5.0L 302 V8
1974FordGran TorinoBase, Brougham, Elite, Sport, Squire5.0L 302 V8
1968 - 1969FordLTDBase5.0L 302 V8
1970 - 1974FordLTDBase, Brougham5.0L 302 V8
1977 - 1978FordLTDBase, Landau5.0L 302 V8
1977 - 1978FordLTD IIBase, Brougham, S5.0L 302 V8
1971 - 1974FordMaverickBase4.7L 289 V8, 5.0L 302 V8
1975 - 1977FordMaverickBase, Grabber4.7L 289 V8, 5.0L 302 V8
1968FordMustangBase, Shelby GT-3504.7L 289 V8, 5.0L 302 V8
1969FordMustangBase, Boss 3025.0L 302 V8
1970 - 1971FordMustangBase, Boss 302, Grande, Mach 15.0L 302 V8
1972 - 1973FordMustangBase, Grande, Mach 15.0L 302 V8
1975 - 1978FordMustang IIBase, Ghia, Mach 15.0L 302 V8
1972FordP-350Base5.0L 302 V8
1975FordP-350Base5.0L 302 V8
1976FordP-350Base, Custom5.0L 302 V8
1975FordP-400Base5.0L 302 V8
1976FordP-400Base, Custom5.0L 302 V8
1976 - 1977FordP-500Base, Custom5.0L 302 V8
1968 - 1969FordRanchero500, Base, GT5.0L 302 V8
1970 - 1971FordRanchero500, Base, GT, Squire5.0L 302 V8
1972 - 1974FordRanchero500, GT, Squire5.0L 302 V8
1977 - 1978FordRanchero500, GT, Squire5.0L 302 V8
1962FordRanch WagonBase3.6L 221 V8, 4.3L 260 V8
1963FordRanch WagonBase3.6L 221 V8, 4.3L 260 V8, 4.7L 289 V8
1968 - 1969FordRanch WagonBase5.0L 302 V8
1970FordRanch WagonBase, Police Cruiser5.0L 302 V8
1971 - 1974FordRanch WagonBase5.0L 302 V8
1963FordSprintBase3.6L 221 V8, 4.3L 260 V8
1977FordThunderbirdBase5.0L 302 V8
1978FordThunderbirdBase, Diamond Jubilee, Town Landau5.0L 302 V8
1968FordTorinoBase, GT5.0L 302 V8
1969FordTorinoBase, GT, Squire5.0L 302 V8
1970FordTorinoBase, Brougham, GT, Squire5.0L 302 V8
1971FordTorino500, Base, Brougham, GT, Squire5.0L 302 V8
1972 - 1974FordTorinoBase5.0L 302 V8
