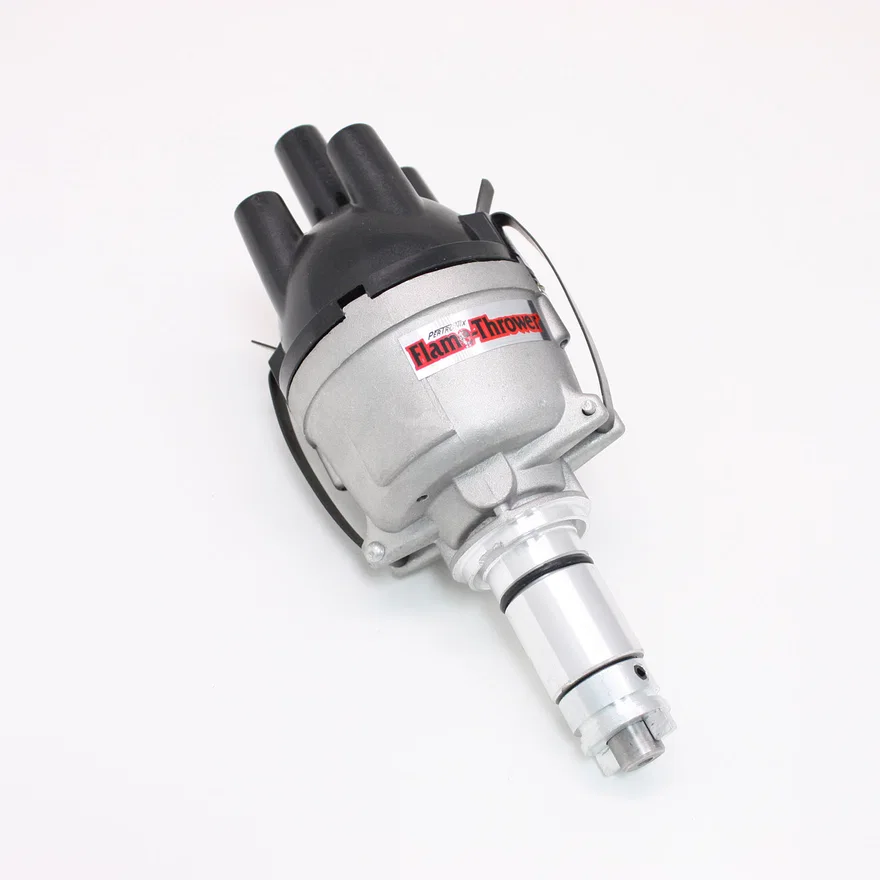

Pertronix Dist British 23D 4 cyl cast Ignitor II top exit cap for MG MGB
Part # D173420SKU PERD173420
Set your vehicle above for a fit verdict. 1 vehicle listed below.
| Brand | Pertronix |
|---|---|
| Part type | Distributor |
| Adjustable Collar | No |
| Advance Type | Vacuum and mechanical |
| Cap Color | Black |
| Cap Terminal Gender | Female |
| Clamp Hardware Included | No |
| Clamp Included | No |
| Coil Wire Included | No |
| Computer Controlled Compatible | No |
| Connector Type | Unsealed |
| Distributor Cap Included | Yes |
| Distributor Gear Included | Yes |
| EmissionFullDES | 4 - This Product is considered a Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer’s Application Guide and Installation Instructions. |
| Gear Material | Steel |
| Grade Type | Performance |
| Housing Color | Natural |
| Housing Finish | Natural |
| Housing Material | Aluminum |
| Ignition Box Required | No |
| Ignition Coil Included | No |
| Ignition Module Included | Yes |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tach Drive Provision | No |
| Quantity | Sold individually. |
| Shaft Color | Natural |
| Shaft Diameter | .490 in |
| Shaft Material | Steel |
| Trigger Type | Hall Effect |
| UPC / GTIN | 00694342551704 |
- Available for 12-volt negative and positive ground systems.
- All new lightweight cast aluminum housings.
- Balanced rotor with overmolded brass contact.
- Tailored advance curve for optimal performance and drivability.
- High dielectric strength cap with brass terminals.
- Integrated Ignitor II electronic ignition with variable dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.
- Top or side exit caps available.
- Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.
- Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.
Description
For restorations and a more factory OEM look under the hood, our Stock-Look Distributor features many of our advanced features, but in a lightweight, cast housing to provide a stealthy ignition upgrade.
More from Pertronix
| D120700 | $603.99 |
| D151700 | $609.99 |
| D7100810 | $679.99 |
| D134630 | $482.99 |
| D151810 | $679.99 |
| D101811 | $652.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1962 - 1974 | MG | MGB | 1.8L 110 I4 |
