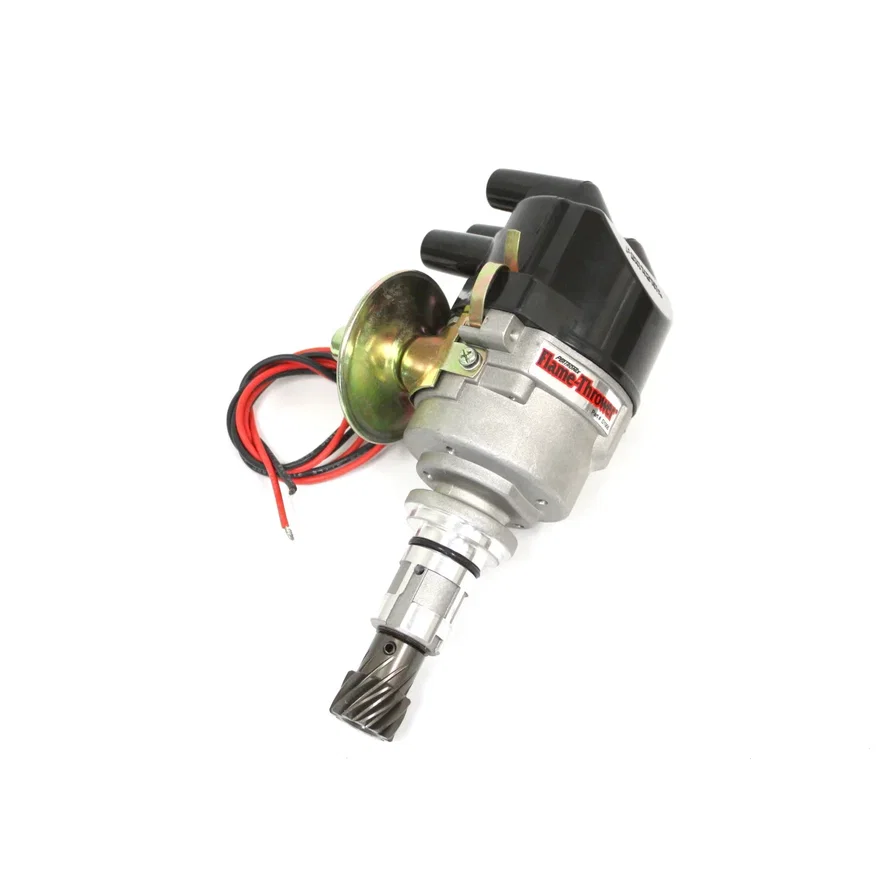

Pertronix Dist Ford X-Flow cast I2 vac Side Cap
Part # D190609SKU PERD190609
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Distributor |
| Adjustable Collar | No |
| Advance Type | Vacuum and mechanical |
| Cap Color | Black |
| Cap Terminal Gender | Female |
| Clamp Hardware Included | No |
| Clamp Included | No |
| Coil Wire Included | No |
| Computer Controlled Compatible | No |
| Connector Type | Unsealed |
| Distributor Cap Included | Yes |
| Distributor Gear Included | Yes |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Gear Material | Steel |
| Grade Type | Performance |
| Housing Color | Natural |
| Housing Finish | Natural |
| Housing Material | Aluminum |
| Ignition Box Required | No |
| Ignition Coil Included | No |
| Ignition Module Included | Yes |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tach Drive Provision | No |
| Quantity | Sold individually. |
| Shaft Color | Natural |
| Shaft Diameter | .490 in |
| Shaft Material | Steel |
| Trigger Type | Hall Effect |
| UPC / GTIN | 00694342520830 |
- Adjusts spark timing at higher RPMs to compensate for the inherent electronic delay.
- All new lightweight cast aluminum housings.
- Balanced rotor with overmolded brass contact.
- Tailored advance curve for optimal performance and drivability.
- Built in reverse polarity and over current protection shuts down the system, preventing component damage.
- Integrated Ignitor II electronic ignition with variable dwell maintains peak energy throughout the entire RPM range, reducing misfires while improving engine performance.
- High dielectric strength cap with brass terminals.
- Develops on average 4 times more available energy between 3000 and 5000 RPM, and 2 times more available plug voltage.
- Not legal for sale or use on pollution controlled motor vehicles.
- Peak current level is reached just prior to spark for maximum energy without the heat build-up, increasing coil and module life.
- Senses startup and develops more energy for quicker, easier starting.
- Top or side exit caps available.
Description
Flame-Thrower HP distributors take the performance line of distributors one step higher. That's right, HP stands for High Performance, and that's what you get with our all new HP distributors. These distributors feature patented Ignitor II technology and are available with top exit or our new side exit caps. For optimal performance, use our Flame-Thrower II 45,000 volt coils.
