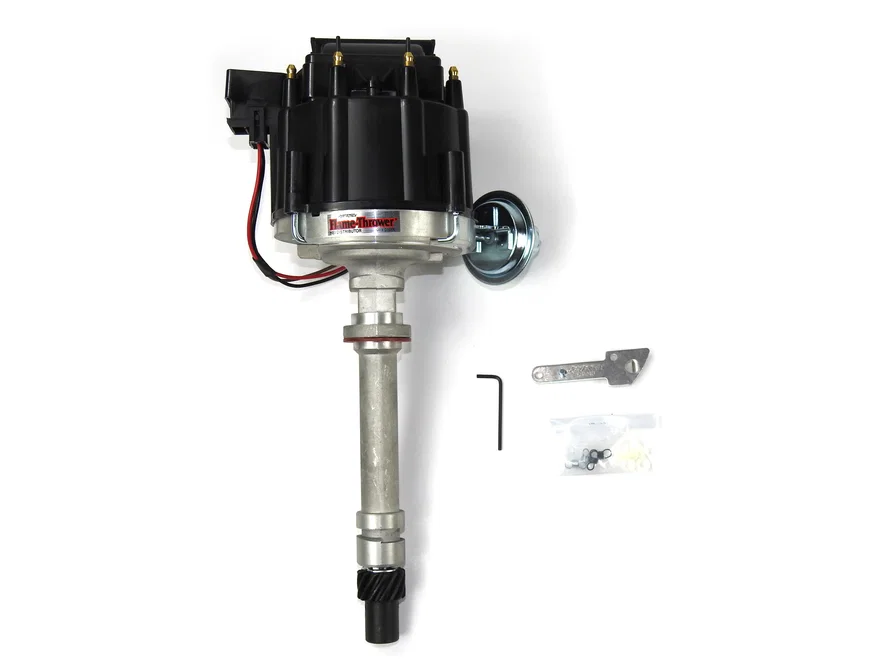

Pertronix IMCA Race HEI Chevy SB/BB blk cap
Part # D1075SKU PERD1075
Set your vehicle above for a fit verdict. 152 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Distributor |
| Adjustable Collar | No |
| Advance Type | Vacuum and mechanical |
| Cap Color | Black |
| Cap Diameter | 6.295 in |
| Cap Terminal Gender | Male |
| Clamp Hardware Included | No |
| Clamp Included | No |
| Coil Wire Included | No |
| Computer Controlled Compatible | No |
| Connector Type | Unsealed |
| Distributor Cap Included | Yes |
| Distributor Gear Included | Yes |
| EmissionFullDES | 3 - This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use. |
| Gear Material | Steel |
| Grade Type | Performance |
| Housing Color | Natural |
| Housing Finish | Natural |
| Housing Material | Aluminum |
| Ignition Box Required | No |
| Ignition Coil Included | Yes |
| Ignition Module Included | Yes |
| Ignition Rotor Included | Yes |
| Marine Approved | No |
| Mechanical Tach Drive Provision | No |
| Quantity | Sold individually. |
| Rotor Rotation | Clockwise (Right) |
| Shaft Color | Natural |
| Shaft Diameter | .490 in |
| Shaft Material | Steel |
| Trigger Type | Magnetic |
| UPC / GTIN | 00694342553807 |
- Aligned and honed high quality bronze sintered bushings for reduced friction and extended life.
- Centerless ground corrosion resistant shaft reduces friction and provides concentric operation.
- Distributor gear is ground to exact tolerances for tighter mesh with cam. (Bronze distributor gear available)
- New lightweight A384 cast aluminum alloy housing.
- RACE ONLY 7.2 amp module and 50,000 volt coil.
Description
Race HEI units use all new components and feature an electronic module and coil combination that optimizes spark energy and peak current to the spark plug in the 6000 to 8500 RPM range. Compared to our street or strip version, race units produce 42 percent more energy with 46 percent faster spark breakdown time allowing 48 percent more peak current to reach the spark plug. This abundant energy doubles the spark intensity during the critical one millisecond of burn time. Great for both circle track and drag race applications where factory type HEI distributors are mandated.
More from Pertronix
| D120700 | $603.99 |
| D151700 | $609.99 |
| D7100810 | $679.99 |
| D134630 | $482.99 |
| D151810 | $679.99 |
| D101811 | $652.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1975 | Chevrolet | Bel Air | 5.7L 350 V8, 6.6L 400 V8 |
| 1987 | Chevrolet | Blazer | 5.0L 305 V8, 5.7L 350 V8 |
| 1988 - 1994 | Chevrolet | Blazer | 5.7L 350 V8 |
| 1975 | Chevrolet | C10 | 5.7L 350 V8, 7.4L 454 V8 |
| 1976 | Chevrolet | C10 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1980 | Chevrolet | C10 | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1981 - 1986 | Chevrolet | C10 | 5.0L 305 V8, 5.7L 350 V8 |
| 1975 - 1976 | Chevrolet | C10 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1977 - 1979 | Chevrolet | C10 Suburban | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1980 | Chevrolet | C10 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1981 - 1986 | Chevrolet | C10 Suburban | 5.0L 305 V8, 5.7L 350 V8 |
| 1988 - 1997 | Chevrolet | C1500 | 5.0L 305 V8, 5.7L 350 V8 |
| 1992 - 1997 | Chevrolet | C1500 Suburban | 5.7L 350 V8 |
| 1975 | Chevrolet | C20 | 5.7L 350 V8, 7.4L 454 V8 |
| 1976 | Chevrolet | C20 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1978 | Chevrolet | C20 | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1979 - 1980 | Chevrolet | C20 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1981 - 1986 | Chevrolet | C20 | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1975 | Chevrolet | C20 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1976 | Chevrolet | C20 Suburban | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1979 | Chevrolet | C20 Suburban | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1980 | Chevrolet | C20 Suburban | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1981 - 1986 | Chevrolet | C20 Suburban | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1988 - 1990 | Chevrolet | C2500 | 5.0L 305 V8, 5.7L 350 V8 |
| 1991 - 1997 | Chevrolet | C2500 | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1992 - 1997 | Chevrolet | C2500 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1975 | Chevrolet | C30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1976 - 1977 | Chevrolet | C30 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1978 | Chevrolet | C30 | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1979 - 1986 | Chevrolet | C30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1988 - 1997 | Chevrolet | C3500 | 5.7L 350 V8, 7.4L 454 V8 |
| 1975 - 1981 | Chevrolet | Camaro | 5.7L 350 V8 |
| 1987 - 1997 | Chevrolet | Camaro | 5.7L 350 V8 |
| 1975 | Chevrolet | Caprice | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | Caprice | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1979 | Chevrolet | Caprice | 5.0L 305 V8, 5.7L 350 V8 |
| 1980 - 1982 | Chevrolet | Caprice | 4.4L 267 V8, 5.7L 350 V8 |
| 1991 - 1992 | Chevrolet | Commercial Chassis | 5.0L 305 V8, 5.7L 350 V8 |
| 1993 - 1994 | Chevrolet | Commercial Chassis | 5.7L 350 V8 |
| 1975 | Chevrolet | El Camino | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | El Camino | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1977 - 1978 | Chevrolet | El Camino | 5.0L 305 V8, 5.7L 350 V8 |
| 1979 | Chevrolet | El Camino | 4.4L 267 V8, 5.7L 350 V8 |
| 1980 - 1982 | Chevrolet | El Camino | 4.4L 267 V8 |
| 1996 - 1997 | Chevrolet | Express 1500 | 5.0L 305 V8, 5.7L 350 V8 |
| 1996 - 1997 | Chevrolet | Express 2500 | 5.0L 305 V8, 5.7L 350 V8 |
| 1996 - 1997 | Chevrolet | Express 3500 | 5.7L 350 V8, 7.4L 454 V8 |
| 1975 | Chevrolet | G10 | 5.7L 350 V8 |
| 1976 | Chevrolet | G10 | 5.7L 350 V8, 6.6L 400 V8 |
| 1977 - 1993 | Chevrolet | G10 | 5.0L 305 V8, 5.7L 350 V8 |
| 1994 - 1995 | Chevrolet | G10 | 5.0L 305 V8 |
| 1975 | Chevrolet | G20 | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | G20 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1979 | Chevrolet | G20 | 5.7L 350 V8, 6.6L 400 V8 |
| 1980 | Chevrolet | G20 | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1981 - 1995 | Chevrolet | G20 | 5.0L 305 V8, 5.7L 350 V8 |
| 1975 - 1976 | Chevrolet | G30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1977 - 1987 | Chevrolet | G30 | 5.7L 350 V8 |
| 1988 - 1996 | Chevrolet | G30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1975 | Chevrolet | Impala | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | Impala | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1979 | Chevrolet | Impala | 5.0L 305 V8, 5.7L 350 V8 |
| 1980 - 1982 | Chevrolet | Impala | 4.4L 267 V8, 5.7L 350 V8 |
| 1983 - 1984 | Chevrolet | Impala | 5.7L 350 V8 |
| 1975 | Chevrolet | K10 | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | K10 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1978 | Chevrolet | K10 | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1979 | Chevrolet | K10 | 5.7L 350 V8, 6.6L 400 V8 |
| 1980 | Chevrolet | K10 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1981 - 1986 | Chevrolet | K10 | 5.0L 305 V8, 5.7L 350 V8 |
| 1975 - 1976 | Chevrolet | K10 Suburban | 5.7L 350 V8, 6.6L 400 V8 |
| 1977 - 1979 | Chevrolet | K10 Suburban | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1980 | Chevrolet | K10 Suburban | 5.7L 350 V8 |
| 1981 | Chevrolet | K10 Suburban | 5.0L 305 V8, 5.7L 350 V8 |
| 1982 | Chevrolet | K10 Suburban | 5.7L 350 V8 |
| 1983 | Chevrolet | K10 Suburban | 5.0L 305 V8, 5.7L 350 V8 |
| 1984 - 1985 | Chevrolet | K10 Suburban | 5.7L 350 V8 |
| 1986 | Chevrolet | K10 Suburban | 5.0L 305 V8, 5.7L 350 V8 |
| 1988 - 1997 | Chevrolet | K1500 | 5.0L 305 V8, 5.7L 350 V8 |
| 1992 - 1997 | Chevrolet | K1500 Suburban | 5.7L 350 V8 |
| 1975 | Chevrolet | K20 | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | K20 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1978 | Chevrolet | K20 | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1979 - 1980 | Chevrolet | K20 | 5.7L 350 V8, 6.6L 400 V8 |
| 1981 - 1984 | Chevrolet | K20 | 5.7L 350 V8 |
| 1985 | Chevrolet | K20 | 5.0L 305 V8, 5.7L 350 V8 |
| 1986 | Chevrolet | K20 | 5.7L 350 V8 |
| 1975 - 1976 | Chevrolet | K20 Suburban | 5.7L 350 V8, 6.6L 400 V8 |
| 1977 - 1978 | Chevrolet | K20 Suburban | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1979 - 1980 | Chevrolet | K20 Suburban | 5.7L 350 V8, 6.6L 400 V8 |
| 1981 - 1984 | Chevrolet | K20 Suburban | 5.7L 350 V8 |
| 1985 | Chevrolet | K20 Suburban | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1986 | Chevrolet | K20 Suburban | 5.0L 305 V8, 5.7L 350 V8 |
| 1988 - 1990 | Chevrolet | K2500 | 5.0L 305 V8, 5.7L 350 V8 |
| 1991 - 1997 | Chevrolet | K2500 | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1992 - 1997 | Chevrolet | K2500 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1977 | Chevrolet | K30 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1978 - 1979 | Chevrolet | K30 | 5.7L 350 V8, 6.6L 400 V8 |
| 1980 | Chevrolet | K30 | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1981 - 1986 | Chevrolet | K30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1988 - 1997 | Chevrolet | K3500 | 5.7L 350 V8, 7.4L 454 V8 |
| 1975 | Chevrolet | K5 Blazer | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | K5 Blazer | 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1977 - 1978 | Chevrolet | K5 Blazer | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8, 7.4L 454 V8 |
| 1979 | Chevrolet | K5 Blazer | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1980 - 1986 | Chevrolet | K5 Blazer | 5.0L 305 V8, 5.7L 350 V8 |
| 1975 | Chevrolet | Malibu | 5.7L 350 V8 |
| 1978 | Chevrolet | Malibu | 5.0L 305 V8, 5.7L 350 V8 |
| 1979 - 1981 | Chevrolet | Malibu | 4.4L 267 V8, 5.7L 350 V8 |
| 1982 | Chevrolet | Malibu | 4.4L 267 V8 |
| 1975 | Chevrolet | Monte Carlo | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Chevrolet | Monte Carlo | 5.0L 305 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1977 | Chevrolet | Monte Carlo | 5.0L 305 V8, 5.7L 350 V8 |
| 1978 | Chevrolet | Monte Carlo | 5.0L 305 V8 |
| 1979 - 1980 | Chevrolet | Monte Carlo | 4.4L 267 V8 |
| 1981 - 1982 | Chevrolet | Monte Carlo | 4.4L 267 V8, 5.7L 350 V8 |
| 1983 - 1984 | Chevrolet | Monte Carlo | 5.0L 305 V8, 5.7L 350 V8 |
| 1985 - 1988 | Chevrolet | Monte Carlo | 5.0L 305 V8 |
| 1975 | Chevrolet | Monza | 4.3L 262 V8 |
| 1976 | Chevrolet | Monza | 4.3L 262 V8, 5.0L 305 V8 |
| 1977 - 1979 | Chevrolet | Monza | 5.0L 305 V8 |
| 1975 | Chevrolet | Nova | 4.3L 262 V8, 5.7L 350 V8 |
| 1976 - 1979 | Chevrolet | Nova | 5.0L 305 V8, 5.7L 350 V8 |
| 1975 | Chevrolet | P10 | 5.7L 350 V8 |
| 1977 | Chevrolet | P10 | 5.7L 350 V8, 6.6L 400 V8 |
| 1978 | Chevrolet | P10 | 5.7L 350 V8 |
| 1979 | Chevrolet | P10 | 5.0L 305 V8 |
| 1975 - 1978 | Chevrolet | P20 | 5.7L 350 V8 |
| 1979 | Chevrolet | P20 | 5.7L 350 V8, 7.4L 454 V8 |
| 1980 - 1989 | Chevrolet | P20 | 5.7L 350 V8 |
| 1975 - 1976 | Chevrolet | P30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1977 | Chevrolet | P30 | 5.7L 350 V8 |
| 1978 - 1997 | Chevrolet | P30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1987 | Chevrolet | R10 | 5.0L 305 V8, 5.7L 350 V8 |
| 1987 | Chevrolet | R10 Suburban | 5.0L 305 V8, 5.7L 350 V8 |
| 1988 | Chevrolet | R10 Suburban | 5.7L 350 V8 |
| 1989 - 1991 | Chevrolet | R1500 Suburban | 5.7L 350 V8 |
| 1987 - 1988 | Chevrolet | R20 | 5.0L 305 V8, 5.7L 350 V8, 7.4L 454 V8 |
| 1987 - 1988 | Chevrolet | R20 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1989 | Chevrolet | R2500 | 5.7L 350 V8, 7.4L 454 V8 |
| 1989 - 1991 | Chevrolet | R2500 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1987 - 1988 | Chevrolet | R30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1989 - 1991 | Chevrolet | R3500 | 5.7L 350 V8, 7.4L 454 V8 |
| 1995 - 1997 | Chevrolet | Tahoe | 5.7L 350 V8 |
| 1987 | Chevrolet | V10 | 5.0L 305 V8, 5.7L 350 V8 |
| 1987 - 1988 | Chevrolet | V10 Suburban | 5.7L 350 V8 |
| 1989 - 1991 | Chevrolet | V1500 Suburban | 5.7L 350 V8 |
| 1987 | Chevrolet | V20 | 5.7L 350 V8 |
| 1987 - 1988 | Chevrolet | V20 Suburban | 5.7L 350 V8, 7.4L 454 V8 |
| 1989 - 1991 | Chevrolet | V2500 Suburban | 5.7L 350 V8 |
| 1987 - 1988 | Chevrolet | V30 | 5.7L 350 V8, 7.4L 454 V8 |
| 1989 - 1991 | Chevrolet | V3500 | 5.7L 350 V8, 7.4L 454 V8 |
