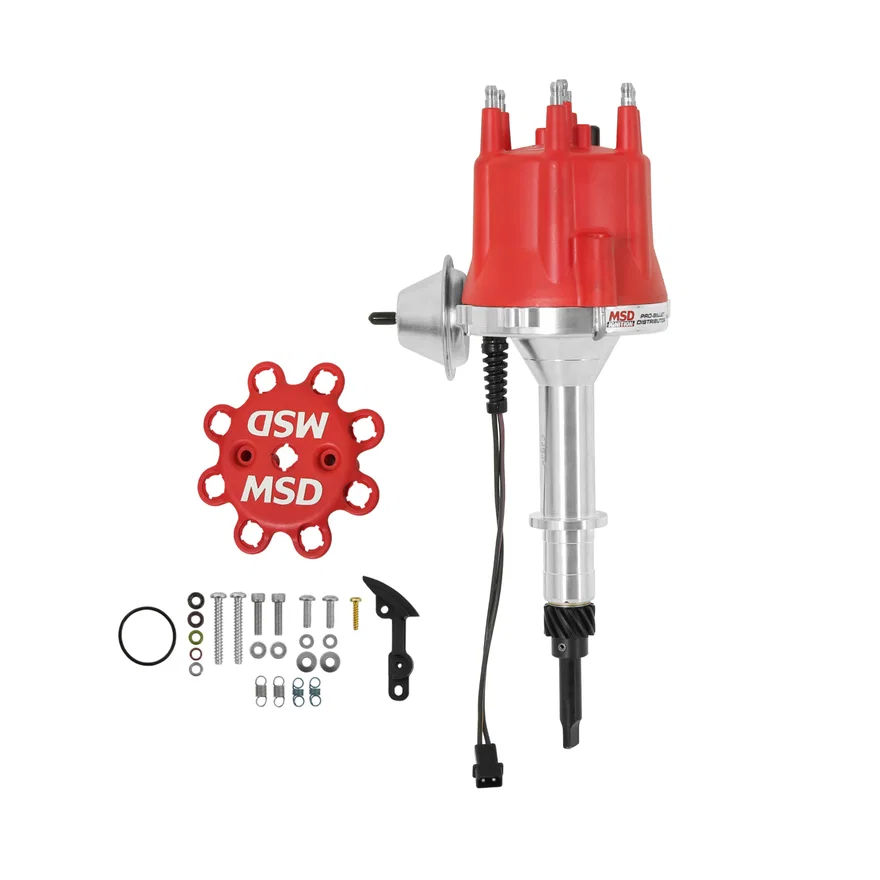

MSD Chevy In-line 6 Cylinder Distributor
Part # 8515SKU MSD8515
Set your vehicle above for a fit verdict. 155 vehicles listed below.
| Brand | MSD |
|---|---|
| Part type | Distributor |
| Brand | MSD |
| C.A.R.B. EO # | D-40-39 |
| Category | Ignition |
| Color | Red |
| Distributor Cap Included | Yes |
| Distributor Type | Magnetic Pickup |
| Emission Code | 1 |
| Gear Material | Cast Iron Melonized QPQ Coated |
| Grade Type | Performance |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| part type | Distributor |
| Product Type | Distributor |
| Sub Category | Distributor and Magneto |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132085156 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Designed for street/performance use with a mechanical and vacuum advance
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Advance weight pins are staked and tig welded to the plate
- O-ring seals can be added to modified blocks to improve oil pressure control
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Will not fit 235 and 261 engines
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Special oil tract improves lubrication to the distributor and cam gear
- CARB E.O. Approved
- Nylon pads ensure smooth operation of the advance weights
- Supplied with a socket style distributor cap and rotor
- CNC machined billet aluminum housing and billet aluminum base
Description
A maintenance-free magnetic pick-up provides accurate trigger signals to your
More from MSD
| 8362 | $354.99 |
| 85551 | $640.99 |
| 835231 | $1,165.99 |
| 85793 | $936.99 |
| 8360 | $800.99 |
| 8362CT | $749.99 |
| Year | Make | Model | Submodel | Body Style | Engine |
|---|---|---|---|---|---|
| 1961 - 1962 | Chevrolet | Bel Air | Base | - | 3.8L 235 I6 |
| 1963 - 1964 | Chevrolet | Bel Air | Base | - | 3.8L 230 I6 |
| 1965 | Chevrolet | Bel Air | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1966 - 1973 | Chevrolet | Bel Air | Base | - | 4.1L 250 I6 |
| 1961 - 1962 | Chevrolet | Biscayne | Base | - | 3.8L 235 I6 |
| 1963 - 1964 | Chevrolet | Biscayne | Base | - | 3.8L 230 I6 |
| 1965 | Chevrolet | Biscayne | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1966 - 1972 | Chevrolet | Biscayne | Base | - | 4.1L 250 I6 |
| 1969 | Chevrolet | Blazer | Base | - | 4.1L 250 I6 |
| 1970 | Chevrolet | Blazer | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1971 - 1972 | Chevrolet | Blazer | Base | - | 4.1L 250 I6 |
| 1973 | Chevrolet | Blazer | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1974 | Chevrolet | Blazer | Base | - | 4.1L 250 I6 |
| 1969 | Chevrolet | Brookwood | Base | - | 4.1L 250 I6 |
| 1961 - 1962 | Chevrolet | C10 Pickup | Base | - | 3.8L 235 I6 |
| 1963 - 1965 | Chevrolet | C10 Pickup | Base | - | 3.8L 230 I6, 4.8L 292 I6 |
| 1966 | Chevrolet | C10 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6 |
| 1967 - 1971 | Chevrolet | C10 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1972 | Chevrolet | C10 Pickup | Base | - | 4.1L 250 I6 |
| 1973 - 1974 | Chevrolet | C10 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1967 - 1971 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1972 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6 |
| 1973 - 1974 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1961 - 1962 | Chevrolet | C20 Pickup | Base | - | 3.8L 235 I6 |
| 1963 - 1965 | Chevrolet | C20 Pickup | Base | - | 3.8L 230 I6, 4.8L 292 I6 |
| 1966 - 1973 | Chevrolet | C20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1974 | Chevrolet | C20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.7L 350 V8 |
| 1968 - 1972 | Chevrolet | C20 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1973 - 1974 | Chevrolet | C20 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.7L 350 V8 |
| 1961 - 1962 | Chevrolet | C30 Pickup | Base | - | 3.8L 235 I6 |
| 1963 | Chevrolet | C30 Pickup | Base | - | 4.8L 292 I6 |
| 1964 - 1965 | Chevrolet | C30 Pickup | Base | - | 3.8L 230 I6, 4.8L 292 I6 |
| 1966 - 1973 | Chevrolet | C30 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1974 | Chevrolet | C30 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.7L 350 V8 |
| 1967 - 1969 | Chevrolet | Camaro | Base, RS | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 - 1973 | Chevrolet | Camaro | Base, RS | - | 4.1L 250 I6 |
| 1974 | Chevrolet | Camaro | Base | - | 4.1L 250 I6 |
| 1967 - 1969 | Chevrolet | Caprice | Base | - | 4.1L 250 I6 |
| 1964 | Chevrolet | Chevelle | 300, Malibu, Malibu Super Sport | - | 3.2L 194 I6, 3.8L 230 I6 |
| 1965 | Chevrolet | Chevelle | 300, 300 Deluxe, Malibu, Malibu Super Sport | - | 3.2L 194 I6, 3.8L 230 I6 |
| 1966 | Chevrolet | Chevelle | 300, 300 Deluxe, Malibu | - | 3.2L 194 I6, 3.8L 230 I6 |
| 1967 | Chevrolet | Chevelle | 300, 300 Deluxe, Concours, Malibu | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1968 | Chevrolet | Chevelle | 300, 300 Deluxe, Concours, Malibu, Nomad, Nomad Custom | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1969 | Chevrolet | Chevelle | 300 Deluxe, Concours, Concours Estate, Greenbrier, Malibu, Nomad, SS 396 | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 - 1972 | Chevrolet | Chevelle | Base, Concours, Concours Estate, Greenbrier, Malibu, Nomad | - | 4.1L 250 I6 |
| 1973 | Chevrolet | Chevelle | Deluxe, Malibu, Malibu Estate | - | 4.1L 250 I6 |
| 1974 | Chevrolet | Chevelle | Malibu, Malibu Classic | - | 4.1L 250 I6 |
| 1962 - 1963 | Chevrolet | Chevy II | Base, Nova | - | 3.2L 194 I6 |
| 1964 - 1966 | Chevrolet | Chevy II | Base, Nova, Nova SS | - | 3.2L 194 I6, 3.8L 230 I6 |
| 1967 | Chevrolet | Chevy II | Base, Nova, Nova SS | - | 4.1L 250 I6 |
| 1968 | Chevrolet | Chevy II | Nova | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1964 - 1966 | Chevrolet | El Camino | Base | - | 3.2L 194 I6, 3.8L 230 I6 |
| 1967 | Chevrolet | El Camino | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1968 - 1969 | Chevrolet | El Camino | Base, Custom | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 - 1974 | Chevrolet | El Camino | Base, Custom | - | 4.1L 250 I6 |
| 1964 - 1965 | Chevrolet | G10 Van | Base | - | 3.2L 194 I6 |
| 1966 | Chevrolet | G10 Van | Base | - | 3.2L 194 I6, 3.8L 230 I6 |
| 1967 | Chevrolet | G10 Van | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1968 | Chevrolet | G10 Van | Sportvan | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1969 | Chevrolet | G10 Van | Base, Sportvan | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 - 1974 | Chevrolet | G10 Van | Base, Sportvan | - | 4.1L 250 I6 |
| 1967 | Chevrolet | G20 Van | Base | - | 3.8L 230 I6 |
| 1968 - 1969 | Chevrolet | G20 Van | Base, Sportvan | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 | Chevrolet | G20 Van | Base, Sportvan | - | 4.1L 250 I6 |
| 1971 | Chevrolet | G20 Van | Base, Sportvan | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1972 | Chevrolet | G20 Van | Base, Sportvan | - | 4.1L 250 I6 |
| 1973 - 1974 | Chevrolet | G20 Van | Base, Sportvan | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1970 | Chevrolet | G30 Van | Base, Sportvan | - | 4.1L 250 I6 |
| 1971 - 1972 | Chevrolet | G30 Van | Base, Sportvan | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1973 | Chevrolet | G30 Van | Base, Sportvan | - | 4.1L 250 I6 |
| 1974 | Chevrolet | G30 Van | Base, Sportvan | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1961 - 1962 | Chevrolet | Impala | Base | - | 3.8L 235 I6 |
| 1963 | Chevrolet | Impala | Base | - | 3.8L 230 I6 |
| 1964 | Chevrolet | Impala | Base, SS | - | 3.8L 230 I6 |
| 1965 | Chevrolet | Impala | Base, SS | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1966 - 1967 | Chevrolet | Impala | Base, SS | - | 4.1L 250 I6 |
| 1968 - 1973 | Chevrolet | Impala | Base | - | 4.1L 250 I6 |
| 1961 | Chevrolet | K10 Pickup | Base | - | 3.8L 235 I6, 4.3L 261 I6 |
| 1962 | Chevrolet | K10 Pickup | Base | - | 4.3L 261 I6 |
| 1964 - 1965 | Chevrolet | K10 Pickup | Base | - | 3.8L 230 I6, 4.8L 292 I6 |
| 1966 | Chevrolet | K10 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1967 - 1968 | Chevrolet | K10 Pickup | Base | - | 4.1L 250 I6 |
| 1969 | Chevrolet | K10 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 - 1974 | Chevrolet | K10 Pickup | Base | - | 4.1L 250 I6 |
| 1968 | Chevrolet | K10 Suburban | Base | - | 4.1L 250 I6 |
| 1969 - 1970 | Chevrolet | K10 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1971 - 1974 | Chevrolet | K10 Suburban | Base | - | 4.1L 250 I6 |
| 1961 - 1962 | Chevrolet | K20 Pickup | Base | - | 3.8L 235 I6, 4.3L 261 I6 |
| 1964 - 1965 | Chevrolet | K20 Pickup | Base | - | 3.8L 230 I6, 4.8L 292 I6 |
| 1966 - 1967 | Chevrolet | K20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1968 | Chevrolet | K20 Pickup | Base | - | 4.1L 250 I6 |
| 1969 - 1974 | Chevrolet | K20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1968 - 1974 | Chevrolet | K20 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1968 - 1974 | Chevrolet | K30 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1969 - 1970 | Chevrolet | Nova | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1971 - 1972 | Chevrolet | Nova | Base | - | 4.1L 250 I6 |
| 1973 - 1974 | Chevrolet | Nova | Base, Custom | - | 4.1L 250 I6 |
| 1961 - 1962 | Chevrolet | Suburban | Base | - | 3.8L 235 I6 |
| 1963 - 1965 | Chevrolet | Suburban | Base | - | 3.8L 230 I6, 4.8L 292 I6 |
| 1966 | Chevrolet | Suburban | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6 |
| 1964 - 1965 | GMC | 1000 Series | Base | - | 3.8L 230 I6 |
| 1964 - 1965 | GMC | 1500 Series | Base | - | 3.8L 230 I6 |
| 1975 - 1976 | GMC | C15 | Base, High Sierra, Sierra Classic, Sierra Grande | - | 4.1L 250 I6 |
| 1967 - 1971 | GMC | C15/C1500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1972 | GMC | C15/C1500 Pickup | Base | - | 4.1L 250 I6 |
| 1973 - 1974 | GMC | C15/C1500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1967 - 1969 | GMC | C15/C1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1970 - 1971 | GMC | C15/C1500 Suburban | Base | - | 4.8L 292 I6 |
| 1974 | GMC | C15/C1500 Suburban | Base | - | 4.8L 292 I6 |
| 1975 | GMC | C25 | Base, High Sierra, Sierra Classic, Sierra Grande | - | 4.1L 250 I6 |
| 1967 - 1974 | GMC | C25/C2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1967 | GMC | C25/C2500 Suburban | Base | - | 4.1L 250 I6 |
| 1968 - 1969 | GMC | C25/C2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1970 - 1972 | GMC | C25/C2500 Suburban | Base | - | 4.8L 292 I6 |
| 1974 | GMC | C25/C2500 Suburban | Base | - | 4.8L 292 I6 |
| 1975 | GMC | C35 | Base, High Sierra, Sierra Classic, Sierra Grande | - | 4.1L 250 I6 |
| 1967 - 1974 | GMC | C35/C3500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1975 | GMC | G15 | Rally, Rally STX, Vandura | - | 4.1L 250 I6 |
| 1976 | GMC | G15 | Vandura | - | 4.1L 250 I6 |
| 1967 | GMC | G15/G1500 Van | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1968 - 1969 | GMC | G15/G1500 Van | Rally, Vandura | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 | GMC | G15/G1500 Van | Vandura | - | 4.1L 250 I6 |
| 1971 - 1974 | GMC | G15/G1500 Van | Rally, Vandura | - | 4.1L 250 I6 |
| 1967 | GMC | G25/G2500 Van | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1968 - 1969 | GMC | G25/G2500 Van | Rally, Vandura | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 | GMC | G25/G2500 Van | Vandura | - | 4.1L 250 I6 |
| 1971 - 1973 | GMC | G25/G2500 Van | Rally, Vandura | - | 4.1L 250 I6 |
| 1974 | GMC | G25/G2500 Van | Rally, Vandura | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1971 | GMC | G35/G3500 Van | Base, Rally, Vandura | - | 4.1L 250 I6 |
| 1974 | GMC | G35/G3500 Van | Base, Rally, Vandura | - | 4.8L 292 I6 |
| 1970 | GMC | Jimmy | Base | - | 4.1L 250 I6 |
| 1973 | GMC | Jimmy | Base | - | 4.8L 292 I6 |
| 1975 - 1976 | GMC | K15 | Base, High Sierra, Sierra Classic, Sierra Grande | - | 4.1L 250 I6 |
| 1967 - 1968 | GMC | K15/K1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6 |
| 1969 | GMC | K15/K1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6 |
| 1970 - 1971 | GMC | K15/K1500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1972 - 1974 | GMC | K15/K1500 Pickup | Base | - | 4.1L 250 I6 |
| 1967 - 1968 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1969 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6 |
| 1970 - 1971 | GMC | K15/K1500 Suburban | Base | - | 4.8L 292 I6 |
| 1975 - 1976 | GMC | K25 | Base, High Sierra, Sierra Classic, Sierra Grande | - | 4.1L 250 I6 |
| 1967 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1968 - 1969 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6 |
| 1970 - 1974 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1968 - 1969 | GMC | K25/K2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1970 - 1972 | GMC | K25/K2500 Suburban | Base | - | 4.8L 292 I6 |
| 1968 - 1969 | GMC | K35/K3500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6 |
| 1970 - 1972 | GMC | K35/K3500 Pickup | Base | - | 4.8L 292 I6 |
| 1974 | GMC | K35/K3500 Pickup | Base | - | 4.8L 292 I6 |
| 1971 | GMC | Sprint | Base | - | 4.1L 250 I6 |
| 1975 | GMC | Sprint | Base, Classic, High Sierra, SP | - | 4.1L 250 I6 |
| 1976 | GMC | Sprint | Base, Classic, SP, Sierra Madre Del Sur | - | 4.1L 250 I6 |
| 1972 | GMC | Sprint | Base, Custom | Standard Cab Pickup | 4.1L 250 I6 |
| 1963 - 1965 | GMC | Suburban | Base | - | 3.8L 230 I6 |
| 1966 | GMC | Suburban | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6 |
