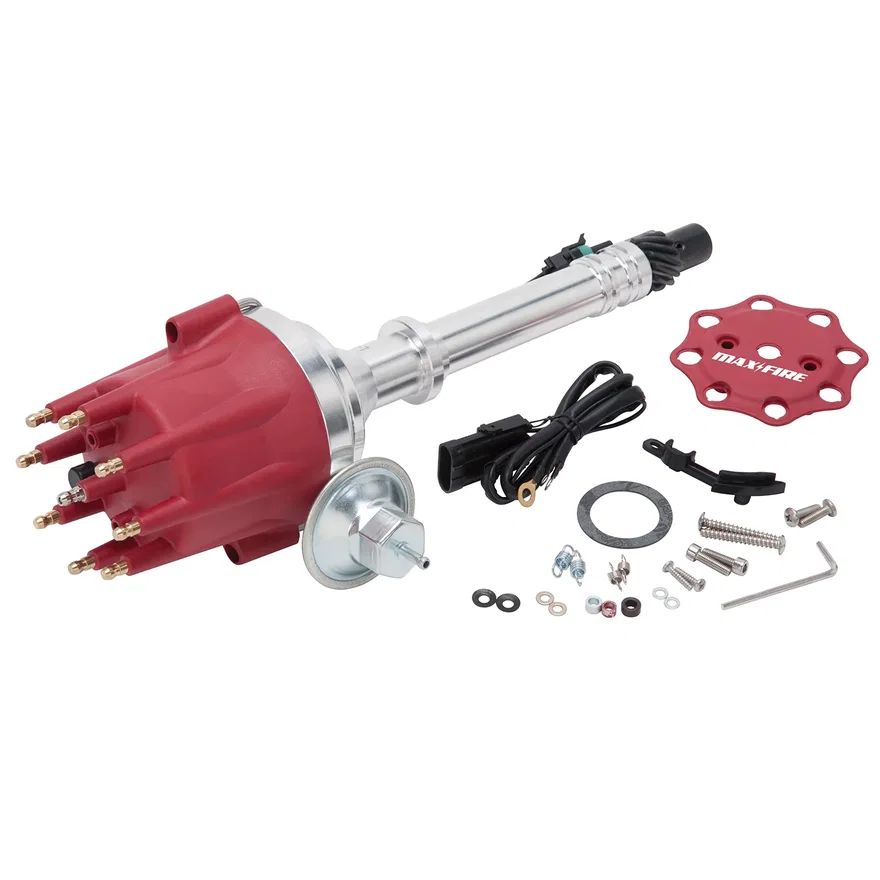

Edelbrock Max-Fire® Distributor for Cadillac 1968-84 V8 (425, 368, 472 & 500)

Part # 22753SKU EDE22753

Set your vehicle above for a fit verdict. 19 vehicles listed below.

Specifications
BrandEdelbrock
Part typeDistributor
Advance TypeVacuum and Mechanical
Cap ColorRED
Coil Wire IncludedYes
ColorRed
Distributor Cap IncludedYes
Gear MaterialHARDENED IRON
Grade TypePerformance
Ignition Box RequiredNo
Ignition Coil IncludedNo
Ignition Rotor IncludedYes
Marine ApprovedNo
Rotor RotationCounterclockwise
Trigger TypeMagnetic
UPC / GTIN00085347227532

Description

Edelbrock part #22753 Max-Fire distributor for 1968-84 Cadillac 425, 368, 472 & 500 V-8 engines is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential

Fits these vehicles 19

YearMakeModelEngine
1968 - 1974CadillacCalais7.7L 472 V8
1975 - 1976CadillacCalais8.2L 500 V8
1968 - 1974CadillacCommercial Chassis7.7L 472 V8
1975 - 1976CadillacCommercial Chassis8.2L 500 V8
1977 - 1979CadillacCommercial Chassis7.0L 425 V8
1980 - 1984CadillacCommercial Chassis6.0L 368 V8
1968 - 1974CadillacDeVille7.7L 472 V8
1975 - 1976CadillacDeVille8.2L 500 V8
1977 - 1979CadillacDeVille7.0L 425 V8
1980 - 1981CadillacDeVille6.0L 368 V8
1968 - 1969CadillacEldorado7.7L 472 V8
1970 - 1976CadillacEldorado8.2L 500 V8
1977 - 1978CadillacEldorado7.0L 425 V8
1980 - 1981CadillacEldorado6.0L 368 V8
1968 - 1974CadillacFleetwood7.7L 472 V8
1975 - 1976CadillacFleetwood8.2L 500 V8
1977 - 1979CadillacFleetwood7.0L 425 V8
1980 - 1984CadillacFleetwood6.0L 368 V8
1980 - 1981CadillacSeville6.0L 368 V8
