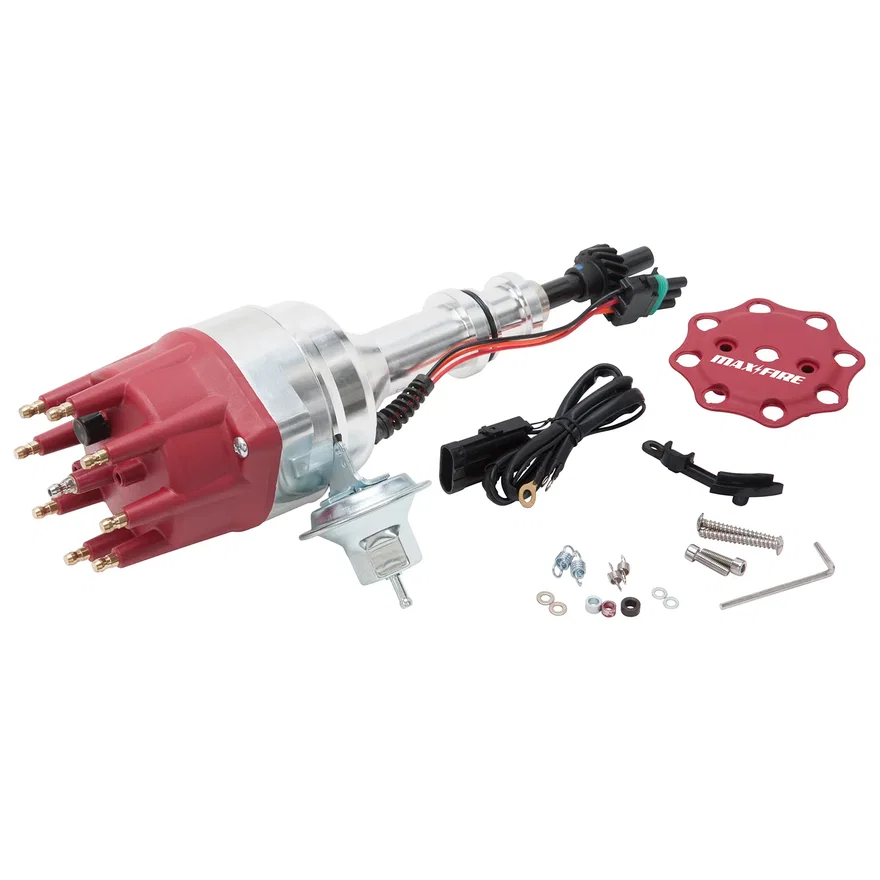

Edelbrock Max-Fire® Distributor for Ford 351C V8

Part # 22756SKU EDE22756

Set your vehicle above for a fit verdict. 22 vehicles listed below.

Specifications
BrandEdelbrock
Part typeDistributor
Advance TypeVacuum and Mechanical
Cap ColorRED
Coil Wire IncludedYes
ColorRed
Distributor Cap IncludedYes
Gear MaterialHARDENED IRON
Grade TypePerformance
Ignition Box RequiredNo
Ignition Coil IncludedNo
Ignition Rotor IncludedYes
Marine ApprovedNo
Rotor RotationCounterclockwise
Trigger TypeMagnetic
UPC / GTIN00085347227563

Description

Edelbrock part #22756 Max-Fire distributor for Ford 351C V-8 engines is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential

Fits these vehicles 22

YearMakeModelEngine
1971 - 1974DeTomasoPantera
1981 - 1986DeTomasoPantera5.8L 351 V8
1969 - 1974FordCountry Sedan
1969 - 1974FordCountry Squire
1969 - 1972FordCustom
1969 - 1974FordCustom 500
1969 - 1970FordFairlane
1970FordFalcon
1969 - 1974FordGalaxie 500
1972 - 1974FordGran Torino
1969 - 1974FordLTD
1969 - 1973FordMustang
1969 - 1974FordRanchero
1969 - 1974FordRanch Wagon
1970 - 1974FordTorino
1970 - 1974MercuryColony Park
1969MercuryComet
1970 - 1974MercuryCougar
1969 - 1971MercuryCyclone
1970 - 1974MercuryMarquis
1969 - 1974MercuryMontego
1970 - 1974MercuryMonterey
