| Brand | Mallory |
|---|---|
| Part type | Ignition Coil |
| Brand | Mallory |
| C.A.R.B. EO # | D-70-22 |
| Category | Ignition |
| Emission Code | 1 |
| Inductance | 7.5 mH |
| Maximum Voltage | 49,000 volts |
| part type | Ignition Coil |
| Peak Current | 66 mA |
| Primary Resistance | .6 ohms |
| Product Type | Coil |
| Secondary Resistance | 11.3K OHMS |
| Spark Duration | 3,600 uS |
| Sub Category | Ignition Coil |
| Turns Ratio | 94:1 |
| UPC / GTIN | 00085132294404 |
- Classic good looks
- High current / voltage output
- Spark plug style terminal for excellent coil wire retention
- Brass contact terminals
- Mounting bracket included
- Can be used on inductive and CD ignitions
Description

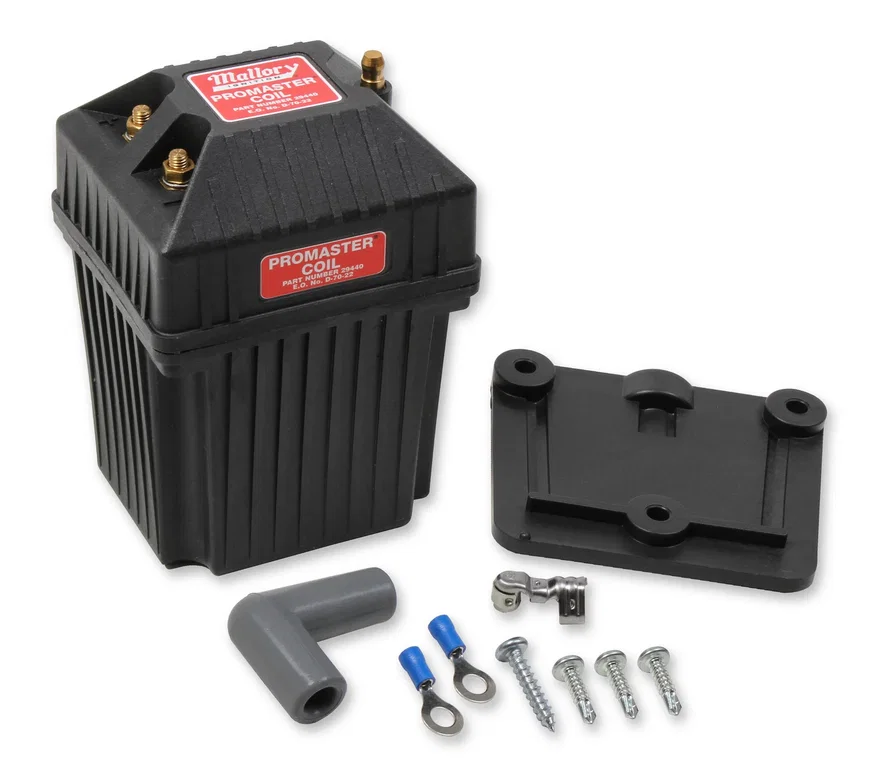

The Mallory Promaster Classic series ignition coil is designed to meet today's specialized ignition requirements. This coil features a faster rise time and increased spark duration (compared to stock) to increase performance. It has a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This coil also offers excellent wire retention with a spark plug type secondary post, and brass contact terminals.
