| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Round |
| Coil Type | No |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Black |
| Finish | Semi-Gloss |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Maximum Diameter | 2.15 in |
| Maximum Voltage | 40000 |
| Mount Type | Circular Bracket |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Position | Vertical |
| Overall Height | 6 in |
| Primary Inductance | 9.86 |
| Primary Resistance | 3 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 8500 Ohms |
| Turns Ratio | 80:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342004903 |
- 40,000 volts.
- Available chrome plated or black for that "stock look".
- For use with inductive ignition systems.
- 1.5 or 3.0 Ohm primary resistance values available.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Description

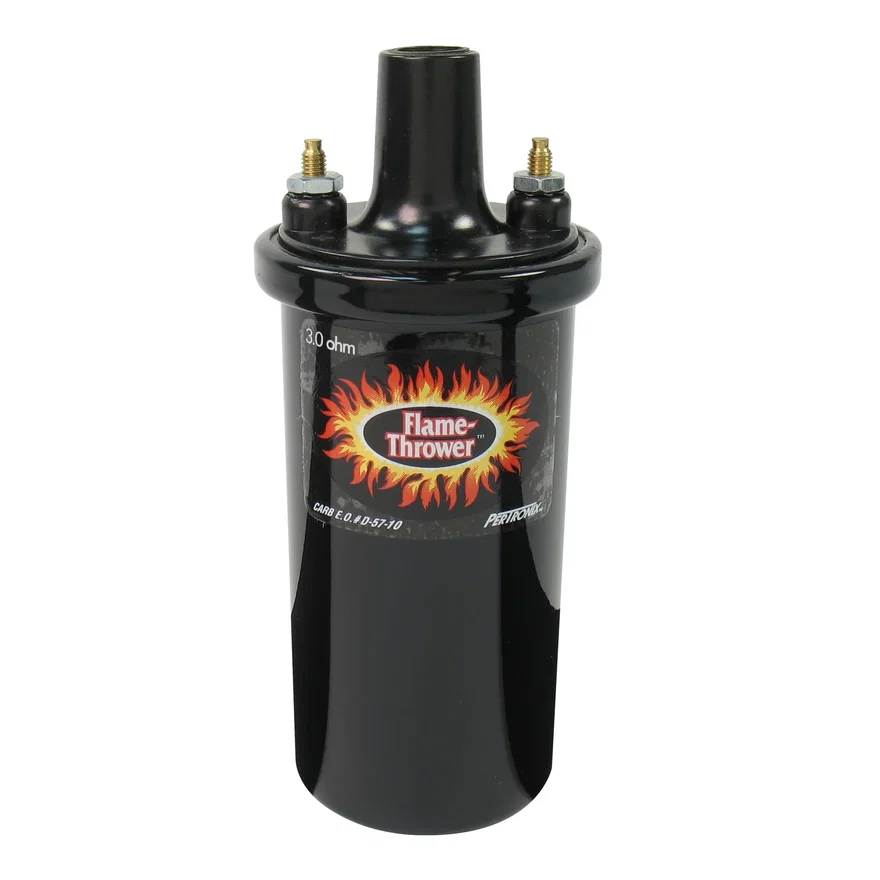

The Flame Thrower canister coil is designed to mate with the Ignitor Electronic Conversion Kit, but can benefit virtually any distributor type inductive systems. Higher voltage allows larger spark plug gap for added power, smoother response, and improved fuel economy.
