| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Oil-Filled |
| Coil Shape | Round |
| Coil Type | Remote Mount Canister |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Chrome |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Finish | Polished |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Maximum Diameter | 2.15 in |
| Maximum Voltage | 45000 |
| Mount Type | Circular Bracket |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Mounting Position | Vertical |
| Overall Height | 6 in |
| Primary Inductance | 6.25 |
| Primary Resistance | 0.6 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 9000 Ohms |
| Turns Ratio | 100:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342007591 |
- 45,000 volts.
- Available chrome plated or black for that "stock look".
- For use with inductive or CD ignition systems.
- Low 0.6 Ohm primary resistance.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Description

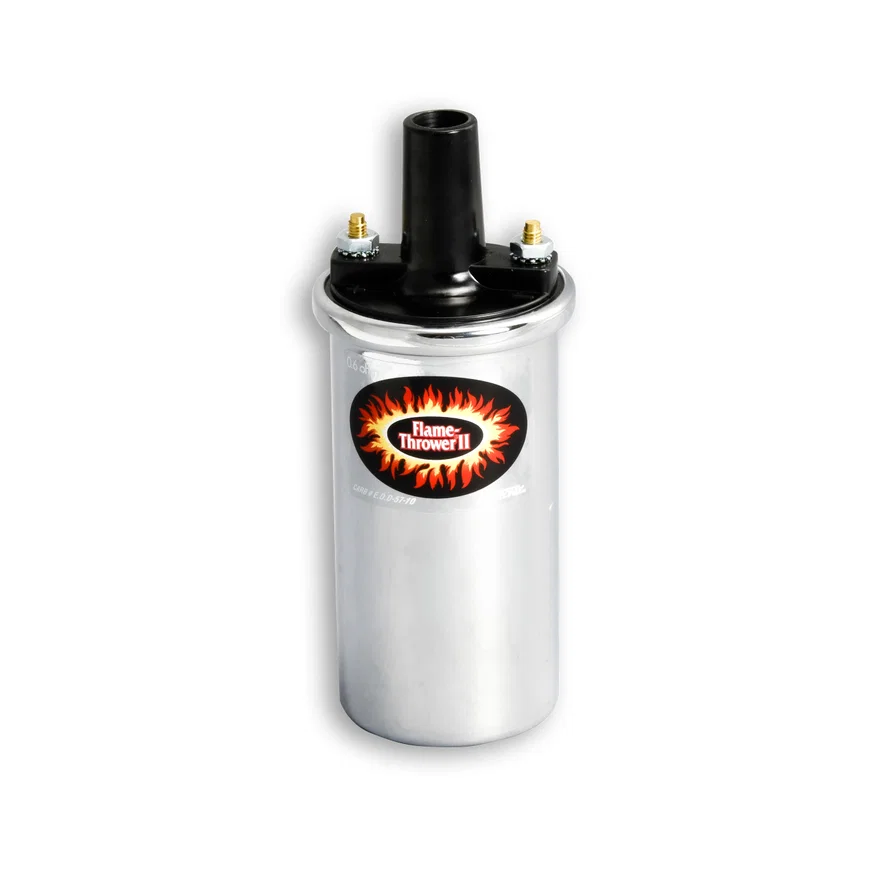

Flame Thrower II Canister Coils feature a very low resistance which make the the ideal coil for Ignitor II Electronic Ignition Conversion Kit as well as many other high performance ignitions. Low resistance, higher voltage enables you to run larher spark plug gaps for added power and improved fuel economy.
