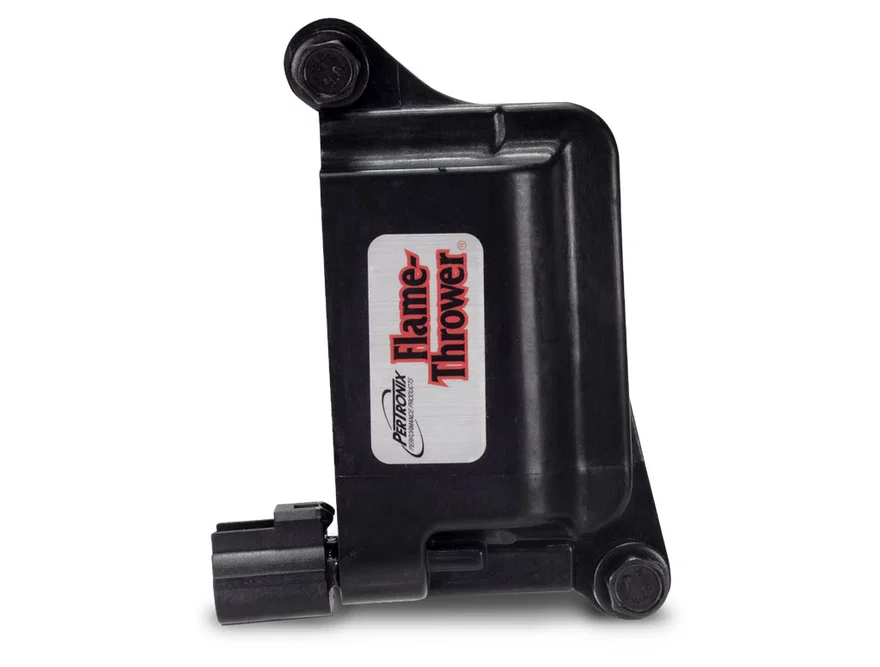

Pertronix Coil Flame-Thrower Chrysler Hemi 5.7L;Dual Boot;single; 2006-20
Part # 30921SKU PER30921
Set your vehicle above for a fit verdict. 33 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Same as Factory |
| Coil Type | Coil Pack |
| Coil Wire Attachment | Coil-on-Plug |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 4 - This Product is considered a Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer’s Application Guide and Installation Instructions. |
| Finish | Matte |
| Grade Type | Stock Replacement |
| Ignition Type | Computer Controlled |
| Maximum Voltage | 30000 |
| Mount Type | Factory |
| Mounting Bracket Included | Integrated |
| Mounting Hardware Included | No |
| Mounting Position | Factory |
| Primary Inductance | 2.4 |
| Primary Resistance | 0.42 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 16000 Ohms |
| Turns Ratio | 65:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342555146 |
- 30,000 Volts. Direct OEM replacement.
- Optimized coil design yields at least 15% more energy available for the spark than the most common OEM coils.
- Provides the spark energy throughout the RPM range and with no energy degradation up to 11,000 engine RPMs. Plated Copper terminals for added current conduction.
- Moisture resistant construction ensures long life in harsh environments. High-temp boot sustains seal and form. Epoxy molded for shock and vibration resistance.
- Limited One Year Warranty.
Description
Flame Thrower Coils feature an optimized coil design which increases the spark energy by 15% over OEM coils.
More from Pertronix
| 40011 | $95.99 |
| 40111 | $107.99 |
| 40511 | $95.99 |
| 44011 | $106.99 |
| 45011 | $104.99 |
| 45111 | $117.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2005 - 2010 | Chrysler | 300 | 5.7L 345 V8, 6.1L 370 V8 |
| 2011 | Chrysler | 300 | 5.7L 345 V8 |
| 2012 - 2014 | Chrysler | 300 | 5.7L 345 V8, 6.4L 392 V8 |
| 2015 - 2022 | Chrysler | 300 | 5.7L 345 V8 |
| 2007 - 2009 | Chrysler | Aspen | 4.7L 287 V8, 5.7L 345 V8 |
| 2008 | Dodge | Challenger | 6.1L 370 V8 |
| 2009 - 2010 | Dodge | Challenger | 5.7L 345 V8, 6.1L 370 V8 |
| 2011 - 2014 | Dodge | Challenger | 5.7L 345 V8, 6.4L 392 V8 |
| 2015 - 2018 | Dodge | Challenger | 5.7L 345 V8, 6.2L 376 V8, 6.4L 392 V8 |
| 2006 - 2010 | Dodge | Charger | 5.7L 345 V8, 6.1L 370 V8 |
| 2011 | Dodge | Charger | 5.7L 345 V8 |
| 2012 - 2014 | Dodge | Charger | 5.7L 345 V8, 6.4L 392 V8 |
| 2015 - 2022 | Dodge | Charger | 5.7L 345 V8, 6.2L 376 V8, 6.4L 392 V8 |
| 2006 - 2009 | Dodge | Durango | 4.7L 287 V8, 5.7L 345 V8 |
| 2011 - 2017 | Dodge | Durango | 5.7L 345 V8 |
| 2018 - 2020 | Dodge | Durango | 5.7L 345 V8, 6.4L 392 V8 |
| 2021 | Dodge | Durango | 5.7L 345 V8, 6.2L 376 V8, 6.4L 392 V8 |
| 2022 | Dodge | Durango | 5.7L 345 V8, 6.4L 392 V8 |
| 2006 - 2008 | Dodge | Magnum | 5.7L 345 V8, 6.1L 370 V8 |
| 2006 - 2010 | Dodge | Ram 1500 | 4.7L 287 V8, 5.7L 345 V8 |
| 2006 - 2010 | Dodge | Ram 2500 | 4.7L 287 V8, 5.7L 345 V8 |
| 2009 | Dodge | Ram 3500 | 5.7L 345 V8 |
| 2006 - 2010 | Jeep | Commander | 4.7L 287 V8, 5.7L 345 V8 |
| 2006 - 2010 | Jeep | Grand Cherokee | 4.7L 287 V8, 5.7L 345 V8, 6.1L 370 V8 |
| 2011 | Jeep | Grand Cherokee | 5.7L 345 V8 |
| 2012 - 2017 | Jeep | Grand Cherokee | 5.7L 345 V8, 6.4L 392 V8 |
| 2018 - 2021 | Jeep | Grand Cherokee | 5.7L 345 V8, 6.2L 376 V8, 6.4L 392 V8 |
| 2022 | Jeep | Grand Cherokee | 5.7L 345 V8 |
| 2021 - 2022 | Jeep | Grand Cherokee L | 5.7L 345 V8 |
| 2021 - 2022 | Jeep | Wrangler | 6.4L 392 V8 |
| 2011 - 2013 | Ram | 1500 | 4.7L 287 V8, 5.7L 345 V8 |
| 2011 - 2013 | Ram | 2500 | 4.7L 287 V8, 5.7L 345 V8 |
| 2011 - 2012 | Ram | 3500 | 5.7L 345 V8 |
