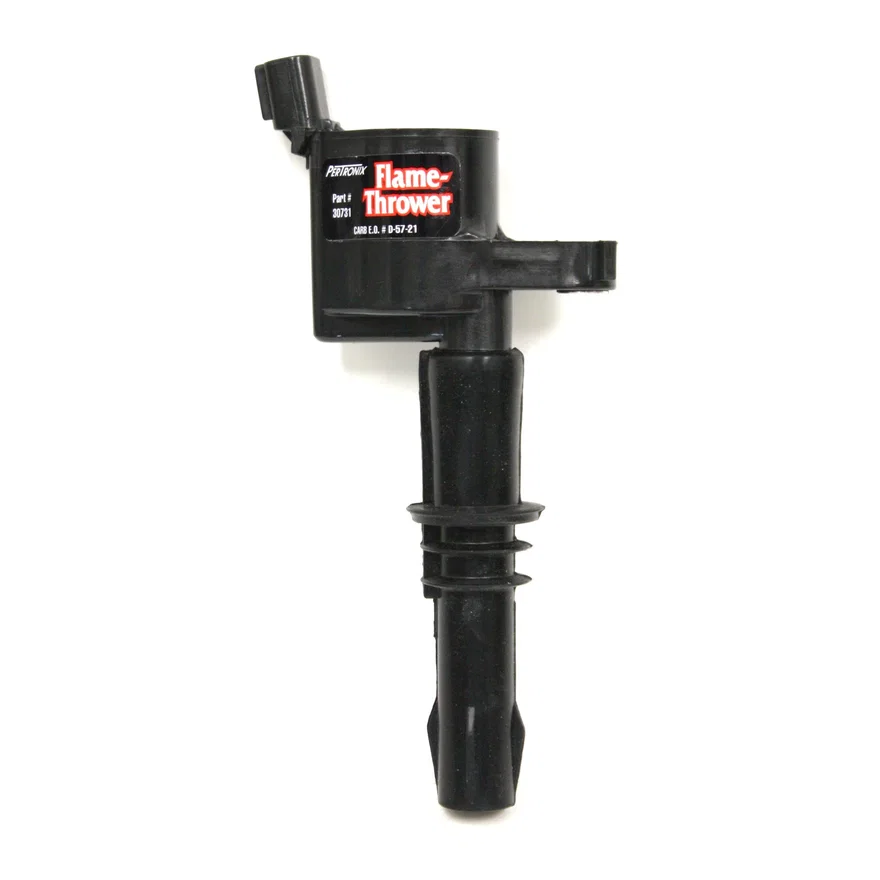

Pertronix Coil Flame-Thrower COP Ford 3V Early
Part # 30731SKU PER30731
Set your vehicle above for a fit verdict. 11 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Coil Wire Attachment | Coil-on-Plug |
| Coil Wire Included | No |
| Finish | Matte |
| Grade Type | Stock Replacement |
| Ignition Type | Computer Controlled |
| Maximum Voltage | 30000 |
| Mount Type | Factory |
| Mounting Bracket Included | Integrated |
| Mounting Hardware Included | No |
| Mounting Position | Factory |
| Primary Inductance | 1.5 |
| Primary Resistance | 0.56 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 5900 Ohms |
| Turns Ratio | 70:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342537371 |
- 30,000 Volts. Direct OEM replacement.
- Optimized coil design yields at least 15% more energy available for the spark than the most common OEM coils.
- Provides the spark energy throughout the RPM range and with no energy degradation up to 11,000 engine RPMs. Plated Copper terminals for added current conduction.
- Moisture resistant construction ensures long life in harsh environments. High-temp boot sustains seal and form. Epoxy molded for shock and vibration resistance.
- Limited One Year Warranty.
Description
Flame Thrower Coils feature an optimized coil design for improved spark energy. This design increases the spark energy by 15% over OEM coils. Molded to prevent premature failure from moisture or winding fatigue. Direct OEM replacement connections mean simple installation. Available individually or in sets of 8.
More from Pertronix
| 40011 | $95.99 |
| 40111 | $107.99 |
| 40511 | $95.99 |
| 44011 | $106.99 |
| 45011 | $104.99 |
| 45111 | $117.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2006 - 2007 | Avanti | Avanti | 4.6L 281 V8 |
| 2005 - 2008 | Ford | Expedition | 5.4L 330 V8 |
| 2006 - 2008 | Ford | Explorer | 4.6L 281 V8 |
| 2007 - 2008 | Ford | Explorer Sport Trac | 4.6L 281 V8 |
| 2005 - 2008 | Ford | F-150 | 5.4L 330 V8 |
| 2005 - 2008 | Ford | F-250 Super Duty | 5.4L 330 V8 |
| 2005 - 2008 | Ford | F-350 Super Duty | 5.4L 330 V8 |
| 2005 - 2008 | Ford | Mustang | 4.6L 281 V8 |
| 2006 - 2008 | Lincoln | Mark LT | 5.4L 330 V8 |
| 2005 - 2008 | Lincoln | Navigator | 5.4L 330 V8 |
| 2006 - 2008 | Mercury | Mountaineer | 4.6L 281 V8 |
