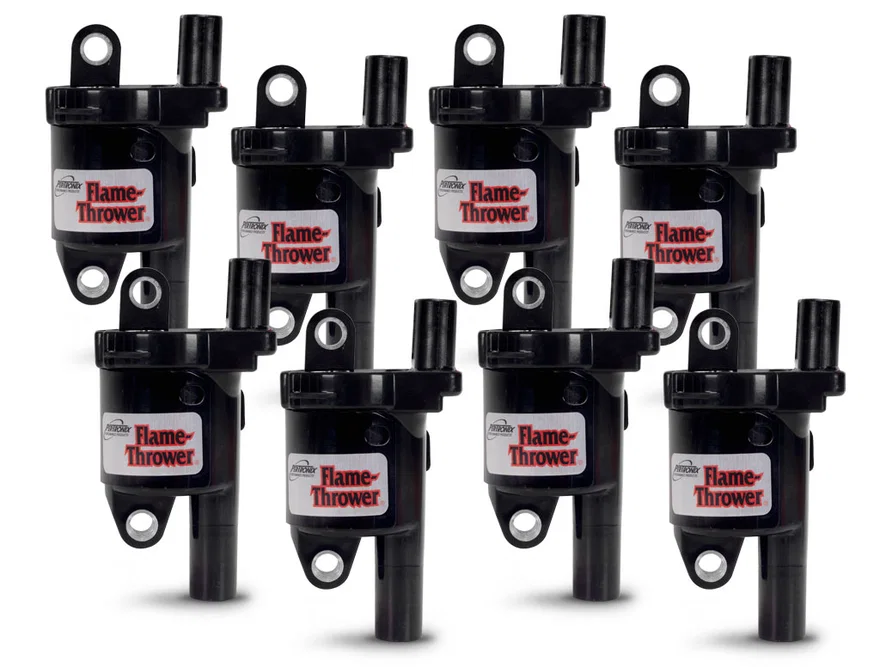

Pertronix Coil Flame-Thrower GM Gem V LT1 Round; Set of 8; 2014-2020 for Chevrolet
Part # 30868SKU PER30868
Set your vehicle above for a fit verdict. 6 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Same as Factory |
| Coil Type | Coil Pack |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 4 - This Product is considered a Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer’s Application Guide and Installation Instructions. |
| Finish | Matte |
| Grade Type | Stock Replacement |
| Ignition Type | Computer Controlled |
| Maximum Voltage | 30000 |
| Mount Type | Factory |
| Mounting Bracket Included | Integrated |
| Mounting Hardware Included | No |
| Mounting Position | Factory |
| Primary Inductance | 2.5 |
| Primary Resistance | 0.6 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 10000 Ohms |
| Turns Ratio | 95:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342555016 |
- Coils feature advanced bobbin technology with highly specialized silicone magnetic steel cores
- Optimized coil design yields at least 10-15 per cent more energy available for the spark than the most common OEM coils.
- Specialized high temperature epoxy resists shock and vibration while increasing thermal conductivity
- Coils offer a direct performance bolt on upgrade
- Limited One Year Warranty.
Description
Flame Thrower Coils feature an optimized coil design for improved spark energy. This design increases the spark energy by 15% over OEM coils. Molded to prevent premature failure from moisture or winding fatigue. Direct OEM replacement connections mean simple installation. Available individually or in sets of 8.
More from Pertronix
| 40011 | $95.99 |
| 40111 | $107.99 |
| 40511 | $95.99 |
| 44011 | $106.99 |
| 45011 | $104.99 |
| 45111 | $117.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2016 - 2021 | Chevrolet | Camaro | 6.2L 376 V8 |
| 2014 - 2019 | Chevrolet | Corvette | 6.2L 376 V8 |
| 2014 - 2021 | Chevrolet | Silverado 1500 | 4.3L 262 V6, 5.3L 325 V8, 6.2L 376 V8 |
| 2014 - 2017 | Chevrolet | SS | 6.2L 376 V8 |
| 2015 - 2022 | Chevrolet | Suburban | 5.3L 325 V8 |
| 2015 - 2022 | Chevrolet | Tahoe | 5.3L 325 V8 |
