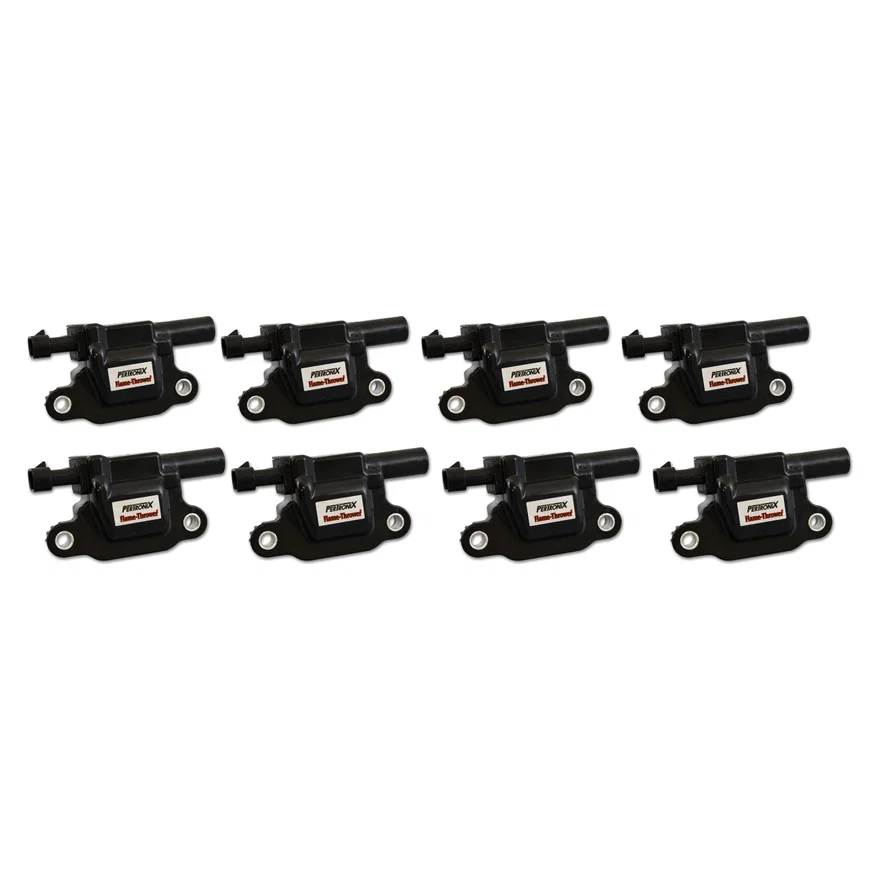

Pertronix Coil Flame-Thrower GM Gem V LT1 Square; Set of 8; 2014-2020
Part # 30858SKU PER30858
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Same as Factory |
| Coil Type | Coil Pack |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 2 - This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows; 1965 and Older US Manufactured California Certified Vehicles, 1967 and Older US Manufactured Federally Certified Vehicles, 1967 and Older Foreign Manufactured Vehicles |
| Finish | Matte |
| Grade Type | Stock Replacement |
| Ignition Type | Computer Controlled |
| Maximum Voltage | 30000 |
| Mount Type | Factory |
| Mounting Bracket Included | Integrated |
| Mounting Hardware Included | No |
| Mounting Position | Factory |
| Primary Inductance | 2.3 |
| Primary Resistance | 0.4 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 6000 Ohms |
| Turns Ratio | 80:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342554996 |
- Coils feature advanced bobbin technology with highly specialized silicone magnetic steel cores
- Optimized coil design yields at least 10-15 per cent more energy available for the spark than the most common OEM coils.
- Specialized high temperature epoxy resists shock and vibration while increasing thermal conductivity
- Coils offer a direct performance bolt on upgrade
- Limited One Year Warranty.
Description
Flame Thrower Coils feature an optimized coil design for improved spark energy. This design increases the spark energy by 15% over OEM coils. Molded to prevent premature failure from moisture or winding fatigue. Direct OEM replacement connections mean simple installation. Available individually or in sets of 8.
