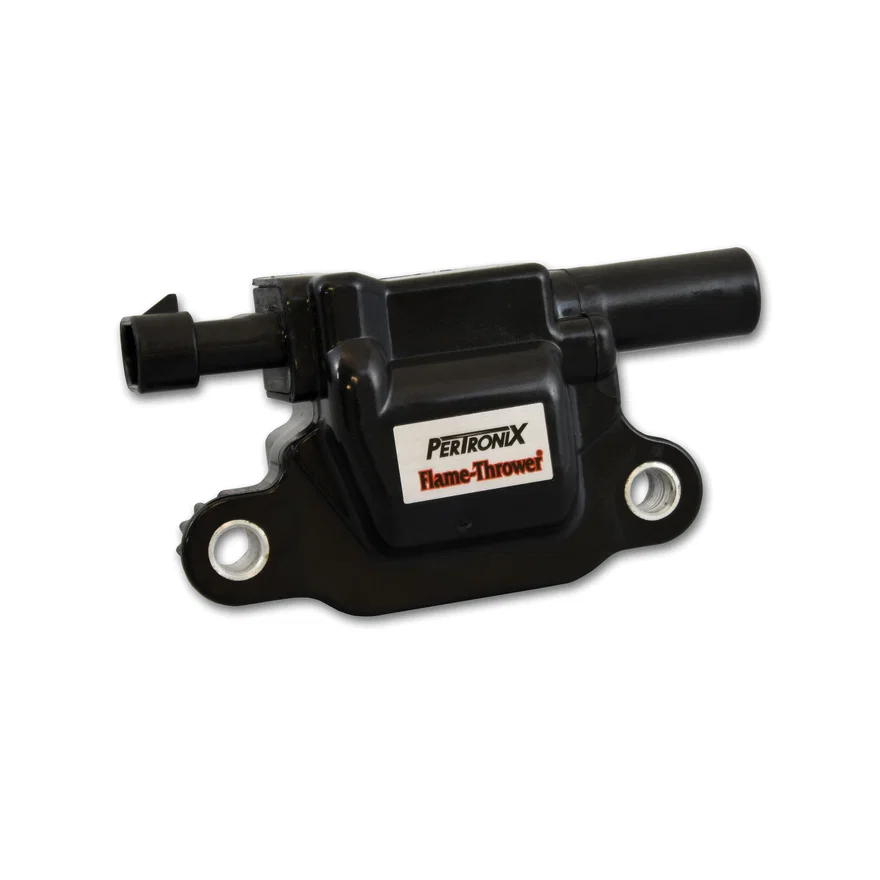

Pertronix Coil Flame-Thrower GM Gem V LT1 Square; Single coil; 2014-2020

Part # 30851SKU PER30851

Set your vehicle above for a fit verdict. 2 vehicles listed below.

Specifications
BrandPertronix
Part typeIgnition Coil
Ballast Resistor IncludedNo
Coil Internal ConstructionEpoxy
Coil ShapeSame as Factory
Coil TypeCoil Pack
Coil Wire AttachmentFemale/Socket
Coil Wire IncludedNo
ColorBlack
EmissionFullDES2 - This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows; 1965 and Older US Manufactured California Certified Vehicles, 1967 and Older US Manufactured Federally Certified Vehicles, 1967 and Older Foreign Manufactured Vehicles
FinishMatte
Grade TypeStock Replacement
Ignition TypeComputer Controlled
Maximum Voltage30000
Mount TypeFactory
Mounting Bracket IncludedIntegrated
Mounting Hardware IncludedNo
Mounting PositionFactory
Primary Inductance2.3
Primary Resistance0.4 Ohms
Requires External ResistorNo
Secondary Resistance6000 Ohms
Turns Ratio80:1
Voltage12
UPC / GTIN00694342554989
  • Coils feature advanced bobbin technology with highly specialized silicone magnetic steel cores
  • Optimized coil design yields at least 10-15 per cent more energy available for the spark than the most common OEM coils.
  • Specialized high temperature epoxy resists shock and vibration while increasing thermal conductivity
  • Coils offer a direct performance bolt on upgrade
  • Limited One Year Warranty.

Description

Direct OEM replacement form factor and connections means simple installation. Available individually or in sets of 8

Fits these vehicles 2

YearMakeModelSubmodelEngine
2016 - 2018CadillacCTSV6.2L 376 V8
2021ChevroletCorvette-6.2L 376 V8
