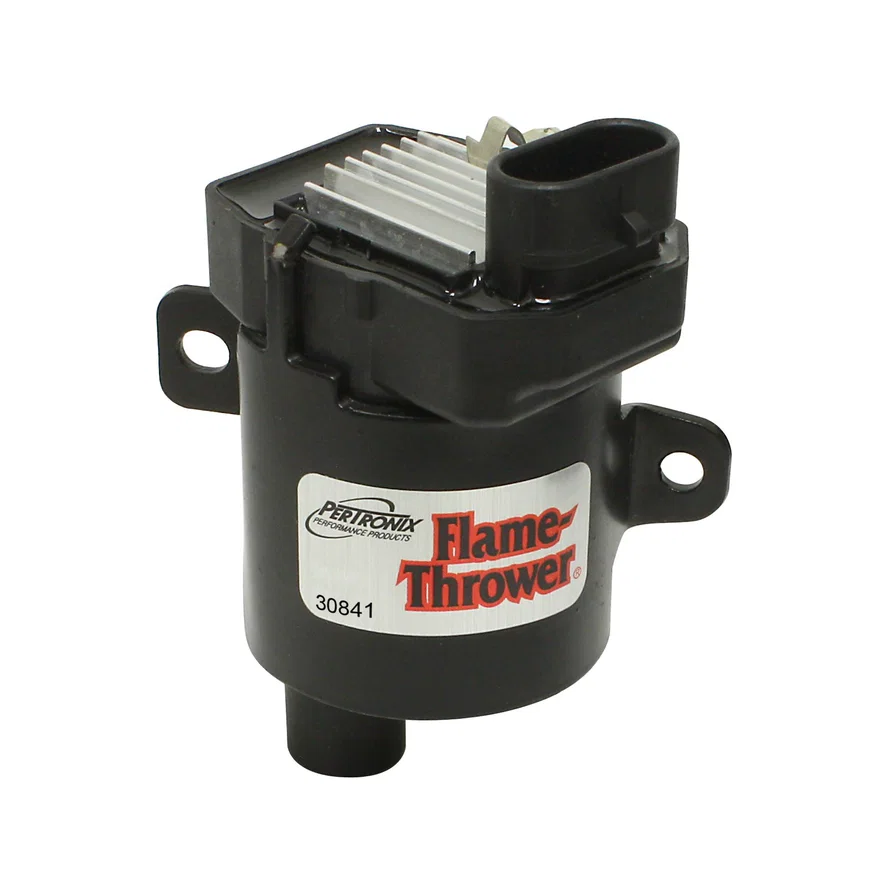

Pertronix Coil Flame-Thrower GM LS Truck
Part # 30841SKU PER30841
Set your vehicle above for a fit verdict. 71 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 4 - This Product is considered a Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer’s Application Guide and Installation Instructions. |
| Finish | Matte |
| Grade Type | Stock Replacement |
| Ignition Type | Computer Controlled |
| Maximum Voltage | 35000 |
| Mount Type | Factory |
| Mounting Bracket Included | Integrated |
| Mounting Hardware Included | No |
| Mounting Position | Factory |
| Primary Inductance | 4.5 |
| Primary Resistance | 1 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 11600 Ohms |
| Turns Ratio | 73:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342546212 |
- Coils feature advanced bobbin technology with highly specialized silicone magnetic steel cores
- Optimized coil design yields at least 10-15 per cent more energy available for the spark than the most common OEM coils.
- Specialized high temperature epoxy resists shock and vibration while increasing thermal conductivity
- Coils offer a direct performance bolt on upgrade
- Limited One Year Warranty.
Description
Direct OEM replacement form factor and connections means simple installation. Available individually or in sets of 8
More from Pertronix
| 40011 | $95.99 |
| 40111 | $107.99 |
| 40511 | $95.99 |
| 44011 | $106.99 |
| 45011 | $104.99 |
| 45111 | $117.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2004 - 2007 | Buick | Rainier | 5.3L 325 V8 |
| 2002 - 2005 | Cadillac | Escalade | 5.3L 325 V8, 6.0L 364 V8 |
| 2006 | Cadillac | Escalade | 6.0L 364 V8 |
| 2007 - 2008 | Cadillac | Escalade | 6.2L 376 V8 |
| 2003 - 2006 | Cadillac | Escalade ESV | 6.0L 364 V8 |
| 2007 - 2008 | Cadillac | Escalade ESV | 6.2L 376 V8 |
| 2002 - 2006 | Cadillac | Escalade EXT | 6.0L 364 V8 |
| 2007 - 2008 | Cadillac | Escalade EXT | 6.2L 376 V8 |
| 2007 - 2009 | Chevrolet | Avalanche | 5.3L 325 V8, 6.0L 364 V8 |
| 2002 - 2006 | Chevrolet | Avalanche 1500 | 5.3L 325 V8 |
| 2009 - 2012 | Chevrolet | Colorado | 5.3L 325 V8 |
| 1999 - 2002 | Chevrolet | Silverado 1500 | 4.8L 294 V8, 5.3L 325 V8 |
| 2003 - 2009 | Chevrolet | Silverado 1500 | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 1500 Classic | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2001 - 2003 | Chevrolet | Silverado 1500 HD | 6.0L 364 V8 |
| 2005 - 2006 | Chevrolet | Silverado 1500 HD | 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 1500 HD Classic | 6.0L 364 V8 |
| 1999 - 2000 | Chevrolet | Silverado 2500 | 5.3L 325 V8, 6.0L 364 V8 |
| 2001 - 2004 | Chevrolet | Silverado 2500 | 6.0L 364 V8 |
| 2001 - 2019 | Chevrolet | Silverado 2500 HD | 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 2500 HD Classic | 6.0L 364 V8 |
| 2001 - 2006 | Chevrolet | Silverado 3500 | 6.0L 364 V8 |
| 2007 | Chevrolet | Silverado 3500 Classic | 6.0L 364 V8 |
| 2007 - 2019 | Chevrolet | Silverado 3500 HD | 6.0L 364 V8 |
| 2003 - 2004 | Chevrolet | SSR | 5.3L 325 V8 |
| 2005 - 2006 | Chevrolet | SSR | 6.0L 364 V8 |
| 2000 - 2005 | Chevrolet | Suburban 1500 | 5.3L 325 V8 |
| 2006 - 2009 | Chevrolet | Suburban 1500 | 5.3L 325 V8, 6.0L 364 V8 |
| 2000 - 2009 | Chevrolet | Suburban 2500 | 6.0L 364 V8 |
| 2016 - 2018 | Chevrolet | Suburban 3500 HD | 6.0L 364 V8 |
| 2000 - 2007 | Chevrolet | Tahoe | 4.8L 294 V8, 5.3L 325 V8 |
| 2008 | Chevrolet | Tahoe | 4.8L 294 V8, 5.3L 325 V8, 6.2L 376 V8 |
| 2009 | Chevrolet | Tahoe | 4.8L 294 V8, 5.3L 325 V8 |
| 2006 - 2008 | Chevrolet | Trailblazer | 5.3L 325 V8, 6.0L 364 V8 |
| 2009 | Chevrolet | Trailblazer | 6.0L 364 V8 |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | 5.3L 325 V8 |
| 2009 - 2012 | GMC | Canyon | 5.3L 325 V8 |
| 2005 - 2009 | GMC | Envoy | 5.3L 325 V8 |
| 2003 - 2006 | GMC | Envoy XL | 5.3L 325 V8 |
| 2004 - 2005 | GMC | Envoy XUV | 5.3L 325 V8 |
| 1999 - 2000 | GMC | Sierra 1500 | 4.8L 294 V8, 5.3L 325 V8 |
| 2001 - 2006 | GMC | Sierra 1500 | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 - 2008 | GMC | Sierra 1500 | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2009 | GMC | Sierra 1500 | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 | GMC | Sierra 1500 Classic | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2001 - 2003 | GMC | Sierra 1500 HD | 6.0L 364 V8 |
| 2005 - 2006 | GMC | Sierra 1500 HD | 6.0L 364 V8 |
| 2007 | GMC | Sierra 1500 HD Classic | 6.0L 364 V8 |
| 1999 - 2000 | GMC | Sierra 2500 | 5.3L 325 V8, 6.0L 364 V8 |
| 2001 - 2004 | GMC | Sierra 2500 | 6.0L 364 V8 |
| 2001 - 2019 | GMC | Sierra 2500 HD | 6.0L 364 V8 |
| 2007 | GMC | Sierra 2500 HD Classic | 6.0L 364 V8 |
| 2001 - 2006 | GMC | Sierra 3500 | 6.0L 364 V8 |
| 2007 | GMC | Sierra 3500 Classic | 6.0L 364 V8 |
| 2007 - 2019 | GMC | Sierra 3500 HD | 6.0L 364 V8 |
| 2000 | GMC | Yukon | 4.8L 294 V8, 5.3L 325 V8 |
| 2001 - 2006 | GMC | Yukon | 4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8 |
| 2007 - 2008 | GMC | Yukon | 4.8L 294 V8, 5.3L 325 V8, 6.2L 376 V8 |
| 2009 | GMC | Yukon | 4.8L 294 V8, 5.3L 325 V8 |
| 2000 | GMC | Yukon XL 1500 | 5.3L 325 V8 |
| 2001 - 2006 | GMC | Yukon XL 1500 | 5.3L 325 V8, 6.0L 364 V8 |
| 2007 - 2008 | GMC | Yukon XL 1500 | 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8 |
| 2009 | GMC | Yukon XL 1500 | 5.3L 325 V8, 6.0L 364 V8 |
| 2000 - 2009 | GMC | Yukon XL 2500 | 6.0L 364 V8 |
| 2003 - 2007 | Hummer | H2 | 6.0L 364 V8 |
| 2008 | Hummer | H2 | 6.2L 376 V8 |
| 2008 - 2009 | Hummer | H3 | 5.3L 325 V8 |
| 2009 | Hummer | H3T | 5.3L 325 V8 |
| 2003 - 2006 | Isuzu | Ascender | 5.3L 325 V8 |
| 2005 - 2007 | Saab | 9-7x | 5.3L 325 V8 |
| 2008 - 2009 | Saab | 9-7x | 5.3L 325 V8, 6.0L 364 V8 |
