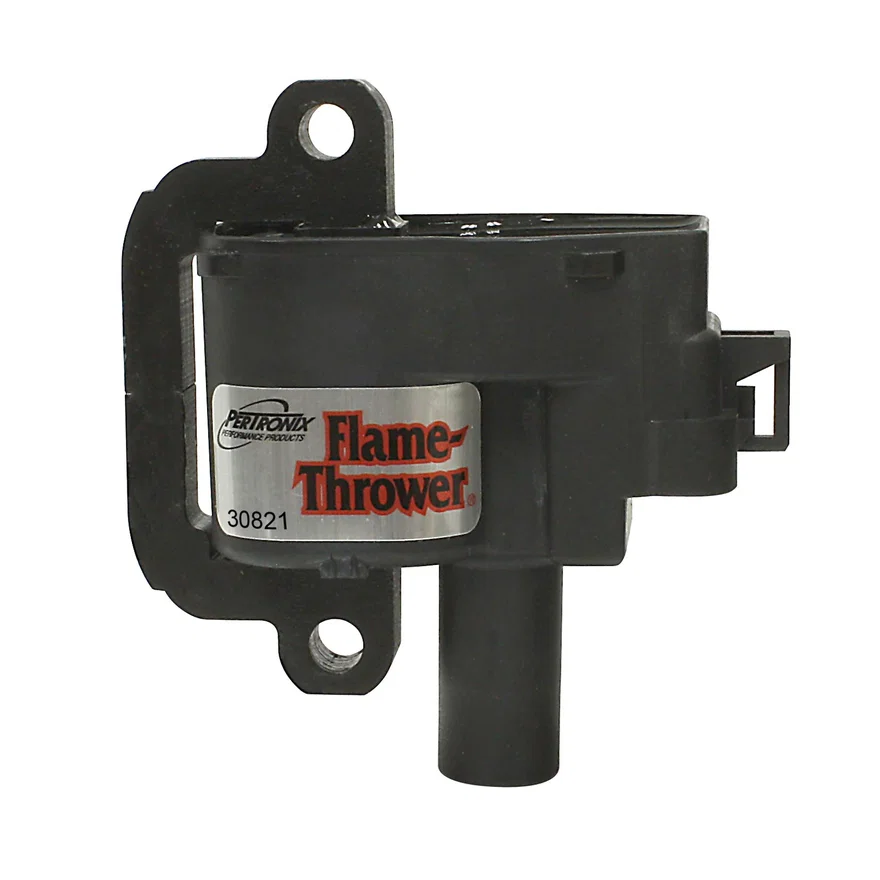

Pertronix Coil Flame-Thrower GM LS1/LS6
Part # 30821SKU PER30821
Set your vehicle above for a fit verdict. 6 vehicles listed below.
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Color | Black |
| Finish | Matte |
| Grade Type | Stock Replacement |
| Ignition Type | Computer Controlled |
| Maximum Voltage | 30000 |
| Mount Type | Factory |
| Mounting Bracket Included | Integrated |
| Mounting Hardware Included | No |
| Mounting Position | Factory |
| Primary Inductance | 3.6 |
| Primary Resistance | 0.8 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 7500 Ohms |
| Turns Ratio | 58:1 |
| Voltage | 12 |
| UPC / GTIN | 00694342546199 |
- Coils feature advanced bobbin technology with highly specialized silicone magnetic steel cores
- Optimized coil design yields at least 10-15 per cent more energy available for the spark than the most common OEM coils.
- Specialized high temperature epoxy resists shock and vibration while increasing thermal conductivity
- Coils offer a direct performance bolt on upgrade
- Limited One Year Warranty.
Description
Direct OEM replacement form factor and connections means simple installation. Available individually or in sets of 8
More from Pertronix
| 40011 | $95.99 |
| 40111 | $107.99 |
| 40511 | $95.99 |
| 44011 | $106.99 |
| 45011 | $104.99 |
| 45111 | $117.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2001 - 2004 | Avanti | II | 5.7L 350 V8 |
| 2004 - 2005 | Cadillac | CTS | 5.7L 346 V8 |
| 1998 - 2002 | Chevrolet | Camaro | 5.7L 350 V8 |
| 1997 - 2004 | Chevrolet | Corvette | 5.7L 350 V8 |
| 1998 - 2002 | Pontiac | Firebird | 5.7L 350 V8 |
| 2004 | Pontiac | GTO | 5.7L 350 V8 |
