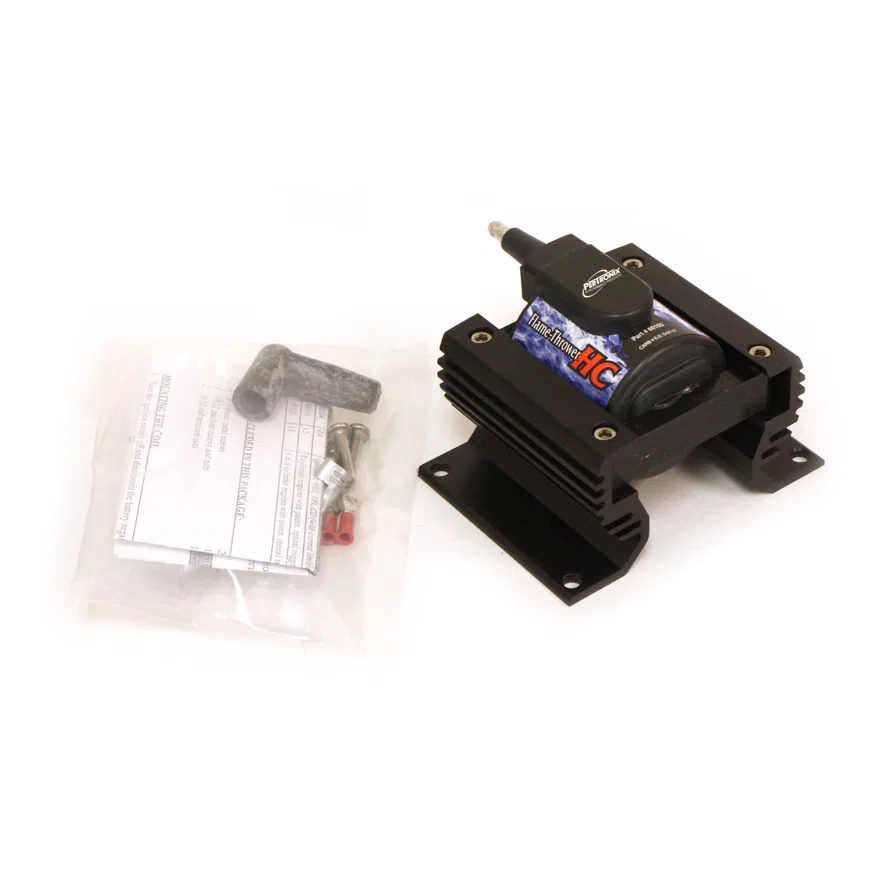

Pertronix Coil Flame-Thrower HC E-Core (0.32 ohm)
Part # 60103SKU PER60103
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Type | Remote Mount E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Finish | Semi-Gloss /Matte |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Length | 4.6 in |
| Maximum Voltage | 60000 |
| Mount Type | Integrated Bracket |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Position | Horizontal |
| Overall Height | 3.15 in |
| Primary Inductance | 2.5 |
| Primary Resistance | 0.32 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 7000 Ohms |
| Turns Ratio | 110:1 |
| Voltage | 12 |
| Width | 4.65 in |
| UPC / GTIN | 00694342520489 |
- 60,000 volts.
- Highly efficient E-core design.
- Vacuum potted coil body for longer life and increased reliability.
- 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
- Precision machined male high tension terminal and brass primary terminals.
Description
HC (High Current) E-core coils are engineered specifically for our Ignitor III Electronic Ignition Conversion kit. HC coils have a high turn ratio and ultra-low primary resistance enabling the ignition system to charge faster at high RPM's.
