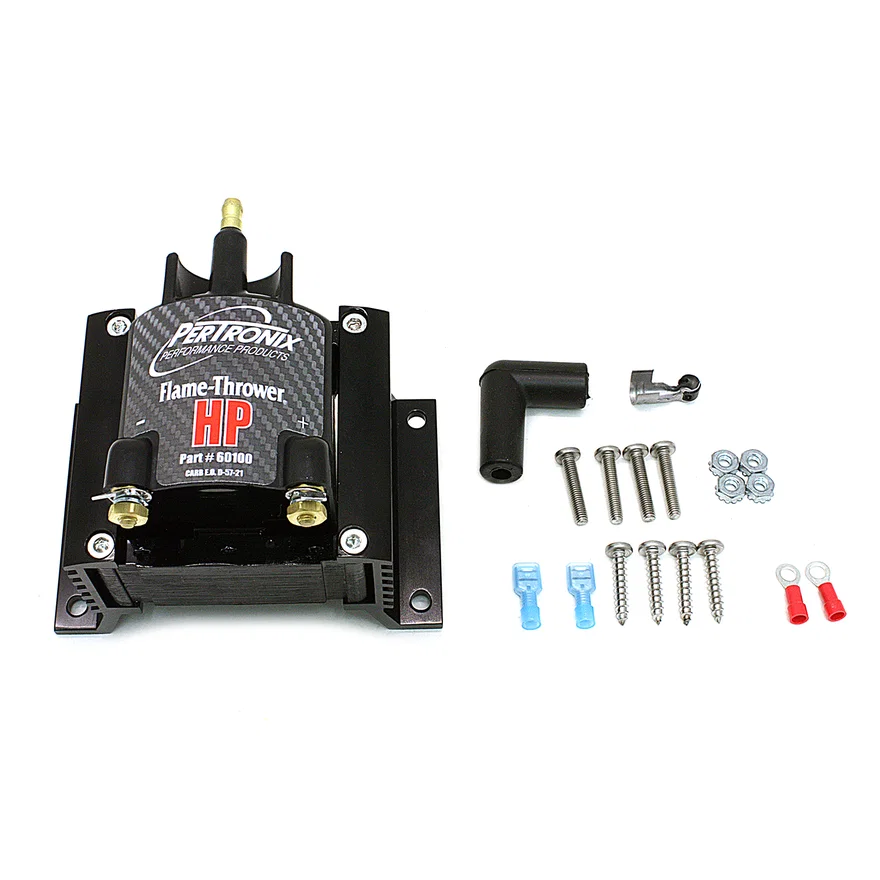

Pertronix Coil Flame-Thrower HP E-Core (0.2 ohm)
Part # 60100SKU PER60100
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Type | No |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Finish | Semi-Gloss /Matte |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Length | 4 in |
| Maximum Voltage | 50000 |
| Mount Type | Integrated Bracket |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Position | Horizontal |
| Overall Height | 3.75 in |
| Primary Inductance | 7 |
| Primary Resistance | 0.2 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 1380 Ohms |
| Turns Ratio | 100:1 |
| Voltage | 12 |
| Width | 4.75 in |
| UPC / GTIN | 00694342550844 |
- 50,000 volts.
- Highly efficient E-core design.
- Vacuum potted coil body for longer life and increased reliability.
- 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
- Precision machined male high tension terminal and brass primary terminals.
Description
HP (High Power) E-Core coils were specifically designed for use with the PerTronix Digital HP Ignition. The larger epoxy encapsulated coil body, more substantial steel E-core, and 6063 T5 aluminum heat sink, enable it to meet the demands of high RPM CD systems.
