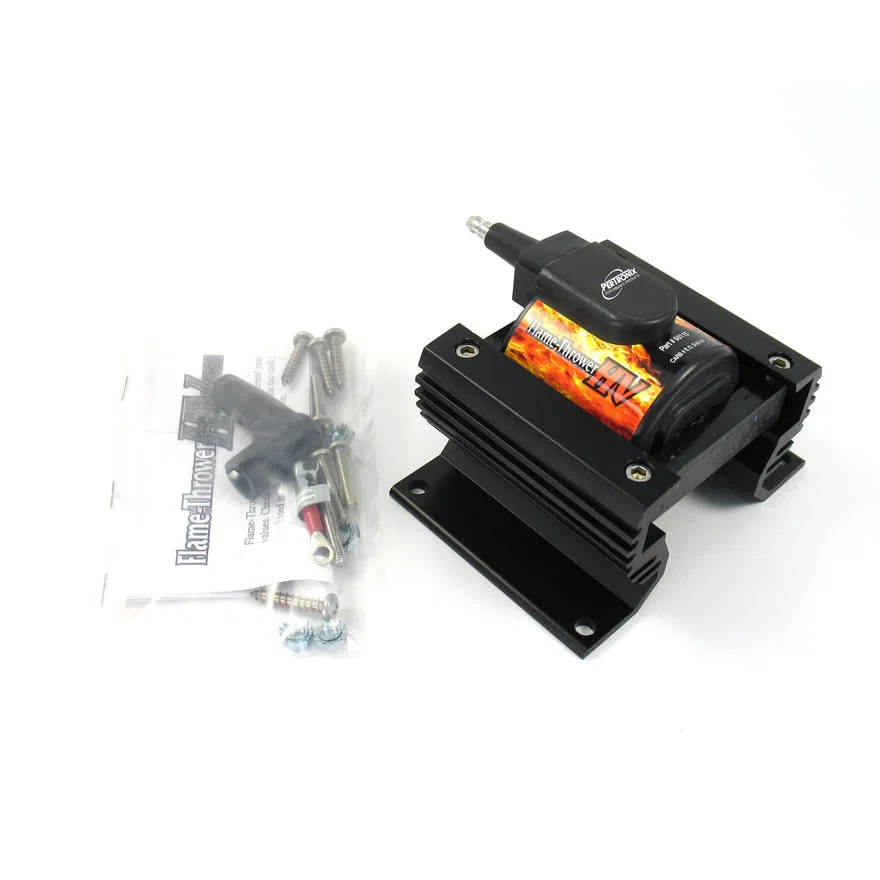

Pertronix Coil Flame-Thrower HV E-Core (1.5 ohm)
Part # 60115SKU PER60115
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Type | Remote Mount E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Color | Black |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| Finish | Semi-Gloss /Matte |
| Grade Type | Performance |
| Ignition Type | Electronic |
| Length | 4.6 in |
| Maximum Voltage | 60000 |
| Mount Type | Integrated Bracket |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Position | Horizontal |
| Overall Height | 3.15 in |
| Primary Inductance | 6.4 |
| Primary Resistance | 1.5 Ohms |
| Requires External Resistor | No |
| Secondary Resistance | 14000 Ohms |
| Turns Ratio | 85:1 |
| Voltage | 12 |
| Width | 4.65 in |
| UPC / GTIN | 00694342015534 |
- 60,000 volts.
- Highly efficient E-core design.
- Vacuum potted coil body for longer life and increased reliability.
- 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
- Precision machined male high tension terminal and brass primary terminals.
Description
HV (High Voltage) E-core design yields an incredible 60,000 volts and operates with no degradation throughout temperature ranges that surpass military specifications. The special heat sink design efficiently transfer heat optimizing energy output for street/strip and off-road applications.
