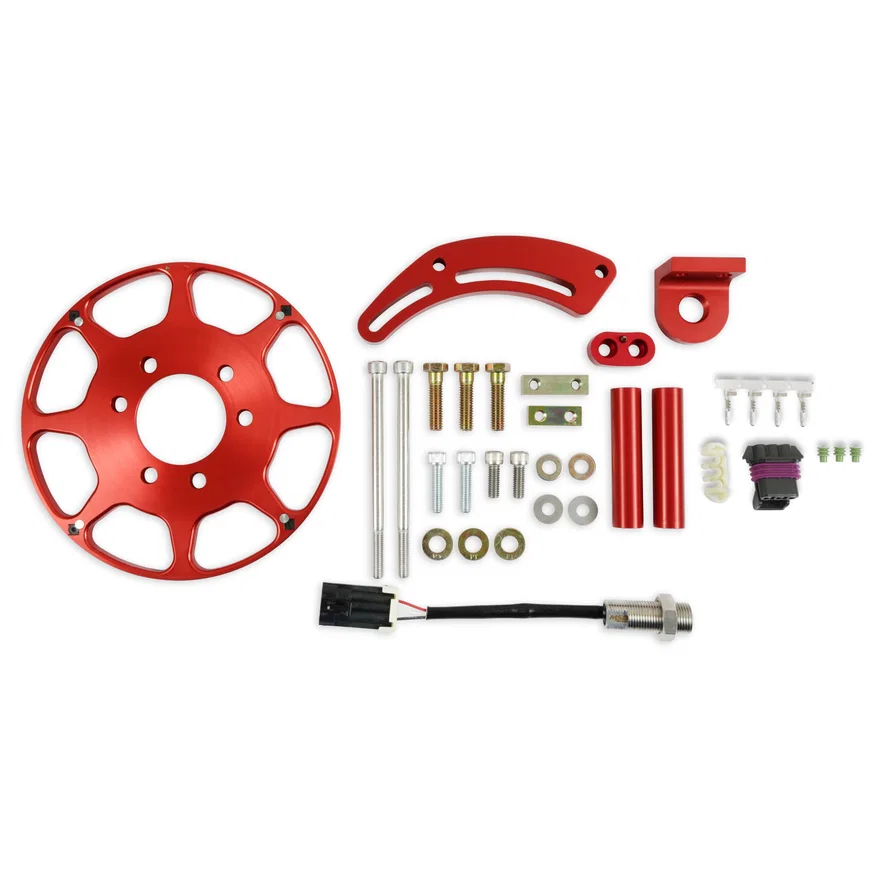

MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 8.00 in.

Part # 8623-MSDSKU MSD8623-MSD

Universal fit

Specifications
BrandMSD
Part typeIgnition Crank Trigger Kit
BrandMSD
CategoryIgnition
ColorRed
Diameter8 in
Emission Code4
EngineGM Gen III/IV (LS)
MakesChevrolet
Operating Voltage5-20
part typeIgnition Crank Trigger Kit
Product TypeCrank Trigger Kit
Sensor TypeHall Effect
Sub CategorySensors
WarrantyManufacturer's Limited 1 Year Warranty
UPC / GTIN00090127130223
WarrantyManufacturer's Limited 1 Year Warranty
  • Easy to install much like traditional MSD Crank Trigger Kits (use with ATI Balancer 917302 or 918852 but is also compatible with 917264 and 917242)
  • Powerful magnets embedded in a 3/8” thick billet 6061-T6 aluminum trigger wheel
  • Allows precise indexing by utilizing the 10 degree range on included timing pointer
  • Most accurate way to trigger your electronic fuel injection (EFI)
  • Rigid mounting that will not flex and cause timing fluctuation
  • 3-wire Hall-Effect Sensor that is not easily susceptible to EMI/RFI Interference

Description

Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high-performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system/ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high-quality timing pointer and the use of a direct bolt-on, degreed balancer (ATI 917302 or 918852), you'll be able to adjust timing in the precise increments required for your LS Engine.
