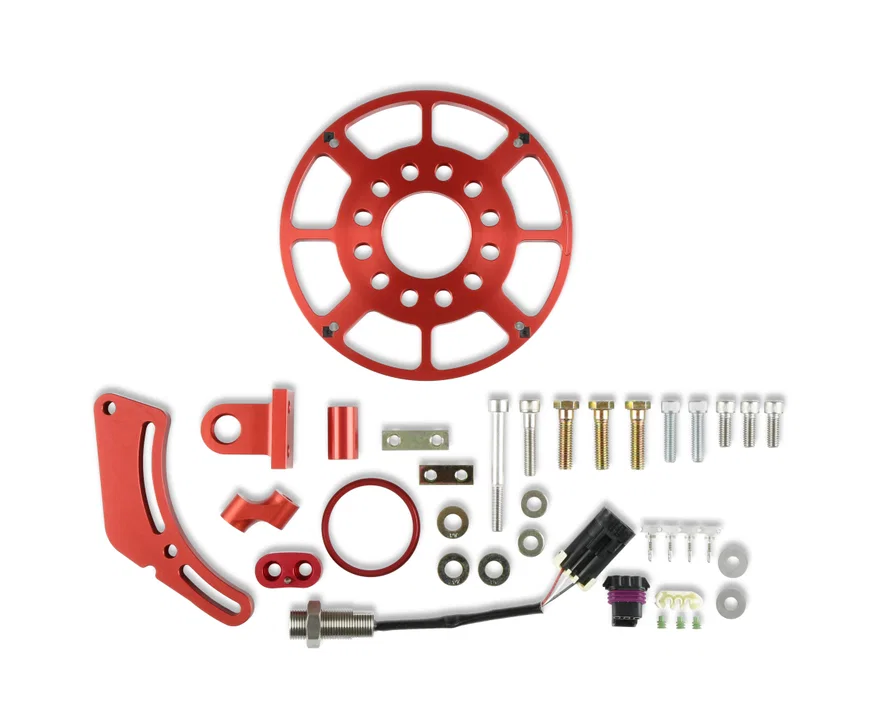

MSD Crank Trigger Kit - Flying Magnet - Hall-Effect - LS Gen III/IV - 7.25 In.

Part # 8619SKU MSD8619

Universal fit

Specifications
BrandMSD
Part typeIgnition Crank Trigger Kit
BrandMSD
CategoryIgnition
ColorRed
Diameter7.25 in
Emission Code4
MakesChevrolet
Operating Voltage5-20
part typeIgnition Crank Trigger Kit
Product TypeCrank Trigger Kit
Sensor TypeHall Effect
Sub CategorySensors
WarrantyManufacturer's Limited 1 Year Warranty
UPC / GTIN00090127130087
WarrantyManufacturer's Limited 1 Year Warranty
  • 3-wire Hall-Effect Sensor that is not easily susceptible to EMI/RFI Interference
  • Powerful magnets embedded in a 3/8” thick billet 6061-T6 aluminum trigger wheel
  • Rigid mounting that will not flex and cause timing fluctuation
  • Easy to install much like traditional MSD Crank Trigger Kits (use with ATI Balancer - 917777 or 917211)
  • Allows precise indexing by utilizing the 10 degree range on included timing pointer
  • Most accurate way to trigger your electronic fuel injection (EFI)

Description

Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system / ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high quality timing pointer and the use of a direct bolt-on, degreed balancer (ATI 917777 or 917211), you'll be able to adjust timing in the precise increments required for your LS Engine.
