Part # 8650SKU MSD8650
Set your vehicle above for a fit verdict. 42 vehicles listed below.
| Brand | MSD |
|---|---|
| Part type | Ignition Crank Trigger Kit |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Diameter | 7 in |
| Emission Code | 4 |
| Makes | Pontiac/Oldsmobile |
| part type | Ignition Crank Trigger Kit |
| Product Type | Crank Trigger Kit |
| Sensor Dimensions | 3/4 x 2.25 in |
| Sensor Type | Magnetic |
| Sub Category | Sensors |
| Trigger Type | 4X |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Wheel Width | 3/8 in |
| UPC / GTIN | 00085132086504 |
| Warranty | Manufacturer's Limited 1 Year Warranty |

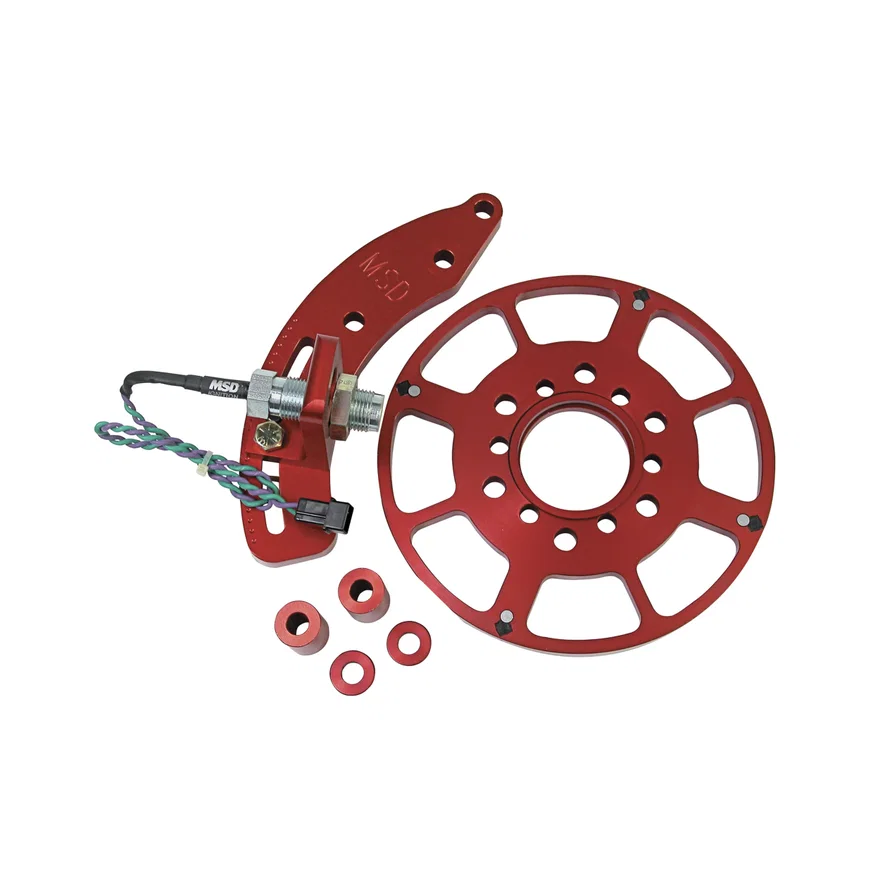

For a long time, racers have known that one of the best things to do to an engine to improve performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris, or even vibrations which will cause a loss of power or engine damage.
| 8623-MSD | $1,248.99 |
| 86203 | $894.99 |
| 8633 | $1,120.99 |
| 86101 | $998.99 |
| 86153 | $936.99 |
| 8618 | $1,200.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 1974 - 1975 | Pontiac | Bonneville | Base | 6.6L 400 V8, 7.5L 455 V8 |
| 1976 | Pontiac | Bonneville | Base, Brougham | 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | Bonneville | Base, Brougham | 4.9L 301 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1978 | Pontiac | Bonneville | Base, Brougham, Safari | 4.9L 301 V8, 6.6L 400 V8 |
| 1979 - 1980 | Pontiac | Bonneville | Base, Brougham, Safari | 4.9L 301 V8 |
| 1974 - 1975 | Pontiac | Catalina | Base, Safari | 6.6L 400 V8, 7.5L 455 V8 |
| 1976 | Pontiac | Catalina | Base, Safari | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | Catalina | Base, Safari | 4.9L 301 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1978 | Pontiac | Catalina | Base, Safari | 4.9L 301 V8, 6.6L 400 V8 |
| 1979 - 1980 | Pontiac | Catalina | Base, Safari | 4.9L 301 V8 |
| 1974 - 1976 | Pontiac | Firebird | Base, Esprit, Formula, Trans Am | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | Firebird | Base, Esprit, Formula, Trans Am | 4.9L 301 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1978 | Pontiac | Firebird | Formula, Trans Am | 6.6L 400 V8 |
| 1979 | Pontiac | Firebird | Base, Esprit, Formula, Trans Am | 4.9L 301 V8, 6.6L 400 V8 |
| 1980 - 1981 | Pontiac | Firebird | Base, Esprit, Formula, Trans Am | 4.9L 301 V8 |
| 1974 - 1975 | Pontiac | Grand Am | Base | 6.6L 400 V8, 7.5L 455 V8 |
| 1978 - 1980 | Pontiac | Grand Am | Base | 4.9L 301 V8 |
| 1975 | Pontiac | Grand LeMans | Base, Safari | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1976 | Pontiac | Grand LeMans | Base, LE | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | Grand LeMans | Base, LE, Safari | 4.9L 301 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1979 - 1980 | Pontiac | Grand LeMans | Base, Safari | 4.9L 301 V8 |
| 1981 | Pontiac | Grand LeMans | Safari | 4.9L 301 V8 |
| 1974 | Pontiac | Grand Prix | Base | 6.6L 400 V8, 7.5L 455 V8 |
| 1975 | Pontiac | Grand Prix | LJ, SJ | 6.6L 400 V8, 7.5L 455 V8 |
| 1976 | Pontiac | Grand Prix | Base, SJ | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | Grand Prix | Base, LJ, SJ | 4.9L 301 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1978 - 1980 | Pontiac | Grand Prix | Base, LJ, SJ | 4.9L 301 V8 |
| 1974 - 1976 | Pontiac | Grand Safari | Base | 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | Grand Safari | Base | 4.9L 301 V8, 6.6L 400 V8 |
| 1978 | Pontiac | Grand Safari | Base | 6.6L 400 V8 |
| 1974 | Pontiac | Grandville | Base | 7.5L 455 V8 |
| 1975 | Pontiac | Grandville | Brougham | 6.6L 400 V8, 7.5L 455 V8 |
| 1973 | Pontiac | LeMans | Base, Safari, Sport | 6.6L 400 V8 |
| 1974 | Pontiac | LeMans | Base, Luxury, Safari, Safari Luxury, Sport | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1975 | Pontiac | LeMans | Base, Safari, Sport | 5.7L 350 V8, 6.6L 400 V8 |
| 1976 | Pontiac | LeMans | Base, Sport, Sport Coupe | 5.7L 350 V8, 6.6L 400 V8, 7.5L 455 V8 |
| 1977 | Pontiac | LeMans | Base, Safari, Sport, Sport Coupe | 4.9L 301 V8, 5.7L 350 V8, 6.6L 400 V8 |
| 1979 - 1980 | Pontiac | LeMans | Base, Safari | 4.9L 301 V8 |
| 1981 | Pontiac | LeMans | Safari | 4.9L 301 V8 |
| 1974 | Pontiac | Ventura | Base, Custom, GTO | 5.7L 350 V8 |
| 1975 | Pontiac | Ventura | Base, Custom, S, SJ | 5.7L 350 V8 |
| 1977 | Pontiac | Ventura | Base, SJ | 4.9L 301 V8 |
