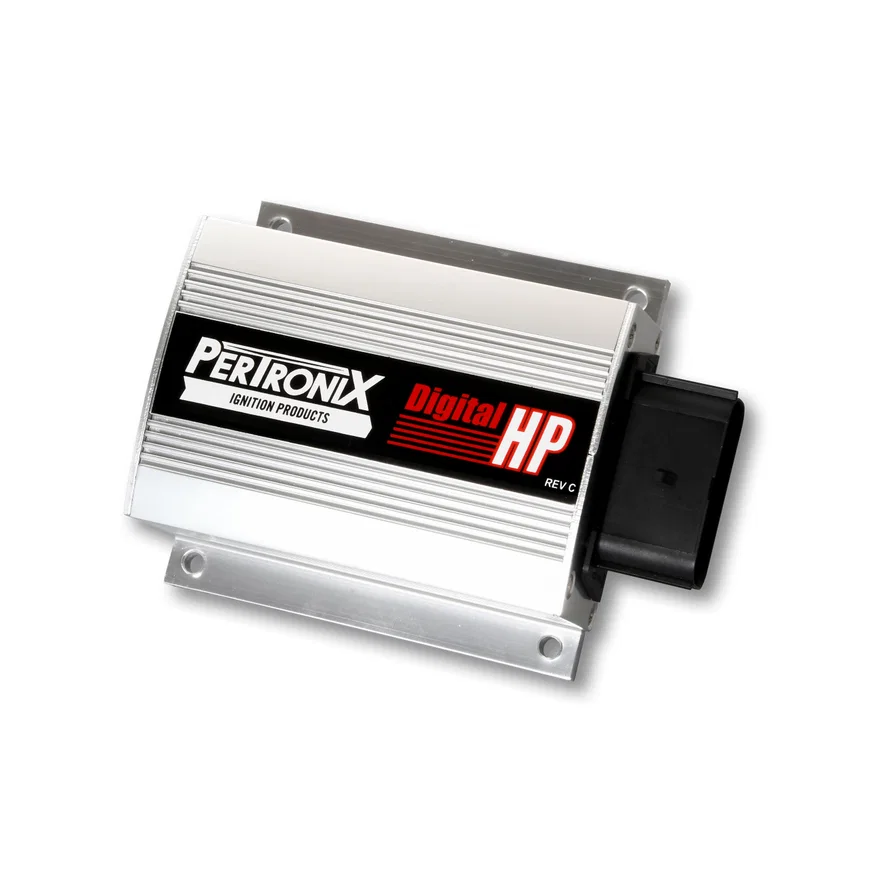

Pertronix DIGITAL HP IGNITION SYSTEM. THIS SYSTEM FEATURES 187 MILLIJOULES OF SPARK ENERGY, 3 STEP REV LIMITER, AND MULTISPARK TO REDLINE, ALL IN A ULTRA SMALL FORM FACTOR. SILVER
Part # 512SKU PER512
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Ignition Control Module |
| Color | Silver |
| Emission Description | This Product has been granted a California Air Resources Board (CARB) "E.O" (Executive Order) Exemption, or is considered a Direct Replacement or Consolidated Replacement part. It is 50 State Legal when installed on the appropriate vehicle per the Manufac |
| UPC / GTIN | 00694342550578 |
- These boxes are designed ONLY for carbureted vehicles; will NOT work with fuel injected vehicles
- Integrated 3 Step Digital REV Limiter
- Locking Automotive Connector
- Multiple Spark All the Way to Redline
- Tachometer Output Lead
- 172 mJ of Spark Energy
- RPM Triggered Output
- Onboard Error Logging
Description
Our Digital HP Ignition increases the spark output as well as the duration of the spark across the plug gap to ensure a full combustion of the fuel mixture in the cylinder. The Digital HP Ignition Box delivers 172 mJ of Spark Energy and features an integrated 3 step digital REV limiter delivering multiple spark all the way to redline. Key features also include an RPM triggered output, adjustable start retard, locking automotive connector,
tachometer output lead, and onboard error logging all in an ultra-small form factor.
