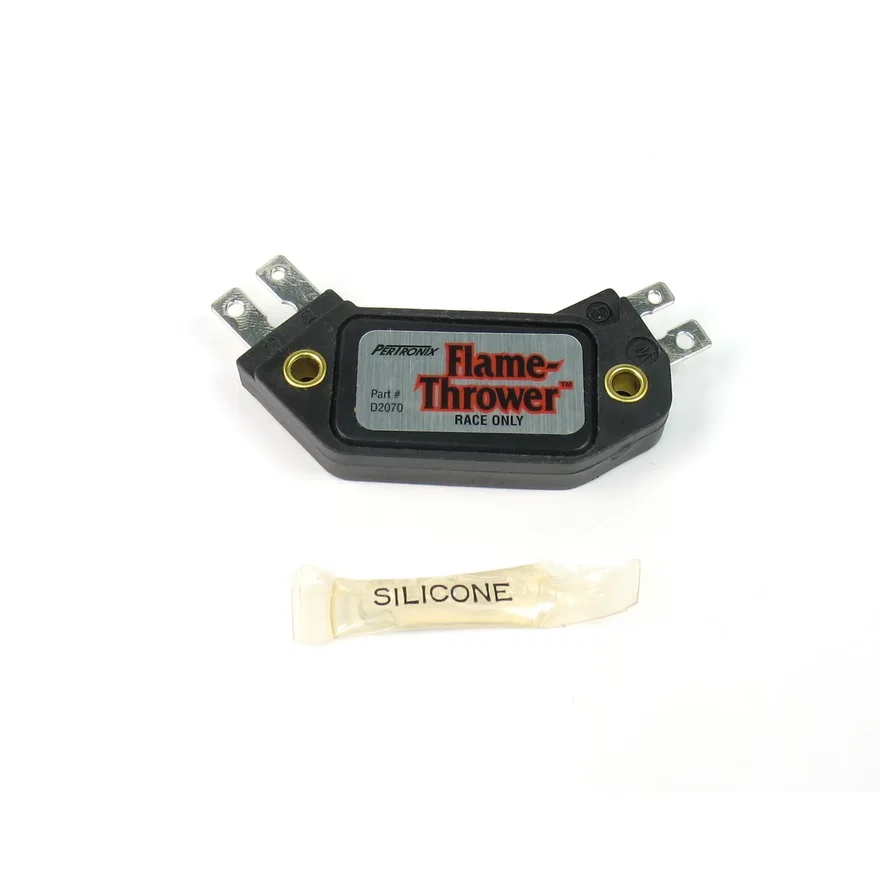

Pertronix FLAME-THROWER 4-PIN HEI MODULE. REPLACMENT MODULE FOR ALL FLAME-THROWER RACE ONLY DISTRIBUTORS. ALSO COMPATIBLE WITH GM 8-CYLINDER HEI PERFORMANCE DISTRIBUTORS
Part # D2070SKU PERD2070
Universal fit
| Brand | Pertronix |
|---|---|
| Part type | Ignition Control Module |
| Emission Description | This Product has been granted a California Air Resources Board (CARB) "E.O" (Executive Order) Exemption, or is considered a Direct Replacement or Consolidated Replacement part. It is 50 State Legal when installed on the appropriate vehicle per the Manufac |
| EmissionFullDES | 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions. |
| UPC / GTIN | 00694342009687 |
- 7.2 Amp Module
- Thick film technology on alumina ceramic substrates removes heatfor greater accuracy and improved reliability.
- Designed for racing applications
- Laser trimming gives precise peak current control for increased energy output.
- Double the spark intensity during the critical 1 ms burn time.
- Race Only Design offers dwell current up to 7.2 amps.
- Optimized for 6000 to 8500 RPM range
- Limited One Year Warranty.
- Produces 42% more energy with 46% faster spark breakdown over 6.9 Amp module.
Description
Our performance ignition modules are direct replacements for popular GM and Ford electronic distributors. These modules provide enhanced high RPM performance and when used with their corresponding Flame-Thrower coil, substantially increase spark plug voltage.
