| Brand | FAST |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| C.A.R.B. EO Number | D-255-60 |
| C.A.R.B. Exempt? | Yes |
| Coil Color | Black |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Style | E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Height | 3 in |
| Leakage Inductance | .14 mH |
| Length | 3.75 in |
| Maximum Voltage | 48,500 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Integral |
| Mounting Bracket Included | Yes |
| Mounting Position | Any |
| Oil Filled | No |
| Peak Current | 510 mA |
| Primary Inductance | 1.7 mH |
| Primary Resistance | .23 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 5.5 H |
| Secondary Resistance | 920 ohms |
| Spark Duration | 245 uS |
| Terminal Quantity | 2 |
| Turns Ratio | 60:1 |
| Weight | 1.25 lbs |
| Width | 2.5 in |
| UPC / GTIN | 00036584286448 |
Description

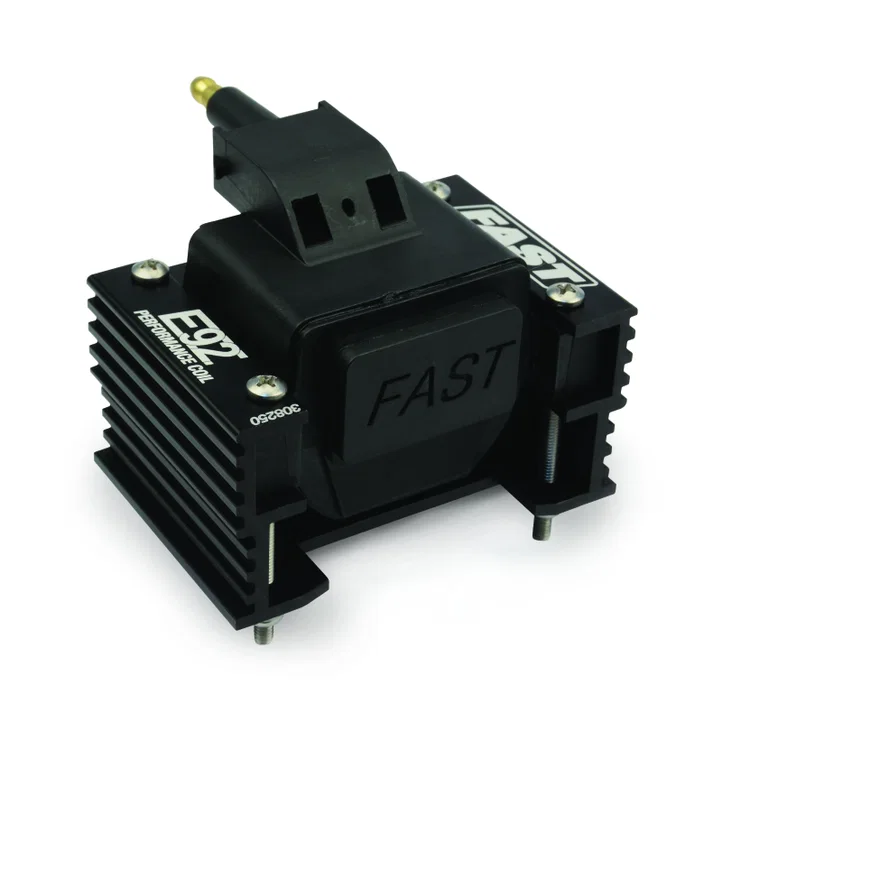

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
