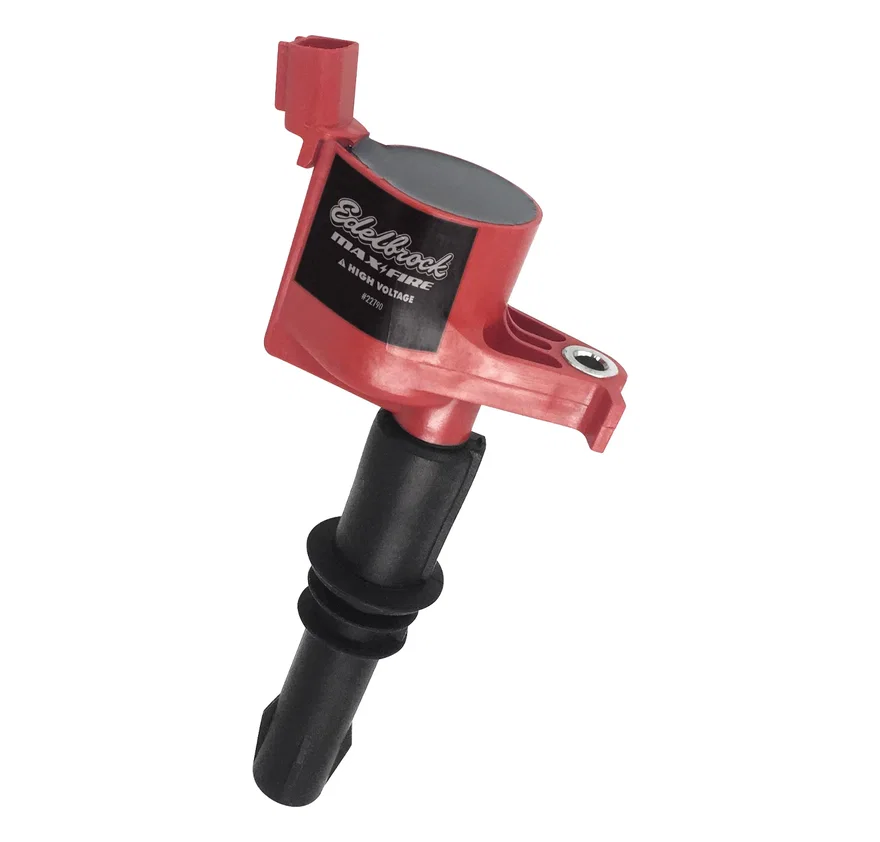

Edelbrock Coil #22790 is a direct performance replacement coil for Ford
Part # 22790SKU EDE22790
Set your vehicle above for a fit verdict. 22 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Ignition Coil |
| Coil Shape | Round |
| Coil Type | Coil Pack |
| Coil Wire Included | No |
| Connector Gender | Female |
| Height | (Long Brown Boot) 4.5 in |
| Length | (Long Brown Boot) 4.5 in |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Oil Filled | No |
| Primary Resistance | 0.600 |
| Quantity | Sold Individually |
| Recommended Use | For Models With 3 Valves and Use 12mm Spark Plugs |
| Requires External Resistor | No |
| Secondary Resistance | 6.01K |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | Maximum 21000 VDC |
| UPC / GTIN | 00085347227907 |
Description
Edelbrock Coil #22790 is a single coil-on-plug coil designed as a direct performance replacement for the OEM coil on 2008-18 Ford 4.6L-5.4L V8 engines and the 6.8L Triton V10 engine. Each #22790 coil features advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. This coil is available in a set of eight under #22791. For the Triton V10 engine, order one #22791 coil pack and two #22790 single coils for a set of 10.
More from Edelbrock
| 22739 | $49.99 |
| 22782 | $14.99 |
| 22745 | $106.99 |
| 22780 | $14.99 |
| 22744 | $71.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2008 - 2014 | Ford | Expedition | 5.4L 330 V8 |
| 2008 - 2010 | Ford | Explorer | 4.6L 281 V8 |
| 2008 - 2010 | Ford | Explorer Sport Trac | 4.6L 281 V8 |
| 2008 | Ford | F-150 | 5.4L 330 V8 |
| 2009 - 2010 | Ford | F-150 | 4.6L 281 V8, 5.4L 330 V8 |
| 2008 - 2010 | Ford | F-250 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2008 - 2010 | Ford | F-350 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2008 | Ford | F-450 Super Duty | 6.8L 415 V10 |
| 2010 - 2019 | Ford | F-450 Super Duty | 6.8L 415 V10 |
| 2008 - 2019 | Ford | F-53 Motorhome Chassis | 6.8L 415 V10 |
| 2008 - 2019 | Ford | F-550 Super Duty | 6.8L 415 V10 |
| 2011 - 2019 | Ford | F-59 Commercial Stripped Chassis | 6.8L 415 V10 |
| 2012 - 2013 | Ford | F-650 | 6.8L 415 V10 |
| 2015 - 2019 | Ford | F-650 | 6.8L 415 V10 |
| 2016 - 2019 | Ford | F-750 | 6.8L 415 V10 |
| 2008 | Ford | Lobo | 5.4L 330 V8 |
| 2009 - 2010 | Ford | Lobo | 4.6L 281 V8, 5.4L 330 V8 |
| 2008 - 2010 | Ford | Mustang | 4.6L 281 V8 |
| 2008 | Lincoln | Mark LT | 5.4L 330 V8 |
| 2010 | Lincoln | Mark LT | 5.4L 330 V8 |
| 2008 - 2014 | Lincoln | Navigator | 5.4L 330 V8 |
| 2008 - 2010 | Mercury | Mountaineer | 4.6L 281 V8 |
