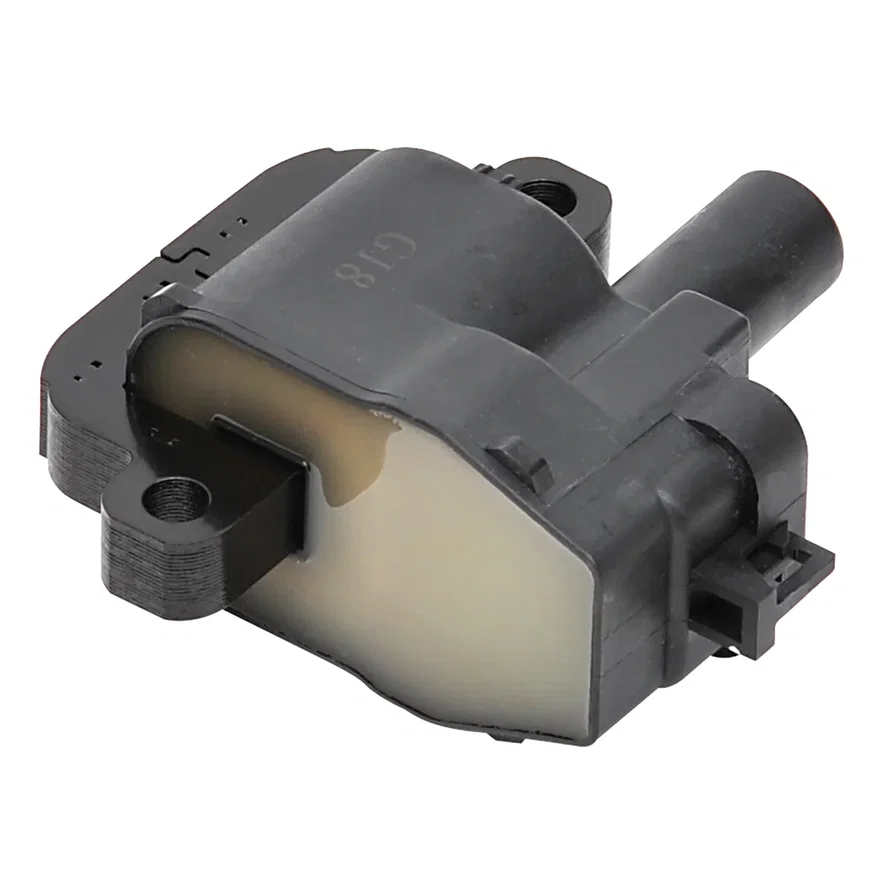

Edelbrock Max-Fire LS Coil Pack for 1997-2013 GM Gen III & IV LS Engines
Part # 22745SKU EDE22745
Set your vehicle above for a fit verdict. 16 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Ignition Coil |
| Coil Shape | Rectangular |
| Coil Type | Ignition Coils |
| Coil Wire Included | No |
| Connector Gender | Female |
| Height | 3.75 in |
| Ignition Type | Distributorless |
| Length | 3.75 in |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Mounting Position | Cylinder Head |
| Oil Filled | No |
| Overall Height | 3.75 in |
| Requires External Resistor | No |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | 12 VDC |
| Width | 1.5 in |
| Wire Quantity | 2 |
| UPC / GTIN | 00085347227457 |
Description
Edelbrock part #22745 Max-Fire LS Coil Pack is designed for use with 1997-2013 GM Gen III & IV LS engines. It features a high output design that delivers up to 11% more voltage and 19% more energy over a stock coil. It's ideal for use with supercharged, turbo, nitrous or E85 fueled engines. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise
More from Edelbrock
| 22739 | $49.99 |
| 22782 | $14.99 |
| 22780 | $14.99 |
| 22790 | $37.99 |
| 22744 | $71.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2008 - 2009 | Buick | Allure | 5.3L 325 V8 |
| 2008 - 2009 | Buick | LaCrosse | 5.3L 325 V8 |
| 2004 - 2005 | Cadillac | CTS | 5.7L 346 V8 |
| 2006 - 2007 | Cadillac | CTS | 6.0L 364 V8 |
| 2009 - 2013 | Cadillac | CTS | 6.2L 376 V8 |
| 2010 - 2013 | Chevrolet | Camaro | 6.2L 376 V8 |
| 2001 - 2004 | Chevrolet | Corvette | 5.7L 350 V8 |
| 2006 - 2007 | Chevrolet | Corvette | 6.0L 364 V8, 7.0L 427 V8 |
| 2008 - 2013 | Chevrolet | Corvette | 6.2L 376 V8, 7.0L 427 V8 |
| 2006 - 2009 | Chevrolet | Impala | 5.3L 325 V8 |
| 2006 - 2007 | Chevrolet | Monte Carlo | 5.3L 325 V8 |
| 2005 - 2006 | Chevrolet | SSR | 6.0L 364 V8 |
| 2006 - 2009 | Chevrolet | Trailblazer | 6.0L 364 V8 |
| 2009 | Pontiac | G8 | 6.2L 376 V8 |
| 2005 - 2008 | Pontiac | Grand Prix | 5.3L 325 V8 |
| 2005 - 2006 | Pontiac | GTO | 6.0L 364 V8 |
