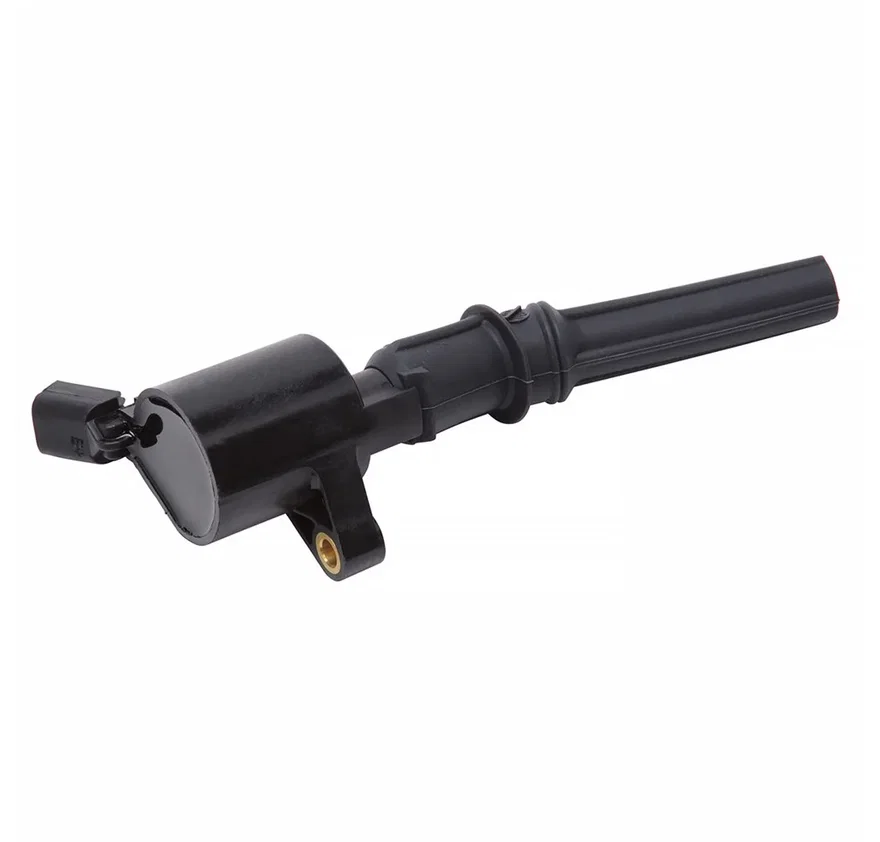

Edelbrock Max-Fire Ford Coil-On-Cap Ignition Coil 1997-14 Ford 2-Valve 4.6L / 5.4L / 6.8L
Part # 22744SKU EDE22744
Set your vehicle above for a fit verdict. 68 vehicles listed below.
| Brand | Edelbrock |
|---|---|
| Part type | Ignition Coil |
| Coil Shape | Round |
| Coil Type | Ignition Coils |
| Coil Wire Included | No |
| Connector Gender | Female |
| Height | 6.5 in |
| Ignition Type | Distributorless |
| Length | 6.5 in |
| Mount Type | Plug |
| Mounting Bracket Included | No |
| Mounting Position | Cylinder Head |
| Oil Filled | No |
| Overall Height | 6.5 in |
| Requires External Resistor | No |
| Terminal Gender | Female |
| Terminal Quantity | 1 |
| Terminal Type | Blade Pin |
| Voltage | 12 VDC |
| Width | 2.25 in |
| Wire Quantity | 2 |
| UPC / GTIN | 00085347227440 |
Description
Edelbrock part #22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise
More from Edelbrock
| 22739 | $49.99 |
| 22782 | $14.99 |
| 22745 | $106.99 |
| 22780 | $14.99 |
| 22790 | $37.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 1997 - 1998 | Ford | Club Wagon | 5.4L 330 V8 |
| 1998 - 2011 | Ford | Crown Victoria | 4.6L 281 V8 |
| 2002 | Ford | E-150 | 5.4L 330 V8 |
| 2003 - 2014 | Ford | E-150 | 4.6L 281 V8, 5.4L 330 V8 |
| 2003 - 2005 | Ford | E-150 Club Wagon | 4.6L 281 V8, 5.4L 330 V8 |
| 1997 | Ford | E-150 Econoline | 5.4L 330 V8 |
| 1998 - 2002 | Ford | E-150 Econoline | 4.6L 281 V8, 5.4L 330 V8 |
| 2007 - 2008 | Ford | E-150 Econoline | 5.4L 330 V8 |
| 1997 | Ford | E-150 Econoline Club Wagon | 5.4L 330 V8 |
| 1998 - 2002 | Ford | E-150 Econoline Club Wagon | 4.6L 281 V8, 5.4L 330 V8 |
| 2003 - 2014 | Ford | E-250 | 4.6L 281 V8, 5.4L 330 V8 |
| 1997 - 2002 | Ford | E-250 Econoline | 5.4L 330 V8 |
| 2002 | Ford | E-350 Club Wagon | 5.4L 330 V8 |
| 2003 | Ford | E-350 Club Wagon | 5.4L 330 V8, 6.8L 415 V10 |
| 2004 | Ford | E-350 Club Wagon | 5.4L 330 V8 |
| 2005 | Ford | E-350 Club Wagon | 5.4L 330 V8, 6.8L 415 V10 |
| 1997 - 1998 | Ford | E-350 Econoline | 5.4L 330 V8, 6.8L 415 V10 |
| 1999 - 2000 | Ford | E-350 Econoline | 5.4L 330 V8 |
| 2007 - 2008 | Ford | E-350 Econoline | 5.4L 330 V8 |
| 1997 - 2002 | Ford | E-350 Econoline Club Wagon | 5.4L 330 V8, 6.8L 415 V10 |
| 1999 - 2016 | Ford | E-350 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2017 - 2019 | Ford | E-350 Super Duty | 6.8L 415 V10 |
| 1999 | Ford | E-450 Econoline Super Duty | 6.8L 415 V10 |
| 2000 - 2002 | Ford | E-450 Econoline Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2003 - 2004 | Ford | E-450 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2005 | Ford | E-450 Super Duty | 6.8L 415 V10 |
| 2006 - 2016 | Ford | E-450 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2017 - 2019 | Ford | E-450 Super Duty | 6.8L 415 V10 |
| 2002 | Ford | E-550 Econoline Super Duty | 6.8L 415 V10 |
| 2003 | Ford | E-550 Super Duty | 6.8L 415 V10 |
| 1999 - 2003 | Ford | Econoline | 5.4L 330 V8 |
| 2004 - 2006 | Ford | Econoline | 4.6L 281 V8, 5.4L 330 V8 |
| 1997 - 1999 | Ford | Econoline Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2010 - 2014 | Ford | Econoline Van | 4.6L 281 V8 |
| 2010 - 2014 | Ford | Econoline Wagon | 4.6L 281 V8, 5.4L 330 V8 |
| 2000 - 2005 | Ford | Excursion | 5.4L 330 V8, 6.8L 415 V10 |
| 1997 | Ford | Expedition | 5.4L 330 V8 |
| 1998 - 2004 | Ford | Expedition | 4.6L 281 V8, 5.4L 330 V8 |
| 2005 - 2008 | Ford | Expedition | 5.4L 330 V8 |
| 2010 | Ford | Expedition | 5.4L 330 V8 |
| 2002 - 2005 | Ford | Explorer | 4.6L 281 V8 |
| 1997 | Ford | F-150 | 5.4L 330 V8 |
| 1998 - 2003 | Ford | F-150 | 4.6L 281 V8, 5.4L 330 V8 |
| 2004 - 2010 | Ford | F-150 | 4.6L 281 V8 |
| 2004 | Ford | F-150 Heritage | 4.6L 281 V8, 5.4L 330 V8 |
| 1997 | Ford | F-250 | 5.4L 330 V8 |
| 1998 - 1999 | Ford | F-250 | 4.6L 281 V8, 5.4L 330 V8 |
| 2000 | Ford | F-250 | 4.6L 281 V8 |
| 2001 | Ford | F-250 | 4.6L 281 V8, 5.4L 330 V8 |
| 2002 - 2009 | Ford | F-250 | 4.6L 281 V8 |
| 1999 - 2004 | Ford | F-250 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 1999 - 2009 | Ford | F-350 | 5.4L 330 V8 |
| 1999 - 2004 | Ford | F-350 Super Duty | 5.4L 330 V8, 6.8L 415 V10 |
| 2005 - 2009 | Ford | F-350 Super Duty | 5.4L 330 V8 |
| 1998 - 2009 | Ford | F-450 Super Duty | 6.8L 415 V10 |
| 1999 - 2004 | Ford | F-53 Motorhome Chassis | 6.8L 415 V10 |
| 1999 - 2009 | Ford | F-550 Super Duty | 6.8L 415 V10 |
| 1998 - 2004 | Ford | Grand Marquis | 4.6L 281 V8 |
| 1998 | Ford | Lobo | 4.6L 281 V8 |
| 1999 - 2004 | Ford | Lobo | 4.6L 281 V8, 5.4L 330 V8 |
| 2005 | Ford | Lobo | 4.6L 281 V8 |
| 2006 - 2008 | Ford | Lobo | 4.6L 281 V8, 5.4L 330 V8 |
| 2009 - 2010 | Ford | Lobo | 4.6L 281 V8 |
| 1998 - 2004 | Ford | Mustang | 4.6L 281 V8 |
| 1998 - 1999 | Lincoln | Navigator | 5.4L 330 V8 |
| 1998 - 2011 | Lincoln | Town Car | 4.6L 281 V8 |
| 1998 - 2011 | Mercury | Grand Marquis | 4.6L 281 V8 |
| 2002 - 2005 | Mercury | Mountaineer | 4.6L 281 V8 |
