| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Application | Universal |
| Brackets Included | No |
| Brand | MSD |
| C.A.R.B. EO # | D-40-37 |
| Category | Ignition |
| Coil Type | Blaster |
| Coil Wire Included | No |
| Color | Black |
| Connector Shape | Round Cylinder |
| Emission Code | 1 |
| Engine | Universal V8 |
| Grade Type | Performance |
| Inductance (mH) | 8 |
| Maximum Voltage | 45,000 |
| Mount Type | Bracket |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| part type | Ignition Coil |
| Peak Current | 140 mA |
| Primary Resistance | 0.7 Ohms |
| Product Type | Coil |
| Quantity | 1 |
| Secondary Resistance | 4.5K Ohms |
| Spark Duration | 0.35 ms |
| Sub Category | Ignition Coil |
| Turns Ratio | 4.17 |
| Universal Or Specific Fit | Universal |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132820238 |
| Warranty | Manufacturer's Limited 1 Year Warranty |

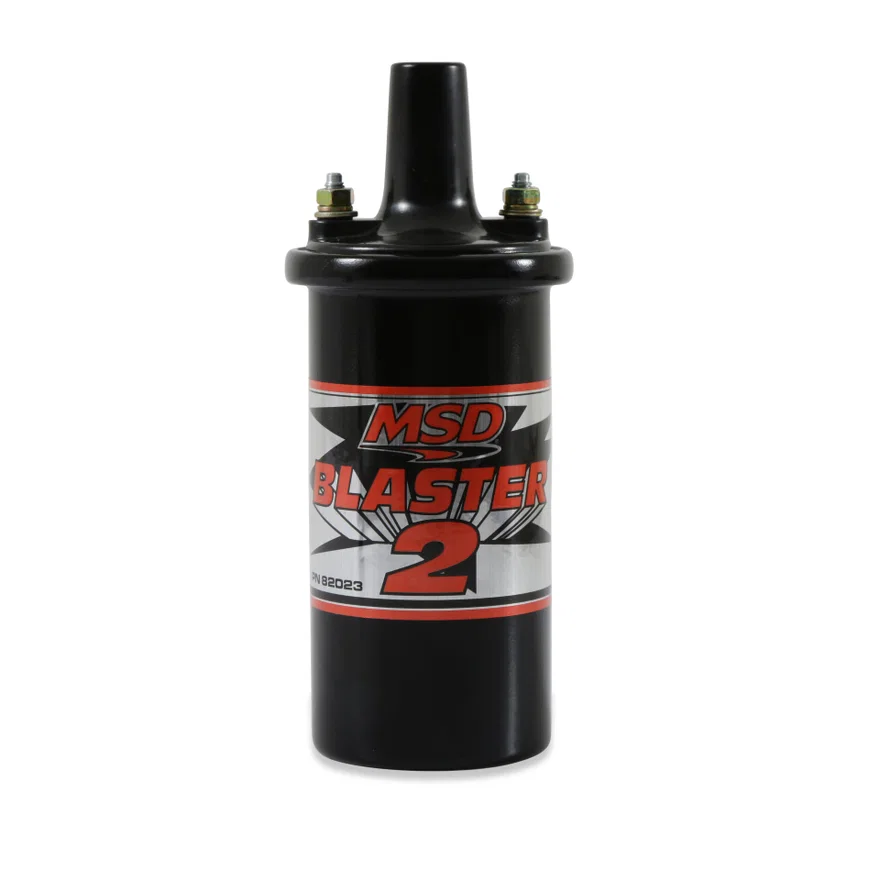

- Legendary Blaster 2 performance oil-filled ignition canister coil from MSD Ignition!
- Alkyd tower with high dielectric properties is less prone to carbon tracking
- Compatible with MSD 6 & 7 series ignitions, electronic ignitions and points ignitions (ballast resistor required for points)
- 100:1 turns ratio and lower primary resistance produce high voltage output
- Street legal, CARB E.O. approved and track-ready!
Description
The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound.
