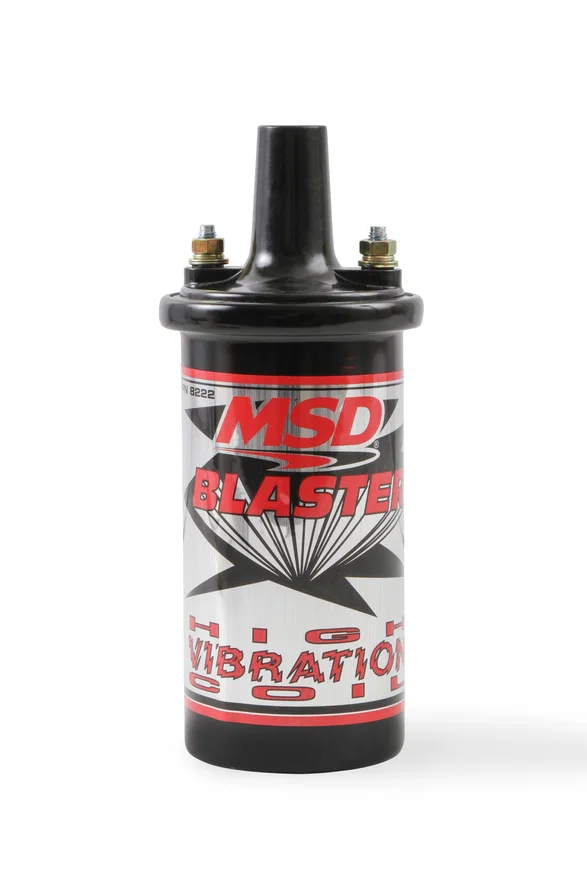

MSD Ignition Coil - Blaster Series - High Vibration - Black
Part # 8222SKU MSD8222
Universal fit
| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Brand | MSD |
| C.A.R.B. EO # | D-40-37 |
| Category | Ignition |
| Color | Black |
| Emission Code | 1 |
| Inductance (mH) | 8 |
| Maximum Voltage | 45,000 |
| part type | Ignition Coil |
| Peak Current | 140 mA |
| Primary Resistance | 0.7 Ohms |
| Product Type | Ignition Coil |
| Secondary Resistance | 4.5K Ohms |
| Spark Duration | 0.35 ms |
| Sub Category | Ignition Coil |
| Turns Ratio | 4.17 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | 2 lb |
| UPC / GTIN | 00085132082223 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)
- Metal canister is encased with epoxy to protect the windings from high vibration applications
- CARB E.O. Approved
- 100:1 turns ratio and lower primary resistance produce high voltage output
Description
The Blaster Coil is designed to mount in most factory canister coil mounts. MSD also offers a Chrome Coil Bracket, PN 8213. It is recommended to mount the PN 8202, PN 82023, and 8223 coils in an upright position. The High Vibration Coil, PN 8222, can be mounted in any position due to its epoxy potting compound.
