| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Application | Universal |
| Brackets Included | No |
| Brand | MSD |
| C.A.R.B. EO # | D-40-37 |
| Category | Ignition |
| Coil Type | Blaster |
| Coil Wire Included | No |
| Color | Red |
| Connector Shape | Rectangular Pyramid |
| Emission Code | 1 |
| Engine | Universal V8 |
| Grade Type | Performance |
| Inductance (mH) | 6.9 |
| Maximum Voltage | 40,000 |
| Mount Type | Surface |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| part type | Ignition Coil |
| Peak Current | 300 mA |
| Primary Resistance | 0.355 Ohms |
| Product Type | Ignition Coil |
| Quantity | 1 |
| Secondary Resistance | 4.4K Ohms |
| Spark Duration | 0.22 ms |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.92 |
| Universal Or Specific Fit | Universal |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | 1.08 lb |
| UPC / GTIN | 00085132082070 |
| Warranty | Manufacturer's Limited 1 Year Warranty |

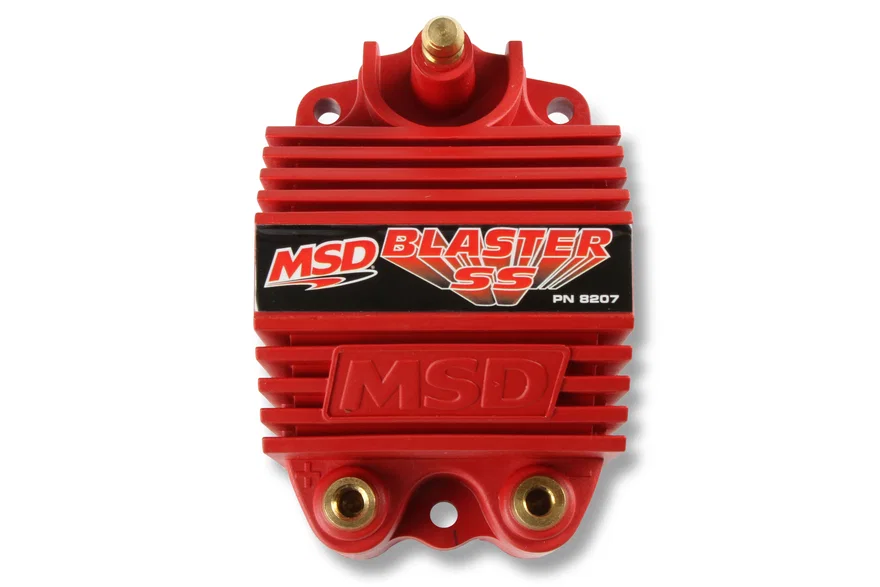

- Premium epoxy-filled, compact performance Blaster SS ignition coil from MSD Ignition!
- Compatible with MSD 6 & 7 series ignitions and electronic ignitions
- Tough, rigid housing with a tall tower and brass primary terminals
- 70:1 turns ratio and lower primary resistance produce high voltage output
- Efficient winding design and assembly creates a compact housing with powerful punch
- Primary and secondary windings are encased in Ciba polyurethane
Description
Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.
