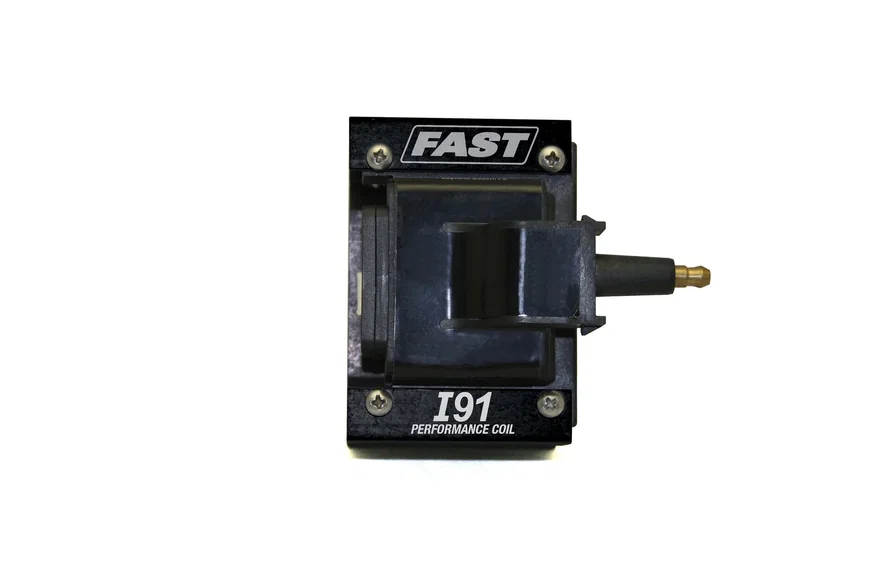

FAST The I91 is a great choice for street an performance applications
Part # 730-0891SKU FAS730-0891
Universal fit
| Brand | FAST |
|---|---|
| Part type | Ignition Coil |
| Ballast Resistor Included | No |
| C.A.R.B. EO Number | D-255-60 |
| C.A.R.B. Exempt? | Yes |
| Coil Color | Black |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Style | E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Height | 3 in |
| Leakage Inductance | .23 mH |
| Length | 3.75 in |
| Maximum Voltage | 47,000 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Integral |
| Mounting Bracket Included | Yes |
| Mounting Position | Any |
| Oil Filled | No |
| Peak Current | 380 mA |
| Primary Inductance | 4.7 mH |
| Primary Resistance | .40 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 14.4 H |
| Secondary Resistance | 4.6K ohms |
| Spark Duration | 280 uS |
| Terminal Quantity | 2 |
| Turns Ratio | 57:1 |
| Weight | 1.25 lbs |
| Width | 2.5 in |
| UPC / GTIN | 00021174021080 |
Description
The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR700 and XR3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications.
