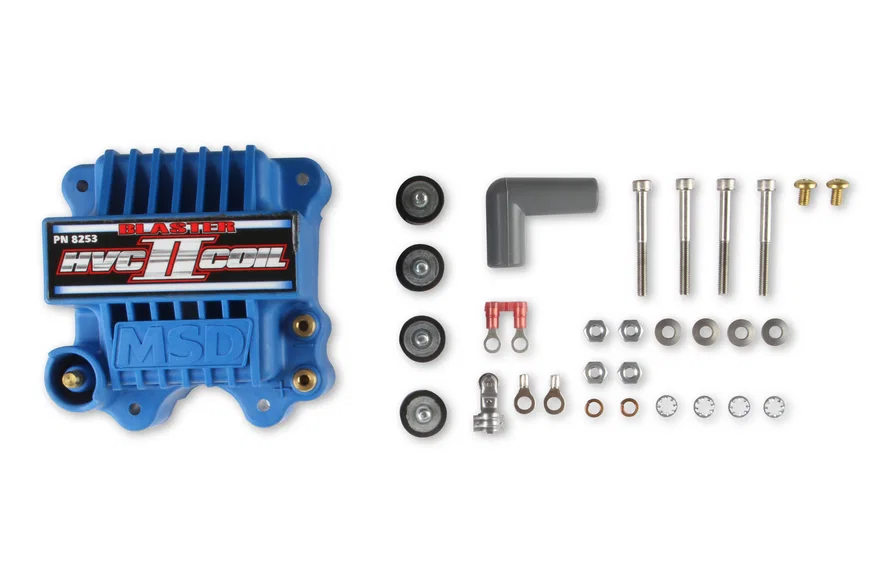

MSD Ignition Coil - Blaster Series - HVC-2 - Blue
Part # 8253SKU MSD8253
Universal fit
| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Brand | MSD |
| Category | Ignition |
| Emission Code | 4 |
| Inductance (mH) | 3.5 |
| Maximum Voltage | 44,000 |
| part type | Ignition Coil |
| Peak Current | 450 mA |
| Primary Resistance | 0.16 Ohms |
| Product Type | Ignition Coil |
| Secondary Resistance | 630 Ohms |
| Spark Duration | 0.45 ms |
| Sub Category | Ignition Coil |
| Turns Ratio | 4.17 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | 3.75 lb |
| UPC / GTIN | 00085132082537 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Supplied with rubber shock mounts
- No CARB Exemption Order Number
- Dupont Rynite housing with isolated tower and brass primary terminals
- New U-core winding design produces more voltage and current
- Windings are encased in fracture resistant compound for vibration resistance
- 100:1 turns ratio and lower primary resistance produce high voltage output
- Designed for high rpm, long duration applications using MSD 6 Series Ignitions
Description
The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.
