| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Bolt Spacing | 2.82-2.90 in |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Emission Code | 4 |
| Inductance (mH) | 500 |
| Maximum Voltage | 50,000 |
| part type | Ignition Coil |
| Peak Current | 1700 mA |
| Primary Resistance | 0.064 Ohms |
| Product Type | Ignition Coils |
| Quantity | 8-pack |
| Secondary Resistance | 466 Ohms |
| Spark Duration | 0.345 ms |
| Spark Energy (mJ per spark) | 208 |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.33 |
| Type | Drag Race / Short Duration Use |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00090127080832 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Capable of up to 50,000 Volts to ignite extreme cylinder pressures
- HEI style secondary tower for secure coil wire connection
- Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations
- Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000

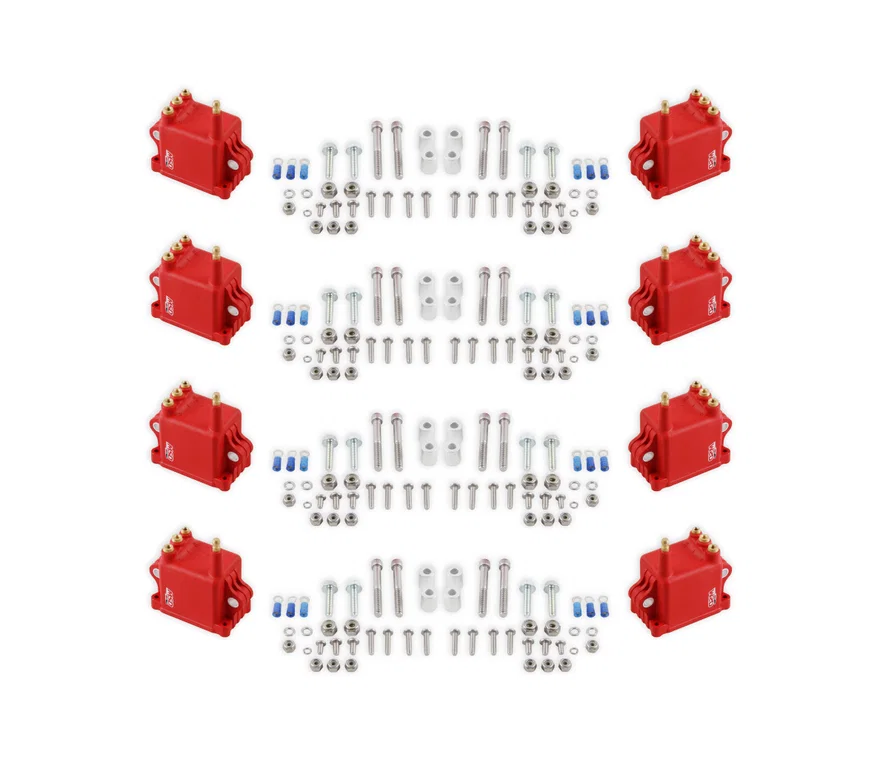

- Supplied with hardware to mount horizontal or vertical position
- Coils are designed to be mounted on Holley’s LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing
Description
When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you are leaving horsepower on the table. To answer this need, MSD developed this powerful coil for the PRO 600 Capacitive Discharge Ignition to provide unrivaled spark energy and dependability.
