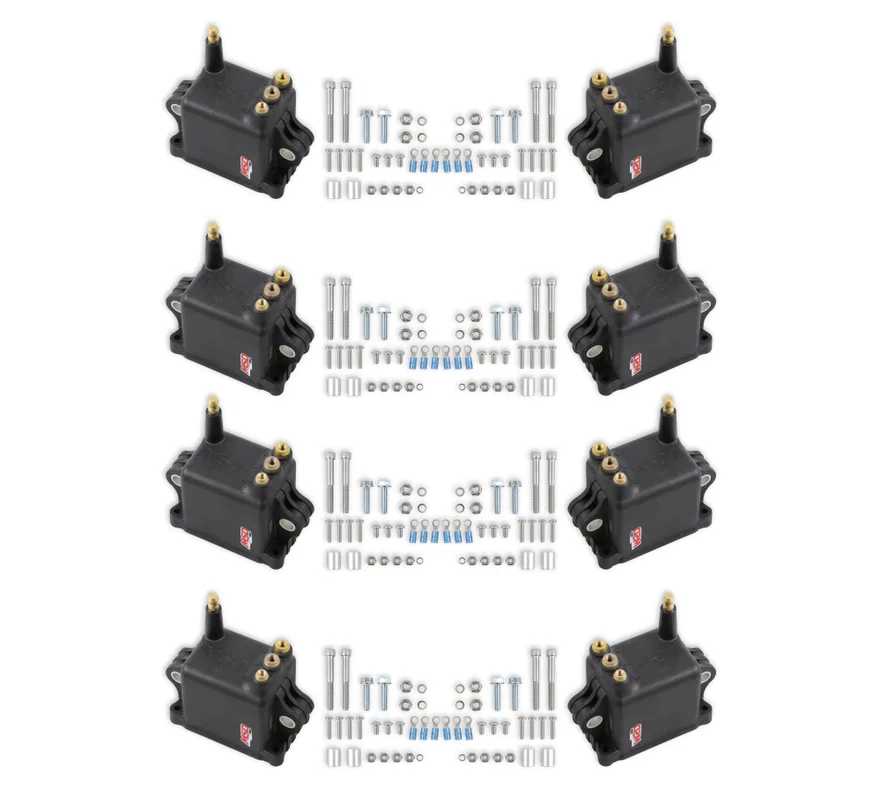

MSD Ignition Coil - High Output - Black - 8-Pack
Part # 828038SKU MSD828038
Universal fit
| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Bolt Spacing | 2.82-2.90 in |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Emission Code | 4 |
| Inductance (mH) | 500 |
| Maximum Voltage | 50,000 |
| part type | Ignition Coil |
| Peak Current | 1700 mA |
| Primary Resistance | 0.064 Ohms |
| Product Type | Ignition Coils |
| Quantity | 8-pack |
| Secondary Resistance | 466 Ohms |
| Spark Duration | 0.345 ms |
| Spark Energy (mJ per spark) | 208 |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.33 |
| Type | Drag Race / Short Duration Use |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00090127126523 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000
- Supplied with hardware to mount horizontal or vertical position
- Capable of up to 50,000 Volts to ignite extreme cylinder pressures
- Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations
- Coils are designed to be mounted on Holley’s LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing
- HEI style secondary tower for secure coil wire connection
Description
When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you are leaving horsepower on the table. To answer this need, MSD developed this powerful coil for the PRO 600 Capacitive Discharge Ignition to provide unrivaled spark energy and dependability. With the unrivaled output of the Pro 600 CDI, combined with these High-Output coils, everything from Pro Mod to Pulling Trucks can perform at a whole new level!
