| Brand | MSD |
|---|---|

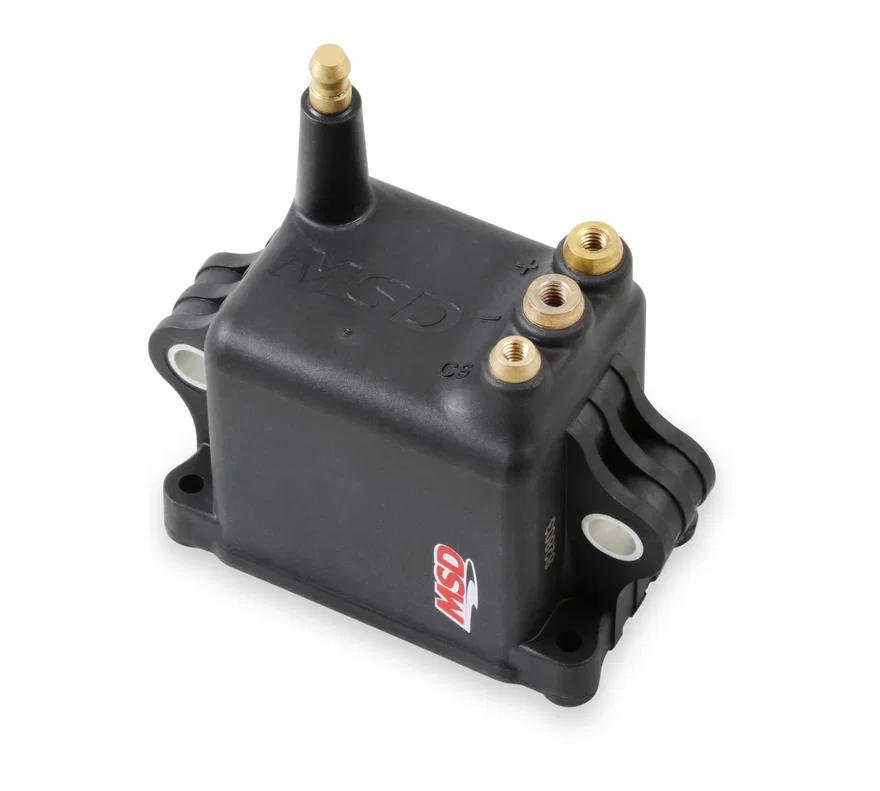

| Part type | Ignition Coil |
| Bolt Spacing | 2.82-2.90 in |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Emission Code | 4 |
| Inductance (mH) | 500 |
| Maximum Voltage | 50,000 |
| part type | Ignition Coil |
| Peak Current | 1700 mA |
| Primary Resistance | 0.064 Ohms |
| Product Type | Ignition Coils |
| Quantity | Individual |
| Secondary Resistance | 466 Ohms |
| Spark Duration | 0.345 ms |
| Spark Energy (mJ per spark) | 208 |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.33 |
| Type | Drag Race / Short Duration Use |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00090127126516 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000
- Coils are designed to be mounted on Holley’s LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing
- Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations
- Supplied with hardware to mount horizontal or vertical position
- Capable of up to 50,000 Volts to ignite extreme cylinder pressures
- HEI style secondary tower for secure coil wire connection
