| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Emission Code | 4 |
| Inductance (mH) | 0.25 |
| Maximum Voltage | 45,000 |
| part type | Ignition Coil |
| Peak Current | 2 A |
| Primary Resistance | 0.016 Ohms |
| Product Type | Coil |
| Secondary Resistance | 30 Ohms |
| Spark Duration | 0.15 ms |
| Sub Category | Ignition Coil |
| Turns Ratio | 2.92 |
| Type | Drag Race / Long Duration Use |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight | 3.75 lb |
| UPC / GTIN | 00085132826131 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- Tough, rigid housing with isolated tower and brass primary terminals
- Designed for racing applications with an MSD 7 or 8 Series Ignition Control
- Supplied with mounting hardware and rubber shock mounts
- U-Core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistant compound for vibration resistance
Description

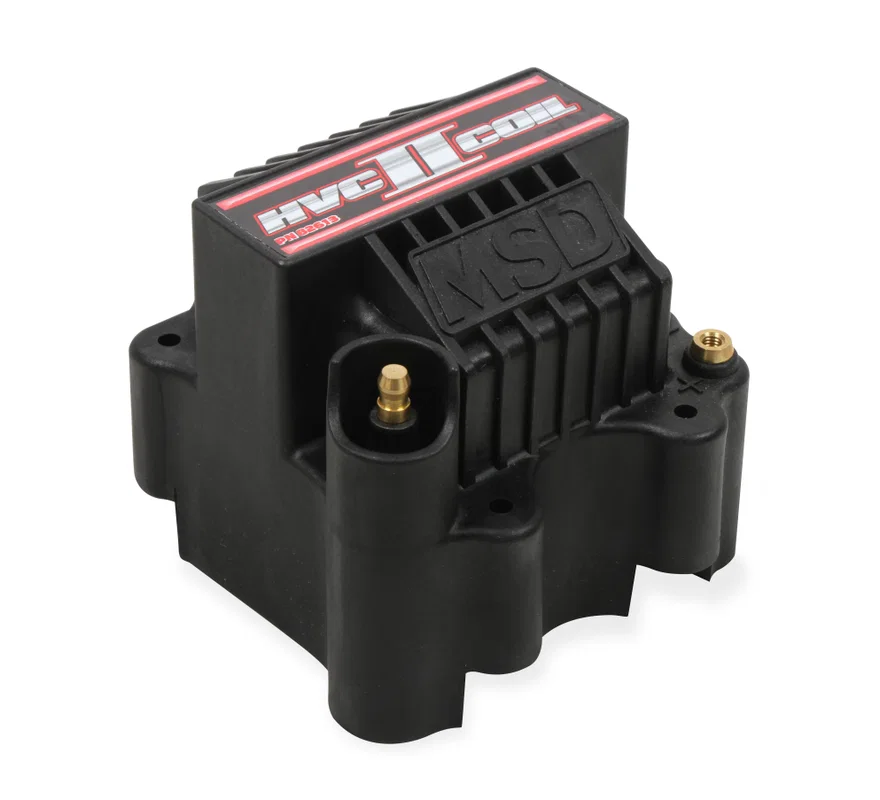

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.
