| Brand | MSD |
|---|---|

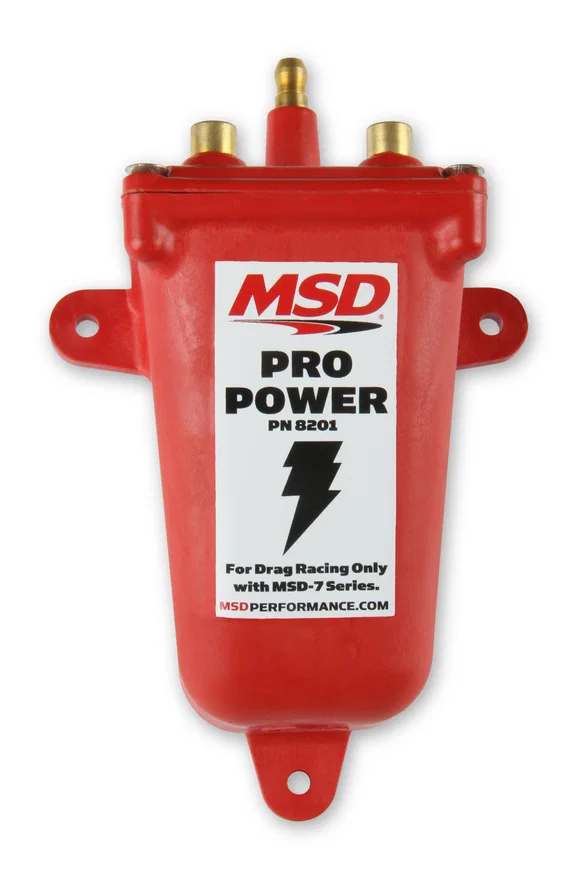

| Part type | Ignition Coil |
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Emission Code | 4 |
| Inductance (mH) | 1 |
| Maximum Voltage | 43,000 |
| part type | Ignition Coil |
| Peak Current | 800 mA |
| Primary Resistance | 0.03 Ohms |
| Product Type | Ignition Coil |
| Secondary Resistance | 240 Ohms |
| Spark Duration | 0.18 ms |
| Sub Category | Ignition Coil |
| Turns Ratio | 4.17 |
| Type | Drag Race / Short Duration Use |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132082018 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- For MSD 7 and 8 ignitions only, not for use on street vehicles
- Extremely low primary resistance
- Supplied with rubber shock mounts
- Housing is molded from a durable and high dielectric polyester
- High voltage coil designed for short duration applications only
- Primary and secondary windings are encased in Ciba polyurethane for vibration protection
