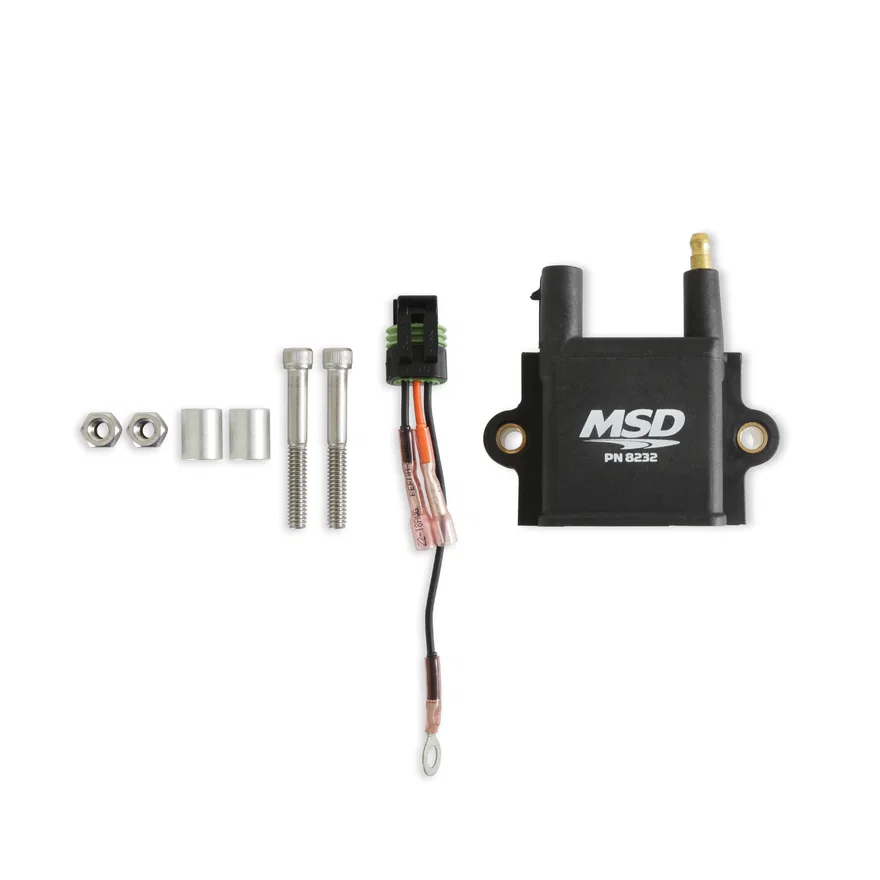

MSD Ignition Coil (Single Tower) - CPC Ignition Control - Black - Individual
Part # 8232SKU MSD8232
Universal fit
| Brand | MSD |
|---|---|
| Part type | Ignition Coil |
| Bolt Spacing | 2.90 in |
| Brand | MSD |
| Category | Ignition |
| Color | Black |
| Emission Code | 4 |
| Inductance (mH) | 3.7 |
| Maximum Voltage | 43,000 |
| Peak Current | 800 mA |
| Primary Resistance | 0.09 Ohms |
| Product Type | Ignition Coils |
| Secondary Resistance | 988 Ohms |
| Spark Duration | 0.38 ms |
| Spark Energy (mJ per spark) | 195 |
| Turns Ratio | 3.54 |
| Type | Drag Race / Short Duration Use |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132082322 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 85:1 turns ratio and lower primary resistance produce high voltage output
- Designed exclusively for the MSD CPC Ignition Control
- No CARB Exemption Order Number
- Dupont Rynite housing with a tall tower and isolated primary terminals
Description
For performance applications with multi-channel coil drivers, this Single Tower Blaster Coil is a great choice. The Coil will also top off your MSD DIS-HO Ignition system when it is set up for a coil-per-cylinder ignition system.
