| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Brand | MSD |
| C.A.R.B. EO # | D-722-2 |
| Category | Ignition |
| Color | Red |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 1 |
| Features | Rev Limiter |
| Grade Type | Performance |
| Height | 2 in |
| Ignition Type | Performance |
| Length | 7 in |
| Maximum RPM | 12,500 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 535 |

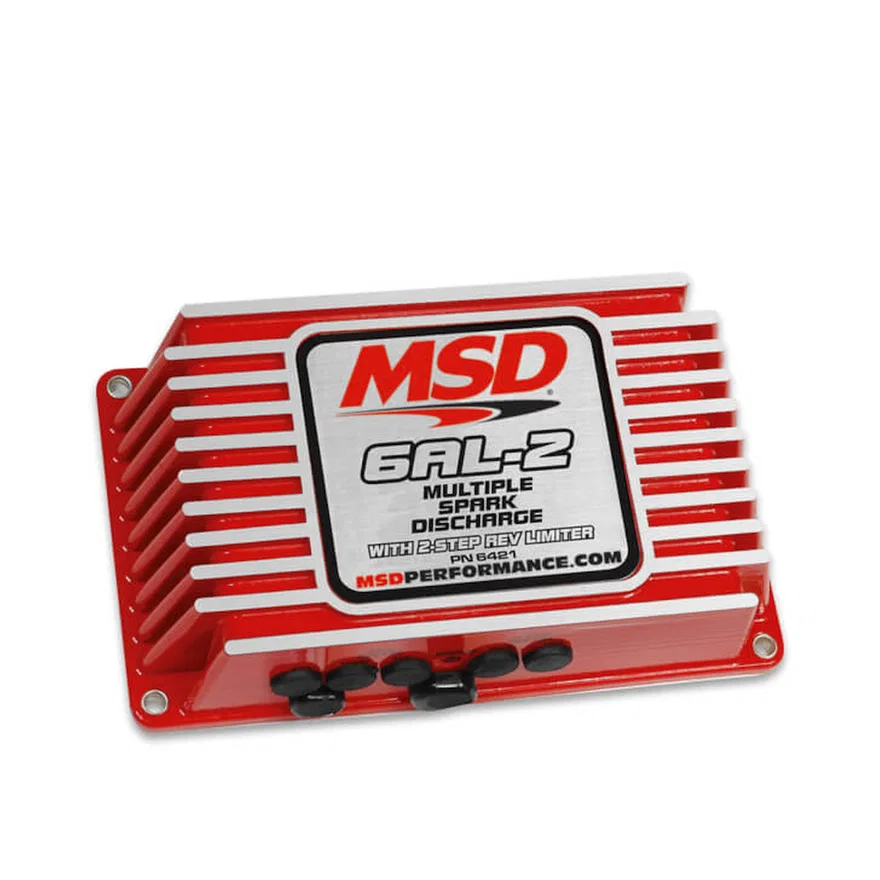

| Product Type | 6AL-2 Ignition Control Box |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135 |
| Sub Category | Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 5 |
| Voltage Required | 12-18 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 3 lbs., 7L x 4W x 2H |
| Width | 4 in |
| UPC / GTIN | 00085132064212 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- 12-18 Volts, Negative Ground
- Accepts Hall-effect, points and mag pickup triggers
- 12,500 RPM with 14.4 Volts
- Higher output with up to 135mJ of spark energy
- .7 Amp per 1,000 RPM
- Managed by an efficient digital processor
- All new housing, same reliable digital circuitry and performance
- Built-in 2-Step rev control adjustable with rotary dials
