| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Bluetooth | No |
| Brand | MSD |
| C.A.R.B. EO # | D-40-43 |
| Category | Ignition |
| Color | Red |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 1 |
| Features | Rev Limiter |
| Grade Type | Performance |
| Height | 1.825 in |
| Ignition Box Type | Digital |
| Ignition Type | Performance |
| Length | 8 in |
| MAP Sensor | No |
| Maximum RPM | 11,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 520-540 |

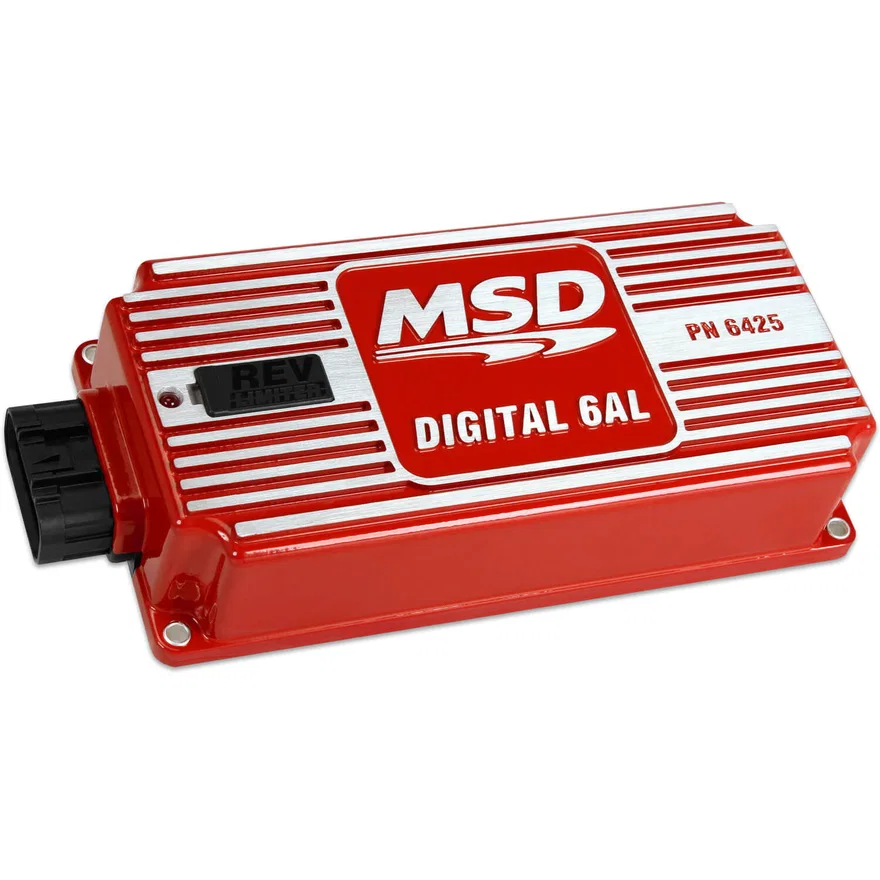

| Product Type | Digital 6AL Ignition Control Box |
| Rev Limiter | Yes |
| Rotary Dials | Yes |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135-145 |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 12 |
| Voltage Required | 12-15 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132064250 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- All wires exit through a locked, sealed connector
- Efficient components use less current to produce more power
- Built-in LED for system checks
- Compatible with 4, 6 or 8-cylinder engines
- Set an rpm limit with two rotary dials in 100 rpm increments
- 12-15 Volts, 7 Volt Start
- .7 Amp per 1,000 RPM
- High output with 530 volts and 135mJ of spark energy
Description
Inside the Digital 6AL, you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current. The Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing. This increased output combined with MSD's proven multiple spark series is a win-win situation.
