| Brand | MSD |
|---|---|
| Part type | Ignition Control Module |
| Bluetooth | No |
| Brand | MSD |
| C.A.R.B. EO # | D-40-43 |
| Category | Ignition |
| Color | Black |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Current Draw | 1000 |
| Emission Code | 1 |
| Features | Rev Limiter |
| Grade Type | Performance |
| Height | 1.825 in |
| Ignition Box Type | Digital |
| Ignition Type | Performance |
| Length | 8 in |
| MAP Sensor | No |
| Maximum RPM | 11,000 |
| Mount Type | Surface Mount |
| Mounting Hardware Included | Yes |
| Primary Voltage | 520-540 |

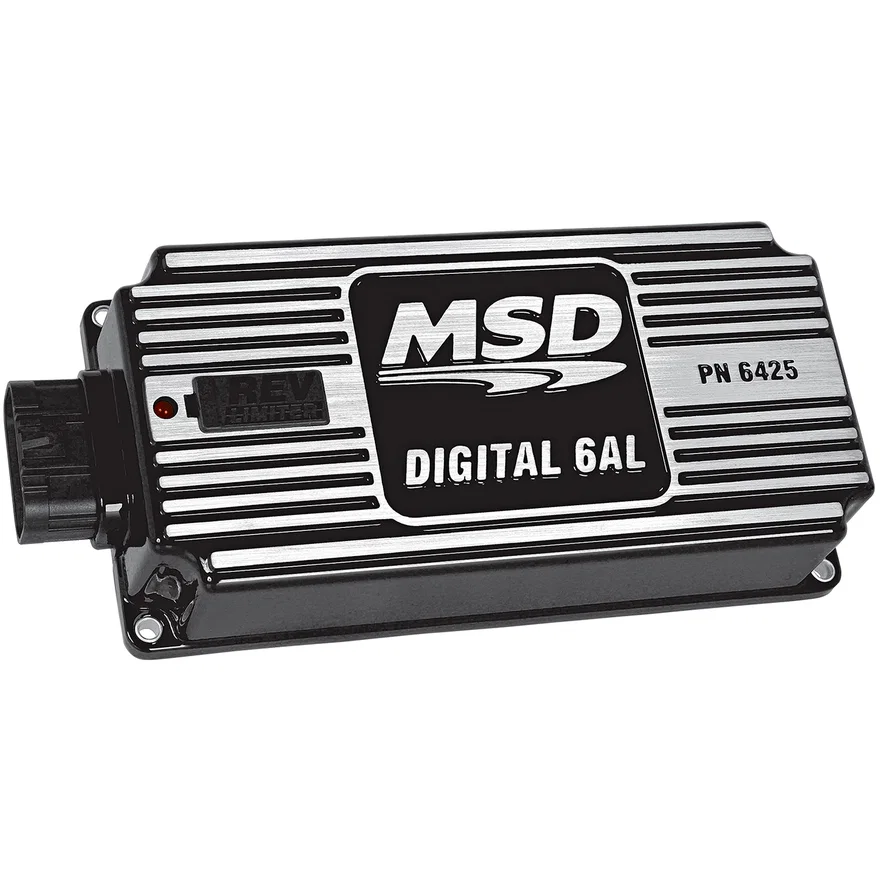

| Product Type | Digital 6AL Ignition Control Box w/Rev Control |
| Rev Limiter | Yes |
| Rotary Dials | Yes |
| Secondary Voltage | 45,000 |
| Spark Energy (mJ per spark) | 135-145 |
| Sub Category | Control Modules |
| Terminal Gender | Male |
| Terminal Quantity | 12 |
| Voltage Required | 12-15 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC / GTIN | 00085132642533 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
- High output with 530 volts and 135mJ of spark energy
- 12-15 Volts, 7 Volt Start
- Efficient components use less current to produce more power
- Compatible with 4, 6 or 8-cylinder engines
- .7 Amp per 1,000 RPM
- All wires exit through a locked, sealed connector
- Set an rpm limit with two rotary dials in 100 rpm increments
- Built-in LED for system checks
Description
The Digital 6AL is supplied with the wiring harness and the components you'll need for installation. The 6AL is also supplied with vibration mounts. Both ignitions are compatible on 4, 6 or 8-cylinder engines with 12-volt, negative ground electrical systems. They'll accept trigger inputs from breaker points, amplifiers and magnetic pickups.
